Summary of Contents for Rigol DSA800E Series

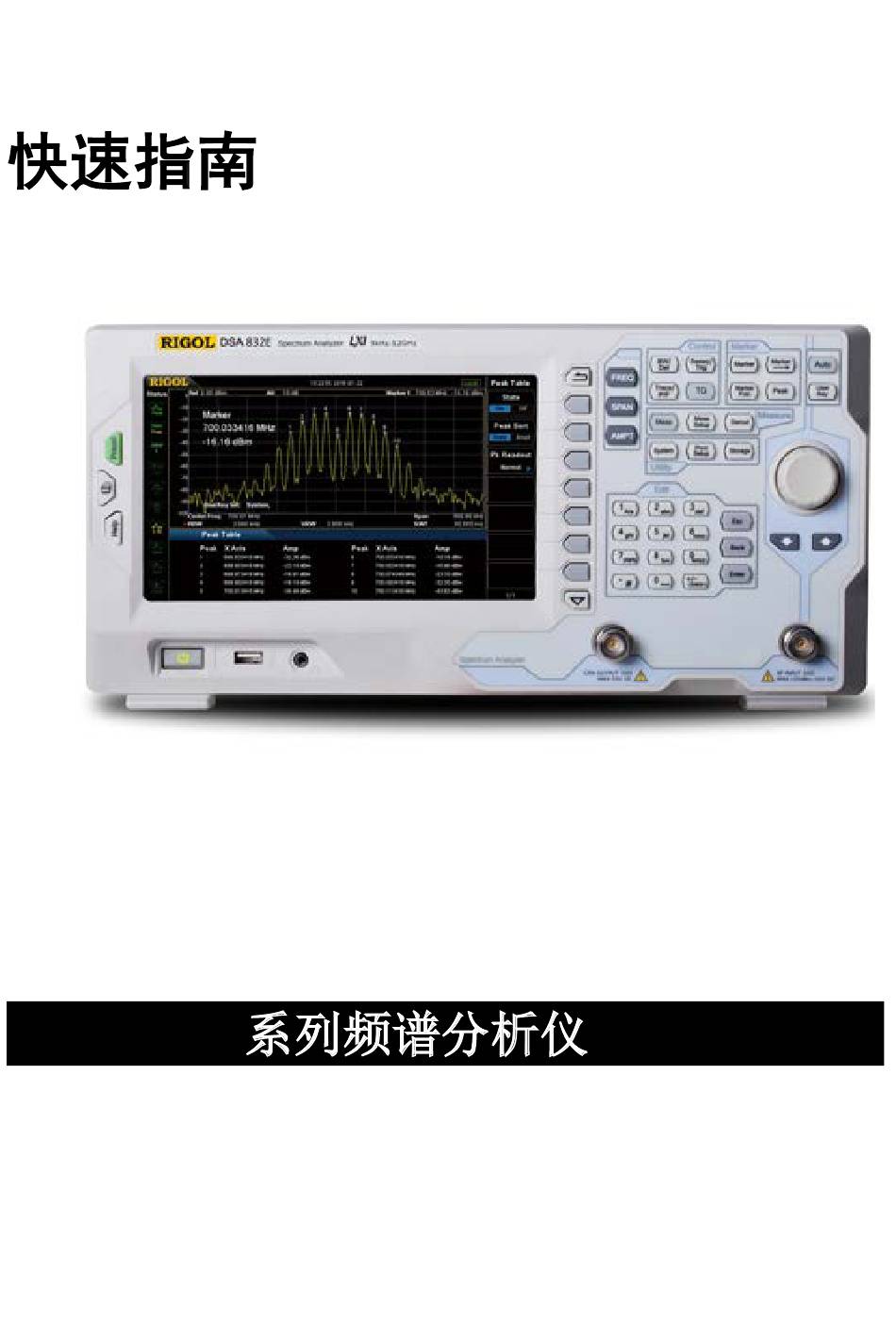

- Page 1 RIGOL Quick Guide © 2016 RIGOL TECHNOLOGIES, INC. All Rights Reserved. DSA800E DSA800E Series Spectrum Analyzer...
-
Page 2: General Inspection
If your instrument has been damaged during shipping, please contact your shipper and carrier for compensation. RIGOL will provide no free repair or replacement. Inspect the instrument If there is any mechanical damage or defect, or if the instrument does not pass electrical and mechanical tests, please contact your RIGOL sales representative. -
Page 3: General Safety Summary
General Safety Summary Use power cords designed for the instrument and authorized by local country. Make sure the instrument is grounded properly. Do not operate without covers. Use proper fuse. Avoid circuit or wire exposure. Do not operate with suspected failures. Keep proper ventilation. -
Page 4: Product Overview
Product Overview Featuring light weight, compact structure, low cost, and high performance, DSA800E series spectrum analyzers are portable spectrum analyzers designed for starters. It includes DSA832E one model. Configured with easy-to-operate keyboard, high-resolution color LCD display and various remote communication interfaces, they can be widely used in various fields, such as education, company research and development as well as industrial manufacture. -
Page 5: To Adjust The Supporting Legs
Following the start-up screen, the sweep curve is displayed. Press System Calibrate Cal Now and the instrument will perform self-calibration using the internal calibration source (for more DSA800E Series User’s Guide information, refer to the... -
Page 6: Using Notices
SCPI (Standard Commands for Programmable Instruments) command set through two ways: user-defined programming and PC software (such as RIGOL Ultra Sigma). When the instrument is in remote mode, the icon is displayed in the user interface and the front panel keys (except Esc) are locked. -
Page 7: For More Product Information
(you can download them from the RIGOL network): DSA800E Series User’s Guide : provide detailed introductions of the functions of this product; DSA800E Series Program m ing Guide : provide detailed introductions of the SCPI commands and programming of this product; DSA800E Series Datasheet : provide the main characteristics and specifications of this product;...
