- Page 1 RIGOL 快速指南 Quick Guide DSA800 © 2014 RIGOL TECHNOLOGIES, INC. All Rights Reserved. DSA800 系列频谱分析仪 DSA800 Series Spectrum Analyzer...
- Page 2 General Safety Summary Use power cords designed for the instrument and authorized by local country. Make sure the instrument is grounded properly. Do not operate without covers. Use proper fuse. Avoid circuit or wire exposure. Do not operate with suspected failures. Keep proper ventilation.

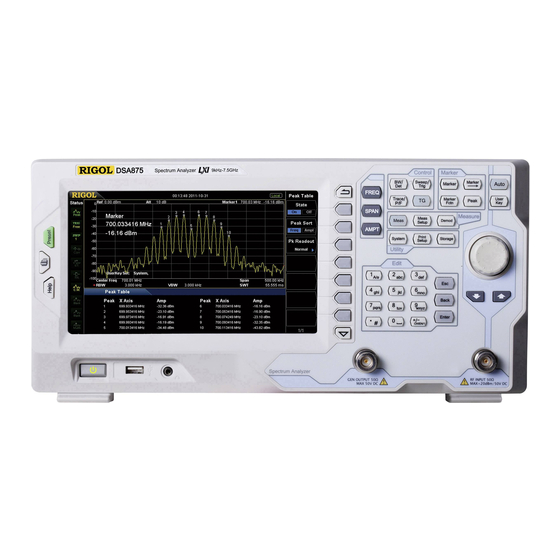

- Page 3 Product Overview DSA800 series spectrum analyzers which are small, light and cost-effective, are portable spectrum analyzers designed for starters. It mainly includes DSA815, DSA832 and DSA875 three models. Configured with easy-to-operate keyboard, high-resolution color LCD display and various remote communication interfaces, they can be widely used in various fields, such as education, company research and development as well as industrial manufacture.
- Page 4 Following the start-up screen, the sweep curve is displayed. Press System Calibrate Cal Now and the instrument will perform self-calibration using the internal calibration source (for more DSA800 Series User’s Guide information, refer to the...
- Page 5 SCPI (Standard Commands for Programmable Instruments) command set through two ways: user-defined programming and PC software (such as RIGOL Ultra Sigma). When the instrument is in remote mode, the icon is displayed in the user interface and the front panel keys (except Esc) are locked.
- Page 6 License. For more information of this product, please refer to the following manuals (you can download them from the RIGOL network): DSA800 Series User’s Guide: provide detailed introductions of the functions of this product; DSA800 Series Programming Guide: provide detailed introductions of the SCPI commands and programming of this product;...
