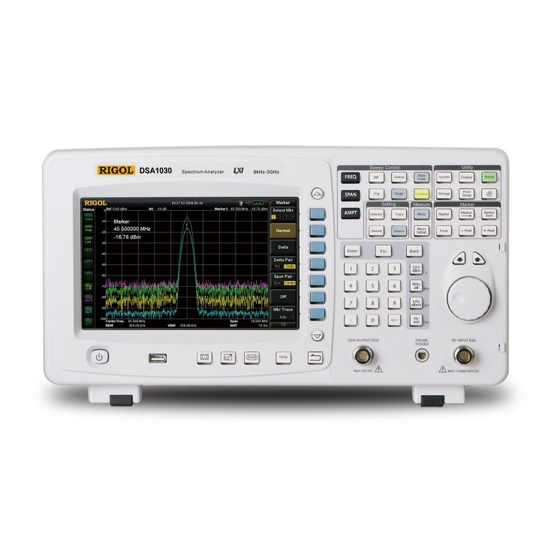

- Page 1 RIGOL User’s Guide DSA1000&DSA1000A Series Options&Accessories Feb. 2014 RIGOL Technologies, Inc.
-
Page 3: Guaranty And Declaration
Notices RIGOL products are protected by patent law in and outside of P.R.C. RIGOL Technologies, Inc. reserves the right to modify or change parts of or all the specifications and pricing policies at company’s sole decision. Information in this publication replaces all previously corresponding material. -
Page 4: Table Of Contents
RIGOL Content Guaranty and Declaration .................. 1 Content ......................2 DSA1000 Series Options&Accessories ..............3 DSA1000A Series Options&Accessories ............... 4 Preamplifier ..................... 5 Advanced Measurement Functions ..............6 3 GHz Tracking Generator ................. 11 USB-GPIB Interface Converter ................13 Front Panel Cover .................... 14 Desk Mount Instrument Arm ................ -
Page 5: Dsa1000 Series Options&Accessories
RIGOL DSA1000 Series Options&Accessories Name Descriptions Options Preamplifier DSA1030-PA (For DSA1030 only) Advanced Measurement Kit DSA1000-AMK (For DSA1030 only) 3 GHz Tracking Generator DSA1030-TG3 (For DSA1030 only) PC software for DSA Ultra Spectrum* USB-GPIB Interface Converter for USB-GPIB Instrument RF Demo Kit (Transmitter) -
Page 6: Dsa1000A Series Options&Accessories
RIGOL DSA1000A Series Options&Accessories Name Description Options 3 GHz Tracking Generator DSA1030-TG3 PC software for PC Ultra Spectrum* USB to GPIB Interface Converter for USB-GPIB Instrument RF Demo Kit (Transmitter) TX1000* Standard Accessories Power Cord USB Cable Front Panel Cover... -
Page 7: Preamplifier
RIGOL Preamplifier Turning on the preamplifier reduces the displayed average noise level in order to distinguish small signals from the noise when working with small signals. For the instruments supported option DSA1030-PA, pressing the front panel key AMPT, a corresponding menu will appear on the right of the screen. Then, press RF Preamp to turn on or off the preamplifier. -
Page 8: Advanced Measurement Functions
RIGOL Advanced Measurement Functions Option DSA1000-AMK provides plenty of advanced measurement functions including T-Power (Time domain Power), ACP (Adjacent Channel Power), Chan Pwr (Channel Power), OBW (Occupied Bandwidth), EBW (Emission Bandwidth), C/N Ratio, Harmo Dist (Harmonic Distortion), TOI (Third Order Intermodulation) and Pass/Fail. The measure mode can be Single or Continuous and you can control the measurement status: Restart, Pause or Resume. - Page 9 RIGOL 2. ACP (Adjacent Channel Power) Measures the power of the main channel and the adjacent channels and calculates the power difference between the main and each of the adjacent channels. When enabled, both the span and resolution bandwidth of the analyzer are adjusted to be smaller automatically.
- Page 10 RIGOL 4. OBW (Occupied Bandwidth) Calculates the power within whole bandwidth by integral operation and works out the occupied bandwidth by this value based on the specified power ratio. The center frequency difference between the measured channel and the analyzer will also be given in the measurement results.
- Page 11 RIGOL 6. C/N Ratio Measures the power of both the carrier and the noise within specified bandwidth and calculates their ratio. Offset Freq Noise BW Carrier BW 7. Harmo Dist (Harmonic Distortion) Measures each order harmonic power and THD (Total Harmonic Distortion) of carrier.
- Page 12 RIGOL 8. TOI (Third Order Intermodulation) Measures the parameters of the TOI production generated by two signals which have the same amplitude and similar frequency. The measured results include the frequency and amplitude of the Base Lower, Base Upper, 3rd Order Lower and 3rd Order Upper signals, as well as the Intercept of both the 3rd Order Lower and 3rd Order Upper signals.
-
Page 13: Ghz Tracking Generator
RIGOL 3 GHz Tracking Generator When the Tracking Generator (DSA1030-TG3 Option) is on, a signal with the same frequency with the current sweep signal will be outputted from the GEN OUTPUT 50 Ω terminal on the front panel. The power of the signal could be set through the menu. - Page 14 RIGOL Tracking Generator Specifications Item Condition Value Frequency Range 9 kHz to 3 GHz Output Power -20 dBm to 0 dBm, in 1 dB steps Output Flatness 10 MHz to 3 GHz, ±3 dB Reference to 50 MHz DSA1000&DSA1000A Options&Accessories...
-
Page 15: Usb-Gpib Interface Converter
RIGOL USB-GPIB Interface Converter By using RIGOL USB-GPIB interface converter, the spectrum analyzer could be connected to a GPIB Bus Controller on PC. That is, the analyzer has been expanded GPIB interface and could finish all sorts of work more easily through GPIB instructions. -
Page 16: Front Panel Cover
RIGOL Front Panel Cover The cover is provided to avoid damage to the front panel of the analyzer during transportation. Before putting your analyzer into action, remove the front panel cover by releasing latches at both sides, and sliding in the direction of the arrows as shown in the figure below. -
Page 17: Desk Mount Instrument Arm
RIGOL Desk Mount Instrument Arm Using an arm, the analyzer could be mounted on the workdesk to save your operation space. The height and angle of the instrument could be adjusted freely to acquire a supreme comfort and efficiency making measurement and observation conveniently. -
Page 18: Rack Mount Kit
RIGOL Rack Mount Kit The analyzer could be installed in 19-inch standard machine cabinet, shown below. 1. Kit Parts List Name Qty. Part Number Description Front Panel RM-DSA-1-01 Support Board RM-DSA-1-02 Left Plate RM-DSA-1-03 Right Plate RM-DSA-1-04 Fixed Figure RM-DSA-1-05... - Page 19 RIGOL 2. Installation Tool PH2 Phillips Screwdriver (recommended) DSA1000&DSA1000A Options&Accessories...
- Page 20 RIGOL 3. Space Requirements for Installation The following requirements must be fulfilled by the machine cabinet in which the instrument is mounted. Dimension of the machine cabinet must be standard 19-inch. At least 6U (266.7mm) space should be provided by the machine cabinet.
- Page 21 RIGOL 4. Installation Procedures A PH2 Phillips Screwdriver is recommended. Note that the instrument will be damaged or installed in rack incorrectly if the installation is not proper. Thus, only authorized operators can execute the installation operation. 1) Install the right and left palate: aim the detents of right and left plate at the openings on support board and insert respectively, then fix them using six M4 screws.
- Page 22 RIGOL 3) Fix the instrument: Fix a “Rear Support Bar” and two “Fixed Figure” on the instrument using four M4*8 Screws. Locate the instrument on proper location and then fixed the “Rear Support Bar” and “Fixed Figure” on the left/right board and the Support Board using eight M4*6 Screw.
- Page 23 RIGOL 5) Load into machine cabinet: mount the rack with instrument-fixed into a standard 19-inch machine cabinet respectively using four M6 screws and square nuts. 6) Notice: The rack holds a height of 6U, and the holes those in compliance with the arrow direction are the mounting holes for rack.
-
Page 24: Soft Carrying Bag
RIGOL Soft Carrying Bag The bag is designed by RIGOL for utility model measurement instruments. It has reasonable structure as adopting some improvements according to the instrument and practical application. It is in conformity with human engineering and could help you to carry instrument and its accessories easily with comforts and conveniences. - Page 25 RIGOL Held by shoulders Held by Neck&Waist Carried by Hand DSA1000&DSA1000A Options&Accessories...
-
Page 26: Other Accessories
Some differences may exist. Power Cord USB Cable Quick Guide CDROM* Front Panel Cover User’s Guide *Note: The CD contains . If there are some modifications on it, Please be according to the version on the RIGOL website. DSA1000&DSA1000A Options&Accessories...
