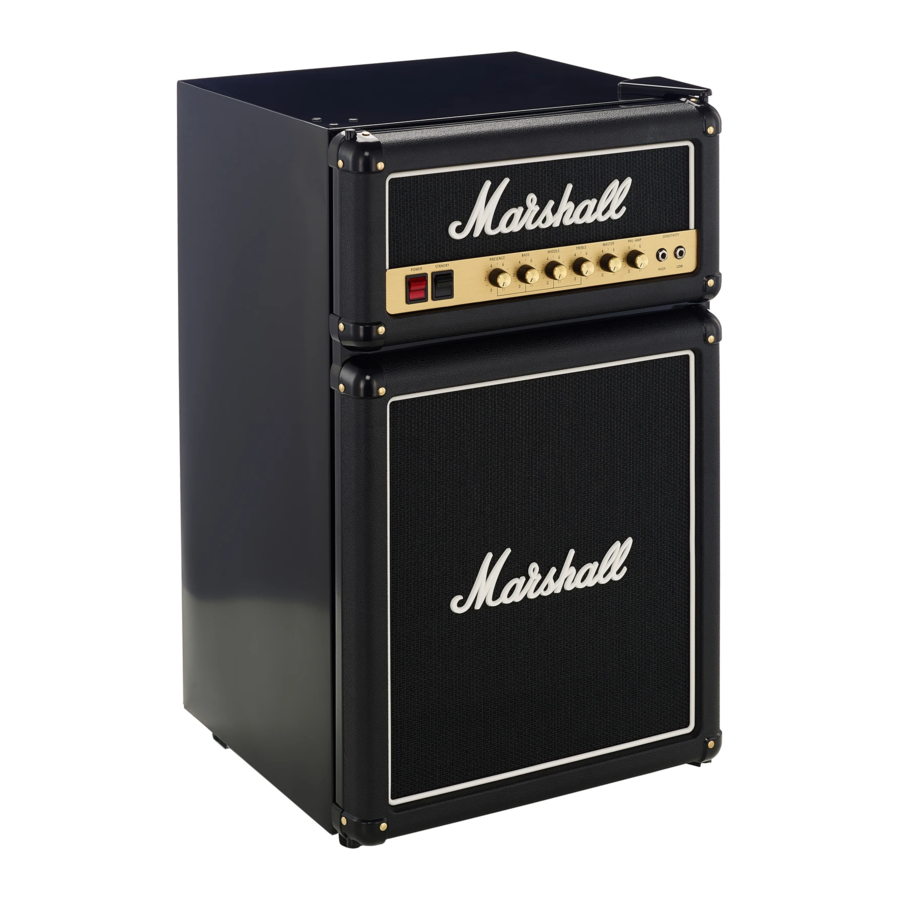

Marshall FRIDGE Manual

Use and maintenance

Recommended thermostat setting for ice making is position 5-7.

  • Fill 2/3 of the ice cube tray with cold water or any liquid suitable for freezing and place the tray on the bottom of the chiller compartment to freeze properly.
  • Dry the tray; otherwise it may stick to the bottom of the chiller.
  • The best method to get ice cubes out of the tray is to hold the tray under cold tap for a second.
  • To eject the ice cubes, place the tray over the ice bucket and twist slightly.

Use a dry cloth to dust off fret cloth fabric, very gently. Use a damp cloth for metal surfaces. Allow hot dishes to cool to room temperature before storing. Place food items in proper airtight containers. Failure to unplug the refrigerator before maintenance could result in electrical shock or personal injury.

  • It is recommended to clean your refrigerator monthly.
  • Before proceeding with cleaning and maintenance operations, make sure the power cord of the refrigerator is disconnected.
  • Turn the temperature control to "0", unplug the refrigerator and remove the food, shelves and trays.
  • Wash the inside surfaces with warm water and baking soda. The solution should be about 2 tablespoons of baking soda to a quart of water.
  • Wash the shelves and trays with a mild detergent solution.
  • The outside of the refrigerator should be cleaned with a soft, dry cloth.
  • Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage or discolour the interior.

The defrosting of your refrigerator should take place whenever ice build-up inside the chiller compartment reaches 1/4 inch (6mm) of thickness.

  • Set the thermostat dial to "0" position.
  • Unplug the refrigerator.
  • Remove everything from the refrigerator during defrosting.
  • Be sure the drip tray is in place!
  • Leave the door partially ajar during defrosting to speed up the process. Please Note: Water may drip out of the drip tray during the defrost cycle. Keep a towel in the bottom of the fridge to contain any water that overflows the drip tray.

When the defrosting has been completed, empty the drip tray and dry the inside of the refrigerator thoroughly. Plug the power cord in again and set the cooling control as required. It will take some time for the refrigerator to reach operational temperature. Reload your refrigerator when the inside temperature has cooled again.

Never use sharp or pointed instruments to remove ice from the chiller compartment. The chiller compartment contains refrigerated gas lines that if accidentally punched/pierced, will render the refrigerator inoperable and void the manufacturer's warranty.

You should minimise the number of door openings while the power is off. During power failures in excess of 2 hours, please take steps to protect your food. For short holidays, leave the control knob at its normal setting. During absences greater than three weeks:

  1. Remove all food.
  2. Disconnect the power cord from the electrical outlet.
  3. Clean the refrigerator thoroughly.
  1. Leave the door open to avoid possible formations of condensate, mould or odours.
  • Remove all loose items inside the refrigerator.
  • To avoid damaging the levelling legs, turn them all the way into the base.
  • The refrigerator should be in the upright position during transportation.
  • Tape the door if you judge necessary.
  • The refrigerator should be placed in the coolest area of the room; away from heat producing appliances and out of direct sunlight.
  • Cool down food to room temperature before placing in the refrigerator.
  • Wrap food properly and wipe containers dry before placing them in the refrigerator.
  • Organise and label food to reduce door opening and extended searches. Remove as many items as needed at one time and close the door as soon as possible.

This compartment is designed for production of ice cubes and short-term storage (3-4 days) of some commercially frozen foods. The temperature in this compartment does not get cold enough to freeze food safely for long periods and works best when the food is already frozen. The chiller door is susceptible to breaking due to excessive ice build-up. This part is not covered under your warranty. Defrost when ice builds up more than 1/4inch (6mm).

  1. Unplug the refrigerator. Be sure the unit power is OFF.
  2. Open the door. Remove the clear plastic light cover.
  3. Unscrew the LED light bulb in counter clockwise direction until it becomes loose.
  4. Once removed, install the new light and reinstall the cover.
  5. Plug the fridge in again.

Light Cover Removal
Light Cover Removal
Hold the LED cover handles and pull the cover up about 45 degrees. Remove the cover from the thermostat.

Light Cover Installation
Holding the LED cover at 45 degrees, place the mounting pin into the socket. Push the cover firmly into the thermostat.
 Light Cover Installation

Safety Instructions

  • This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.
  • This appliance is equipped with a cord that has a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
  • There is no power on the exterior control panel of the refrigerator. The switches do not light up; the knobs and jacks are aesthetic only.
  • The voltage should be limited within these ranges: 187V to 242V for UK, EU, Australia, China and 100V to 120V for North America or the main motor will be damaged.
  • Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.
  • Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
  • When a standard 2-prong wall outlet is encountered, it is the customer's responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
  • The appliance should be positioned so that the wall outlet is easily accessible.
  • The cord should be secured behind the refrigerator and not left exposed or dangling to prevent accidental injury.
  • Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.
  • Repair or replace immediately all power cords that have become frayed or otherwise damaged.
  • Do not use a cord that shows cracks or abrasion damage along its length or at either end.
  • When moving the refrigerator be careful not to damage the power cord.
  • If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

  • It is recommended that a separate circuit, serving only your refrigerator be provided. Use receptacles that cannot be turned off by a switch or pull chain.
  • Do not connect or disconnect the electric plug when your hands are wet.
  • Unplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
  • Do not attempt to repair or replace any part of your refrigerator unless it is specifically recommended in this manual.
  • All other servicing must be referred to a qualified technician.
  • Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.

  • To ensure proper ventilation, the front of the refrigerator must be completely unobstructed.
  • Position in a well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°C).
  • The refrigerator must be installed in an area protected from the weather or other external conditions, such as wind, rain, water spray or drips.
  • The refrigerator should not be located next to ovens, grills or othersources of high heat.
  • Do not kink or pinch the power supply cord of refrigerator.
  • Make sure that the pipes are not pinched, kinked or damaged during installation.
  • Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  • Do not damage the refrigerator circuit.
  • Do not use electrical appliances inside the food storage compartments of appliance, unless they are of the type recommended by the manufacturer.
  • Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
  • (UK specification only / Plug Type G) plug contains 13-amp fuse.
  • Risk of fire or explosion. Flammable refrigerant used. Consult repair manual/owner's guide before attempting to service this product. All safety precautions must be followed.
  • Risk of fire or explosion. Dispose of property in accordance with federal or local regulations. Flammable refrigerant used.
  • Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully. Flammable refrigerant used.

Do not use an extension cord: Use an exclusive wall outlet. Do not connect the refrigerator to extension cords together with any other appliance in the same wall outlet. Do not splice the cord.


Never clean the refrigerator parts with flammable fluids as this can cause a fire hazard or explosion. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.


Risk of child containment! Never allow children to operate, play with or crawl inside the appliance. Do not let children pull or play with the knobs or put them in their mouths. This appliance is not intended for use by persons (including children under 8) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

This appliance is intended to be used in household and similar applications such as:

  • Staff kitchen areas in shops, offices and other working environments
  • Hotels and other accommodation
  • Catering and hospitality applications

When disposing of a refrigerator:

  • Remove the door.
  • Leave shelves in place so that children are not able to climb inside.
  • Dispose of any refrigerator in accordance with local regulations/laws.
