USER GUIDE
3. Remove door by tilting forward and lifting door off
bottom hinge. Retain shoulder washers; they will be
reused.
4. Insert arrow clips into holes.
Remove bottom hinge:
1. Remove bottom hinge from cabinet using a 1/4"
socket.
2. Remove corresponding screws on opposite side of
cabinet. On some models there may be a nut behind
one or both screws on either side.
Install bottom hinge:
Install two or three screws, depending on model. Replace
nuts if used.

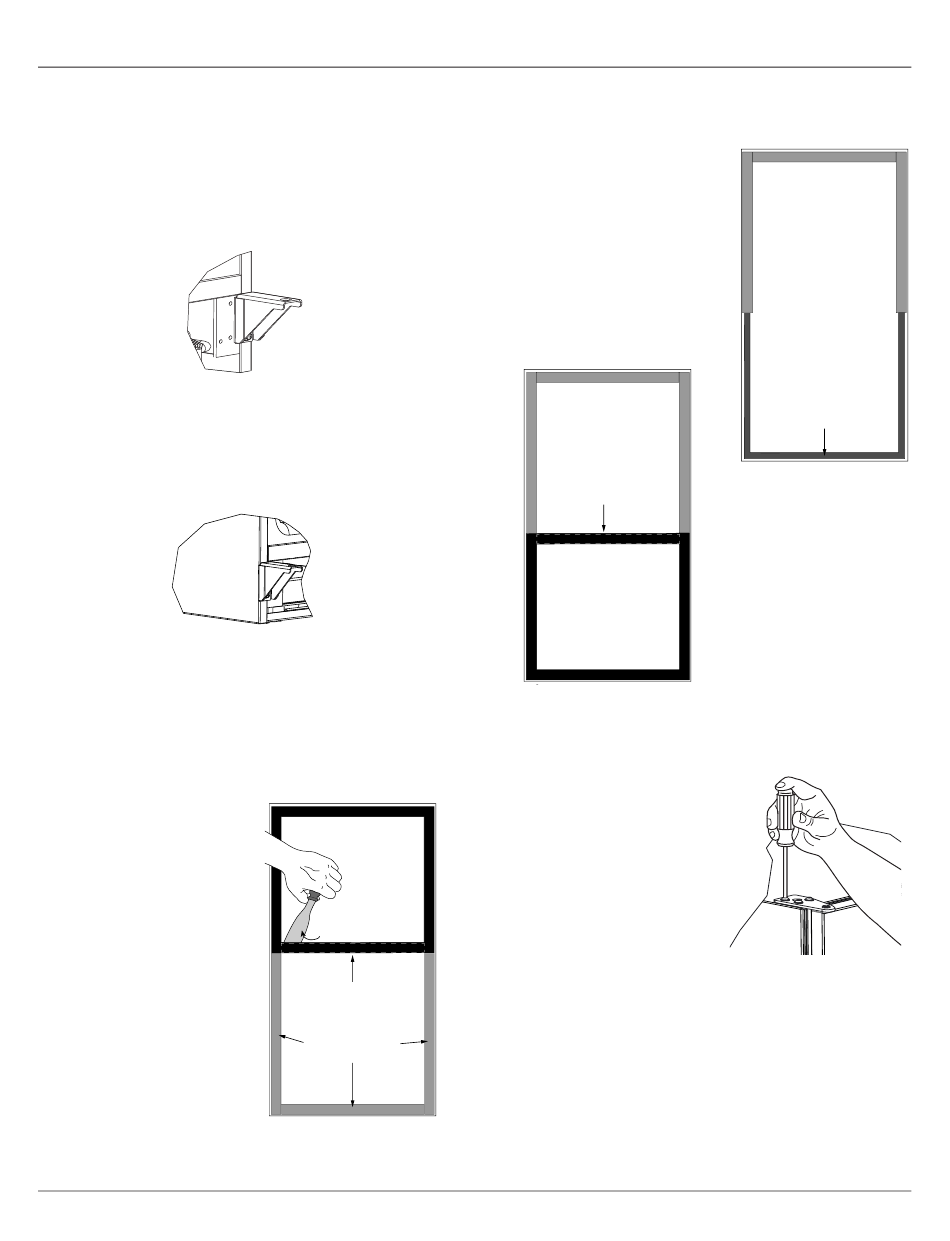

PREPARE DOOR FOR REINSTALLATION
Rotate gasket
1. With a flat tool, such as a
putty knife, gently pry up
beneath the gasket and
spacer until completely free
from the door surface.
2. Continue removing the
gasket by grabbing hold
and gently pulling outward,
exposing the gasket
channel.
Door Adjustments
Gasket With Spacer
Beneath
Gasket Channel
Filler
3. Remove the 3 pieces of
gasket channel filler and
reinstall on the opposite end
of door.
4. Install gasket into channel,
beginning at one corner and
pressing in firmly.
5. Press down on middle
horizontal portion of gasket
Press down firmly
Install top hinge and door:
1. Use alternate hing supplied
with unit and reinstall the
screws. Do not tighten.
2. Rotate the door 180
0
the door on to the bottom
hinge.
3. Align flat edge of the top
hinge with the outer edge of
the unit.
4. Tighten three screws.
Align and adjust the door:
Align and adjust the door (see DOOR ALIGNMENT AND
ADJUSTMENT).
Install the grille
20
until it
Gasket Channel
adheres to the door surface.
Note: It may be
necessary to apply
a strip of two-sided
tape for a firm
adhesion.
and lift
