ATEN 2K-0008 Installation Manual

2K-0008 2-in-1U Mounting Plate
Installation Guide
Package Contents
Qty Description
1 2K-0008 2-in-1U Mounting Plate
4
cable ties
1
M3*5 flathead screw set (4 pcs)
1
user instructions

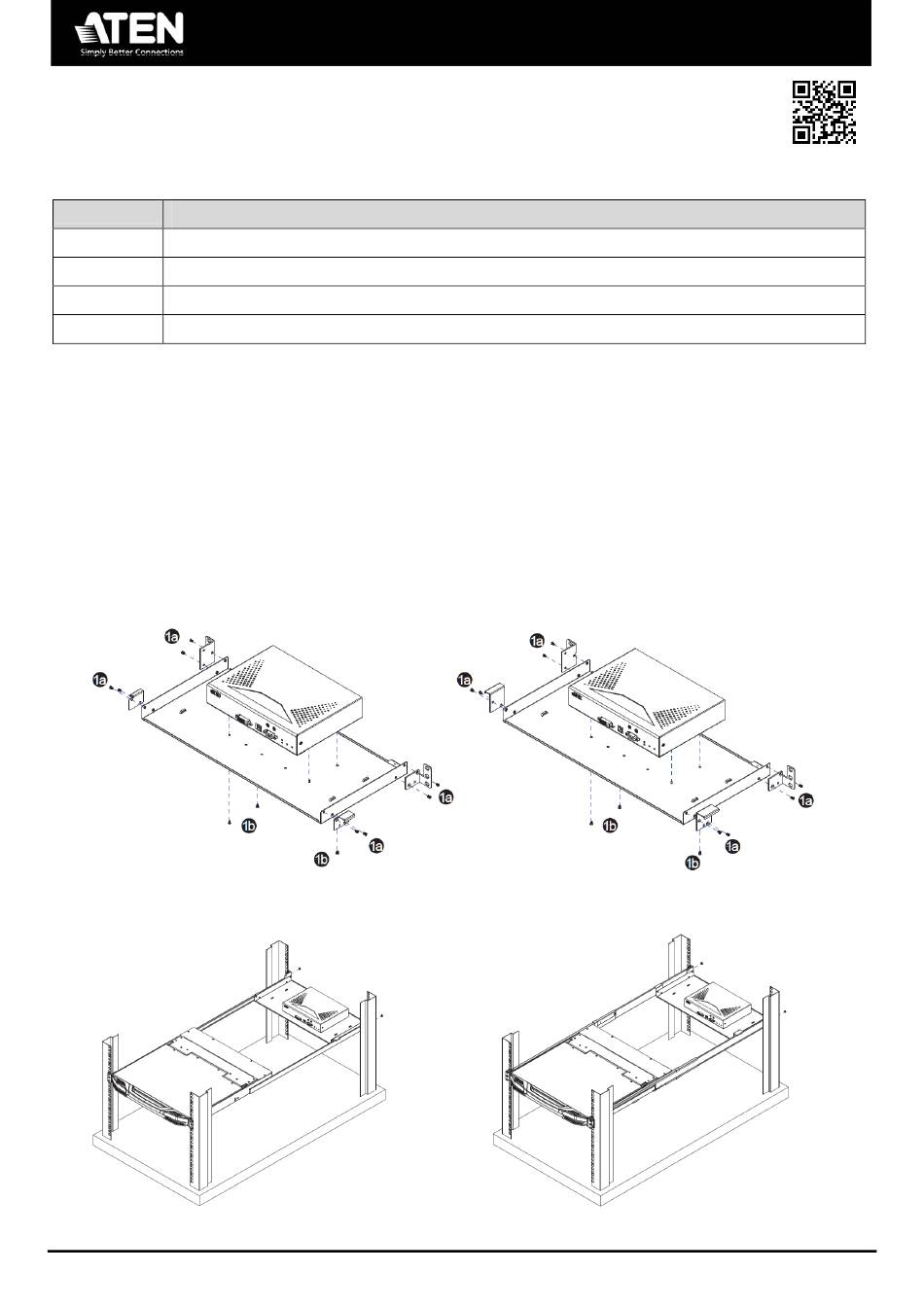

Installing the 2K-0008 with 2K-0001 and 2K-0002
1. (a) From the 2K-0001 / 2K-0002 package, locate the hind KVM stabilizing set (4 rack ears) and 8 M3*5 flathead
screws, and then attach the rack ears to the mounting plate using the 8 M3*5 flathead screws.
(b) First remove the screws from the bottom of the device you want to install as illustrated below in this step.
Attach the device you want to secure on the mounting plate using the screws you removed or the provided M3*5
flathead screws. The number of screws and the screw holes used may differ depending on the device that you
install. The example used for the illustration is KA8270. Please refer to the Mounting Alignments in this installation
guide for more information.
2K-0001
2. Screw the rail set to the rack using 2 M4*6 Type I screws from the 2K-0001 / 2K-0002 package.
2K-0001
All information, documentation and specifications contained in this media are subject to change without prior notice by the manufacturer.
Please visit our website to find the most up-to-date version.
2K-0002
2K-0002
1
MISC10000068 03/2025 V1.0
