KE Series Single Rack Mount Kit - 2X-031G

Installation Guide

This single rack mounting kit installs one KE Series unit in

1U of server rack space.

1. Remove the screws and plastic guards from the KE Series receiver unit.

2. Remove the bottom and side screws from the KE Series transmitter unit.

Package Contents:

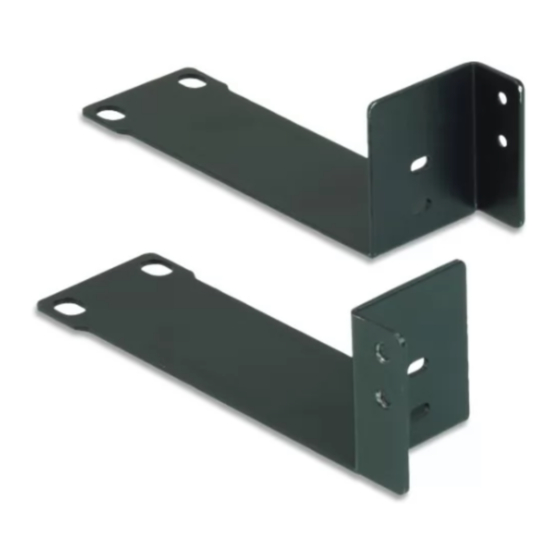

1 x right mounting bracket

1 x left mounting bracket

2 x flat head screws

2 x pan head screws

MISC00000271 03/2021 V3.0

Table of Contents

Do you have a question about the KE Series and is the answer not in the manual?

Page 1 2 x flat head screws 2 x pan head screws Installation: MISC00000271 03/2021 V3.0 1. Remove the screws and plastic guards from the KE Series receiver unit. 2. Remove the bottom and side screws from the KE Series transmitter unit.
Page 2 KE Series Single Rack Mount Kit - 2X-031G Installation Guide 3. Use the flat head and pan head screws provided to install the right and left mounting brackets. The example used in the diagram below is a KE Sereis transmiiter unit, the proceudre for connecting to a receiver unit is identical.
