ATEN 2X-051G Installation Manual

ATEN 2X-051G Installation Manual

Din rail mounting kit

Advertisement

DIN Rail Mounting Kit
Installation Guide

Package Contents

Qty
Description
1

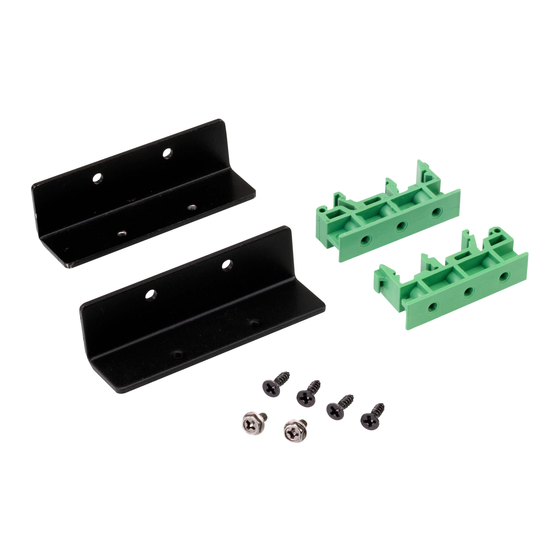

DIN rail kit containing 2 x DIN rail mount brackets and 4 x DIN rail
DIN rail kit containing 2 x DIN rail mount brackets and 4 x DIN rail bracket screws
1
L-shape mounting bracket
2
M3x6 screws
1
user instructions
The DIN Rail Mounting Kit allows you to attach and install an ATEN secure device server onto a DIN rail.
The DIN Rail Mounting Kit allows you to attach and install an ATEN secure device server onto a DIN rail.
The DIN Rail Mounting Kit allows you to attach and install an ATEN secure device server onto a DIN rail.
For a list of compatible models, please refer to the Compatible Products section on the 2X
For a list of compatible models, please refer to the
the ATEN website.

Parallel DIN Rail Mount

To mount a secure device server parallel to the DIN rail
mount a secure device server parallel to the DIN rail, refer to the instructions and diagrams below
1.
Using the DIN rail kit, attach the 2 DIN rail mount
Using the DIN rail kit, attach the 2 DIN rail mount brackets onto to the device, with the 4 screws enclosed, via its
center screw holes.
2.
Secure the device onto the DIN rail.
All information, documentation and specifications
Please visit our website to find the most up-to-date
2X-051G
2X
refer to the instructions and diagrams below.
brackets onto to the device, with the 4 screws enclosed, via its
.
ons contained in this media are subject to change without prior
date version.
MISC10000017 01/2021 V1.0
MISC10000017 01/2021 V1.0
section on the 2X-051G product page from
rior notice by the manufacturer.
