ATEN VE-RMK 1U Quick Start Manual

ATEN Video Extender Rack Mount Kit

Package Contents

1 x VE-RMK1U Frame
4 x 1U Mounting Plates
5 x Plastic Captive Screws
6 x Hexagon Head Screws
12 x Countersunk Head Screws

Installation

Different ATEN devices use different sets of screw holes on the mounting plate to install. Use
the table below to find out:
Whether if your ATEN device is built-in with rack ears
The alignment line that your ATEN device uses
Category Not Equipped with
Rack Ears
CE CE100
VE560, VE600A, VE602,
VE800A, VE803, VE810
VE
VE150A, VE170, VE172R,
VB802
Note: For details on models not listed in the table, refer to the VE-RMK 1U Installation Guide,
which can be downloaded from the product web page.

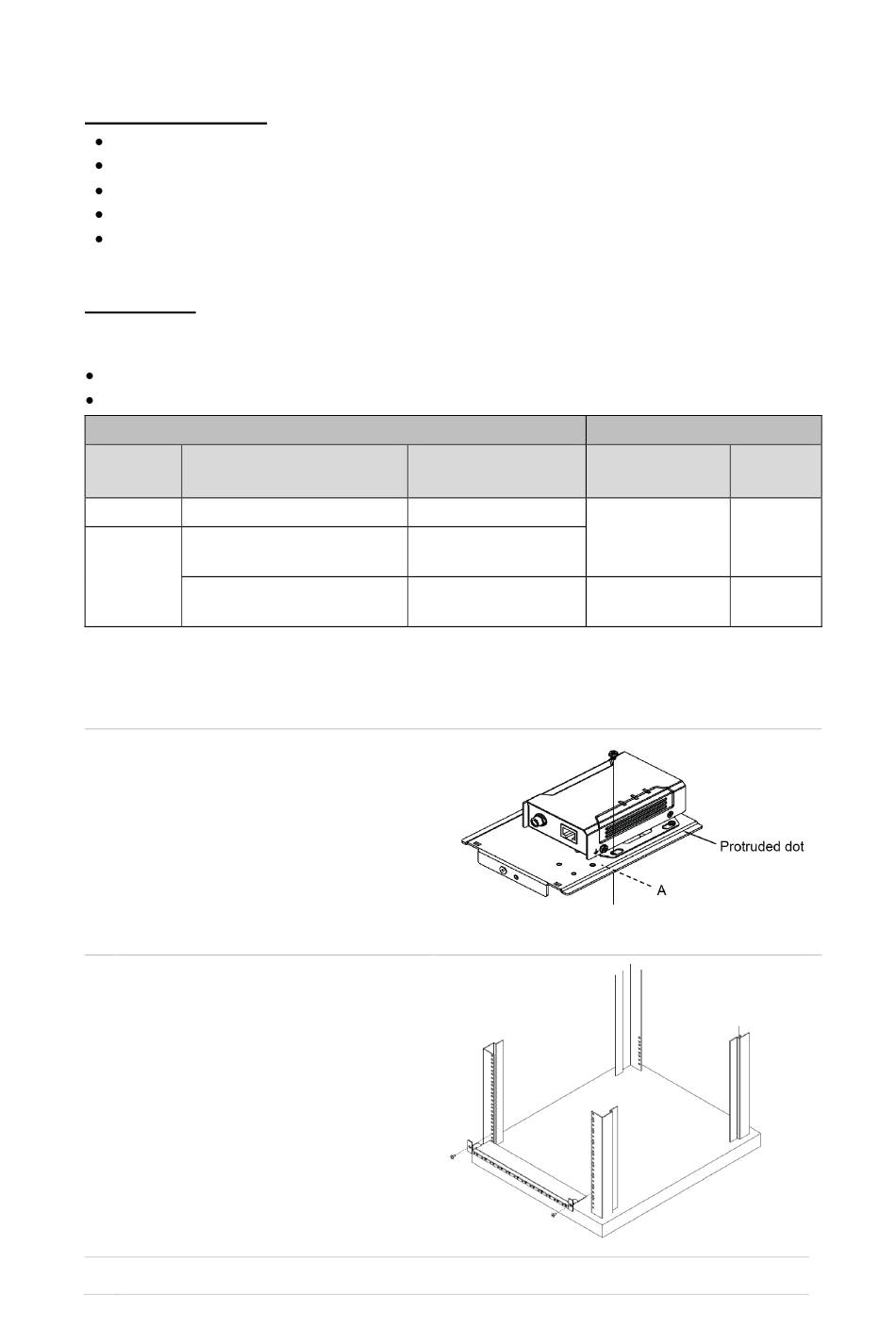

Installing Devices with Rack Ears

1. Align the device to its alignment line
as illustrated, latch one of the rack
ears onto the protruded dot on the
mounting plate, and secure the device
to the mounting plate using the
supplied hexagon head screw.
2. Position the VE-RMK 1U frame on the
front of your rack, align the holes in
the frame with the holes in the rack,
and then secure the frame to the rack
with self-prepared screws.
3. Follow the steps in Installing Devices to the Rack to finish the installation.
VE-RMK 1U Quick Start Guide
Models
Equipped with
-
VE601, VE801,
VE811, VE901
-
Note: Please make sure that all package
contents are present and that nothing is
damaged in shipping. If you encounter any
problems, contact your local sales
representative for more information.
Alignment
Rack Ears
Example: VE801
Mounting Plate
Max. No.
Line of Units.
Line A 4 units
Line B 3 units
