ATEN KE Series Installation Manual

Dual rack mount kit

Hide thumbs Also See for KE Series:

KE Series Dual Rack Mount Kit – 2X-021G

Installation Guide

This dual rack mounting kit installs two KE Series units side by side in 1U of server rack space.

Package Contents

Qty

Description

link bracket

right mounting bracket

left mounting bracket

phillips hex screws

flat screws

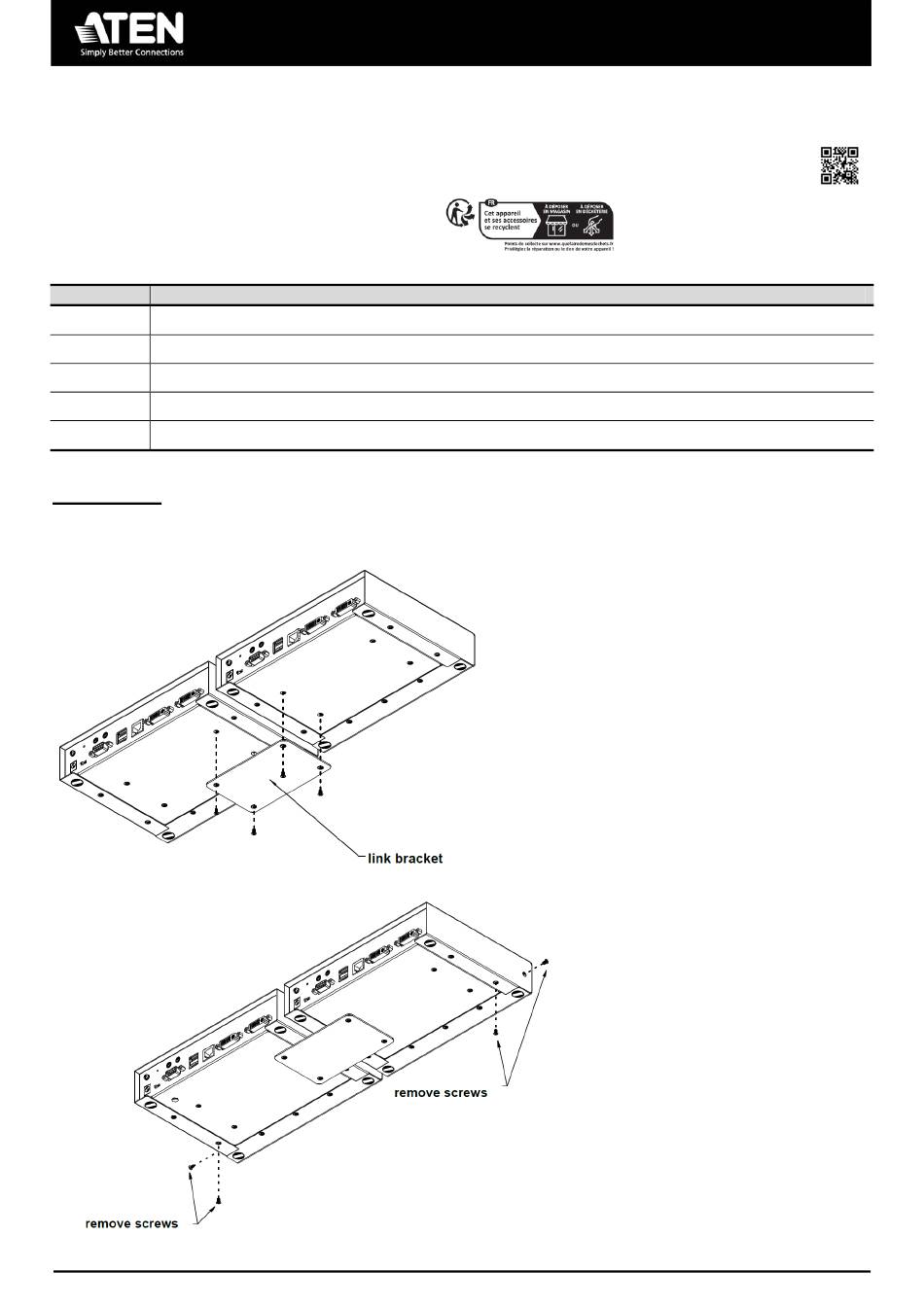

1. Remove four screws from the KE Series units and then use the same screws to secure the units together with the

link bracket.

Remove the bottom and side screws from each KE Series unit.

All information, documentation and specifications contained in this media are subject to change without prior notice by the manufacturer.

Please visit our website to find the most up-to-date version.

MISC00000270 06/2023 V4.0

Table of Contents

Do you have a question about the KE Series and is the answer not in the manual?

Page 1 Installation: 1. Remove four screws from the KE Series units and then use the same screws to secure the units together with the link bracket. Remove the bottom and side screws from each KE Series unit.
Page 2 Use the screws from step 2 and install the left and right mounting brackets. Screw the mounting brackets to the rack. All information, documentation and specifications contained in this media are subject to change without prior notice by the manufacturer. Please visit our website to find the most up-to-date version.
