Commend OD10 SH Manual

OD10 SH
Surface mount kit for an Intercom station OD10 TD.

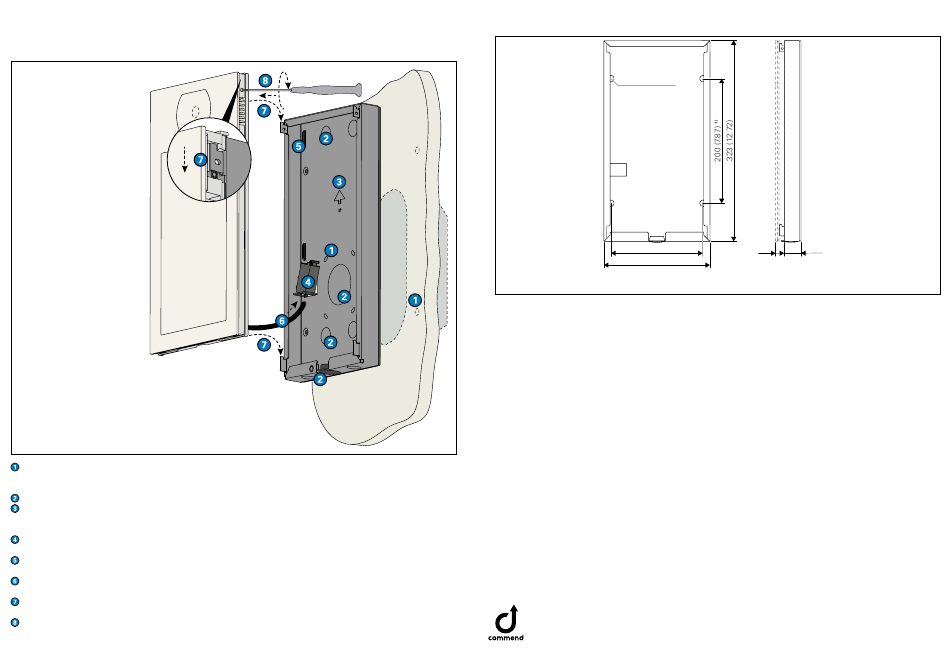

Mounting
NOTE: Wall mounting
• To ensure that the tamper detection functions correctly, the
magnet in the lower part of the mounting box must not be
covered, damaged or electromagnetically influenced.
• Due to the IP protection class requirements, considerable
force may need to be applied when pressing the Intercom
station onto the mounting box.
Drill four holes into the wall and insert dowels (see "Dimensions"). Alternatively, break out the four
small openings in the lower half of the mounting box in order to be able to screw the mounting box
to a 2-fold flush-mounted box (no wall holes are required for this).
Break out one of the provided cable openings depending on cable supply (from bottom or rear).
Screw the mounting box to the wall or to the 2-fold flush-mounted box with the arrow pointing
upwards. Guide the required cables through this entry (Ethernet, I/O and USB cable, if needed), run
the cables along the corners of the mounting box and adjust them to the desired length.
Assemble the Ethernet cable and connect it to the optional Ethernet socket. Insert the Ethernet
socket with its gib head on the right at the intended position and clip it on the left.
Fix the cables on the provided strain-relief using the cable ties included in extent of supply of the
OD10 TD.
Connect the cables to the Intercom station and the Ethernet socket (Ethernet, I/O and USB cable,
if needed).
Place the Intercom station on the mounting box so that the Intercom station attaches to every hook.
Press the Intercom station onto the mounting box and push it downwards to lock it.
Turn the two lateral locking screws clockwise out as far as it will go using the Tx08 screwdriver
(included in extent of supply of the OD10 TD). Check whether the Intercom station is fixed on the
mounting box.
Dimensions
Measuring units in mm (in), not to scale!
ø 5 mm (0.2 in)
148 (5.83)
1)
171 (6.73)
1) Dimensions for mounting holes
Mounting instructions
• This kit shall be installed by trained and qualified personnel only.
• Avoid exposing the OD10 TD to direct sunlight when installed.
• Install the Intercom station with a distance of min. 150 mm (6 in) to walls and other objects to
enable access to the locking screws (Tx08) and to not mask the loudspeaker openings on the sides.
• Only use recommended tools when installing this kit.
• Do not install this kit on unstable walls or on surfaces, which cannot support the weight of the
device.
• No water may penetrate into the mounting box. Therefore, make sure the mounting box is water-
proof.
• It is recommended to mount the optional Ethernet socket RJ45-MONT onto the open end of a Cat.
cable within a flush mount box.
• Make sure this kit is not subject to torsional forces (e.g. on uneven walls).
• Use proper cable glands for broken out cable opening (not included in extent of supply).
Recommended mounting height and position
• Mount the upper edge of the Intercom station approx. 1,650 mm
(65 in) from the finished floor. Adapt the mounting height to the
individual needs.
• For a barrier-free accessibility, it is recommended to mount the
Intercom station with enough space to walls or corners.
• When mounting the Intercom station, pay attention to the correct
camera angle in terms of accessibility, so that wheelchair users and
children can be detected by the camera.
Manufacturer's reference
For technical specifications, see the respective data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-OD10-SH, Version: 1.3/0220 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
18 25
(0.71) (0.98)
2)
2) OD10 TD
Extent of supply
• Mounting box
• 5 cable ties
• 4 mounting screws,
4 dowels (ø 6 mm/0.24
in), 4 flat washer and
4 (sealing) washer
• Short reference
