Commend ID8 SH Quick Start Manual

ID8 SH
Surface mount kit for a control desk of the id8 series.

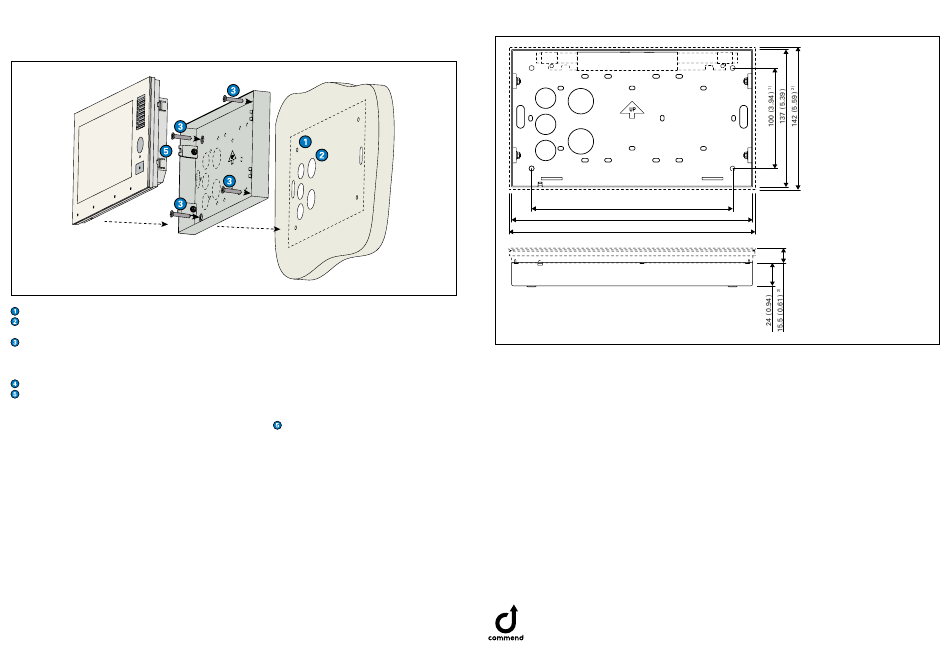

Mounting
Drill four holes in the wall (see "Dimensions") and insert the supplied dowels.
Cut out one of the provided cable entries depending on cable supply and guide the required cables
through those entries (Ethernet and USB or I/O cables, if needed).
Install the surface mount kit to the wall using the supplied mounting screws. The arrow "UP" must
point upwards.
(Optional) Mount the audio induction loop kit AFIL-USB on the mounting points (see short reference
"AFIL-USB").
Connect the cables to the device.
Insert the device into the mounting kit and press until the 4 locking latches on the right and left side
of the device lock in.
To unmount the device, push firmly onto the locking latches
If necessary, use a tool (i.e. a screwdriver) to push the locking latches in.
Recommended mounting height and position
• Mount the upper edge of the device approx. 1,650 mm (65 in) from the finished floor. Adapt the
mounting height to the individual needs.
• For a barrier-free accessibility, it is recommended to mount the device with enough space to walls
or corners.
• When mounting the device, pay attention to the correct camera angle in terms of accessibility, so
that wheelchair users and children can be detected by the camera:
62° (vertical) × 78° (horizontal)
and gently remove the device upwards.
Dimensions
Measuring units in mm (in), not to scale!
200 (7.87) 1)
240 (9.45)
245 (9.65) 2)
Extent of supply
• Surface mount kit
• 4 mounting screws
• 4 wall plugs (6 × 30 mm/0.24 × 1.18 in)
• Cable tie
• Short reference
Mounting instructions
• This kit shall be installed by trained and qualified personnel only.
• Only use recommended tools when installing this kit.
• Do not install this kit on unstable walls or on surfaces which cannot support the weight of the
device.
• No water may penetrate into this kit. Therefore, make sure this kit is waterproof towards the wall.
• Make sure this kit is not subject to torsional forces (e.g. on uneven walls).
Manufacturer's reference
For technical specifications, see the respective data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-ID8-SH, version: 1.0/0823 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
1) Dimensions for wall holes (ø 5 mm/0.2 in)
Dimensions of the device
2)
Required tools:
• Phillips screwdriver (PZD2)
