Commend XDX SHE Mounting Instructions

XDX SHE
Surface mount kit for an id5, od1 or od5.

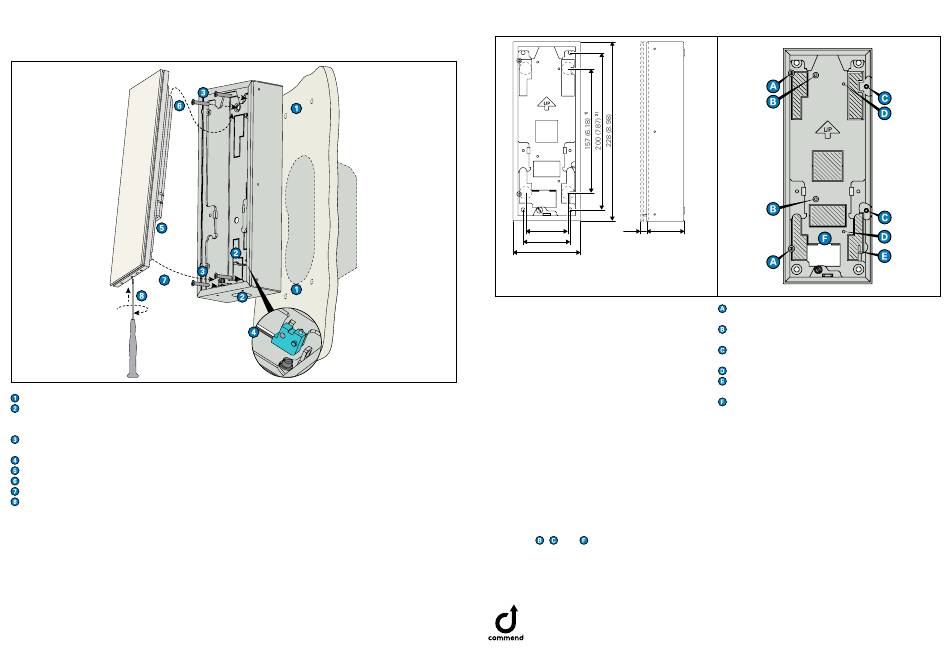

Mounting
Drill four holes in the wall (see "Dimensions") and insert the supplied wall plugs.
Break out one of the provided cable entries depending on cable supply (see also hatched areas at
"Mounting points"). Guide the required cables (Ethernet and USB cable, if needed) through the cable
entry.
Install the surface mount kit to the wall using the supplied mounting screws (the arrow "UP" must
point upwards).
If required, mount the accessories (not included in the extent of supply; see "Mounting points").
Connect the cables.
Insert the Intercom station at the top of the surface mount kit.
Press the Intercom station with its lower end firmly onto the surface mount kit.
Turn the locking screw anti-clockwise down as far as it will go using the Tx08 screwdriver (included
in the extent of supply of the Intercom station). Check whether the lower end of the Intercom sta-
tion is fixed on the surface mount kit.
NOTE: Disassembly
For disassembly, screw the locking screw clockwise as far as it will go, release the device from below
with some force and remove the device in a downward motion.
Recommended mounting height and position
• Mount the upper edge of the Intercom station approx. 1,650 mm (65 in) from the finished floor.
Adapt the mounting height to the individual needs.
• For a barrier-free accessibility, it is recommended to mount the Intercom station with enough space
to walls or corners.
• When mounting the Intercom station, pay attention to the correct camera angle in terms of
accessibility, so that wheelchair users and children can be detected by the camera (see data sheet
of the Intercom station).
Dimensions
Measuring units in mm (in), not to scale!
54 (2.13) 1) 3) 48
(1.89)
60 (2.36)
2)
86 (3.39)
1) Dimensions for cable feed-through (ø 14 mm/0.55 in)
2) Dimensions for mounting holes (ø 5 mm/0.2 in)
3) Dimensions of the Intercom station (see data sheet)
Mounting instructions
• This kit shall be installed by trained and quali-
fied personnel only.
• Only use recommended tools when installing
this kit.
• Do not install this kit on unstable walls or on
surfaces which cannot support the weight of
the device.
• No water may penetrate into this kit. Therefore,
make sure this kit is waterproof towards the
wall.
• Make sure this kit is not subject to torsional
forces (e.g. on uneven walls).
• Install the Intercom station with a distance of
min. 150 mm (6 in) downwards to enable ac-
cess to the locking screws (TX8).
• If a field cable is used, it is recommended to in-
stall an RJ45 crimp jack (e.g. MODJ8-8KUPPL)
at the open end of the field cable. Use a patch
cable to connect the device to the RJ45 crimp
jack.
• If an IP-BRIDGE is installed, the mounting
points , and cannot be used.
Manufacturer's reference
For technical specifications, see the respective data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-XDX-SHE, Version: 1.0/0322 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
Mounting points
Accessory can be mounted as follows:
AFIL-USB (to be installed with 2 M3 spacers and
4 M3x5 mounting screws)
EB3E2A-AUD (to be installed with 2 M3x8
mounting screws)
PA 25W POE-DC or POE-SPLIT (to be installed
with 2 M3x8 mounting screws)
IP-BRIDGE (to be installed with 2 M3 nuts)
T AMP-KIT (to be installed with 1 M3x8 mounting
screws; see illustration on the left)
MODJ8-8KUPPL (to be installed from the top)
Extent of supply
• Surface mount kit
• 4 mounting screws
• 4 wall plugs
• Mounting accessories (2 M3 spacers, 5 M3x5
mounting screws, 6 M3x8 mounting screws,
3 M3 nuts)
• Cat. 6 cable (0.3 m/11.8 in; not covered under
UL 62368-1)
• Short reference
Required tools
• Phillips screwdriver (PZD2)
• Nut driver (SW 5.5 mm/1.5 in)
• Torx screwdriver (TX10)
• Torx screwdriver (TX8; included in the extent of
supply of the Intercom station)
