Commend XDX SH Mounting Instructions

XDX SH
Surface mount kit for an id5, od1 or od5.
Mounting

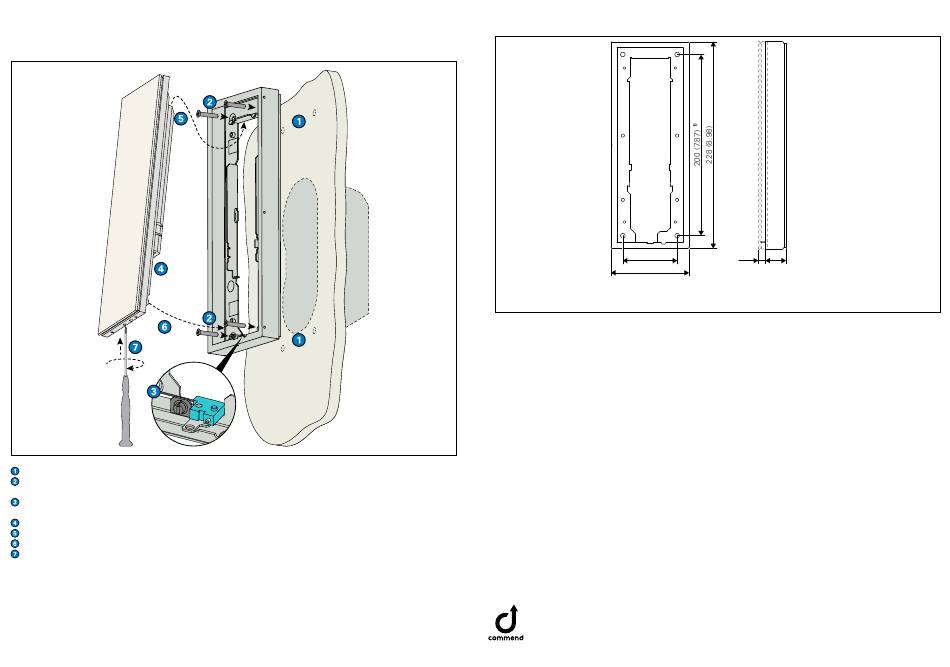

Drill four holes in the wall (see "Dimensions") and insert the supplied wall plugs.
Install the surface mount kit to the wall using the supplied mounting screws (the locking element
must be at the lower end).
If required, mount the tamper switch TAMP-KIT (not included in the extent of supply; for mounting
details, see respective short reference).
Connect the cables.
Insert the Intercom station at the top of the surface mount kit.
Press the Intercom station with its lower end firmly onto the surface mount kit.
Turn the locking screw anti-clockwise down as far as it will go using the Tx08 screwdriver (included
in the extent of supply of the Intercom station). Check whether the lower end of the Intercom sta-
tion is fixed on the surface mount kit.
NOTE: Disassembly
For disassembly, screw the locking screw clockwise as far as it will go, release the device from below
with some force and remove the device in a downward motion.
Dimensions
Measuring units in mm (in), not to scale!
60 (2.36) 1)
86 (3.39)
1) Dimensions for wall holes (ø 5 mm/0.2 in)
Dimensions of the Intercom station (see data sheet)
2)
Mounting instructions
• This kit shall be installed by trained and quali-
fied personnel only.
• Only use recommended tools when installing
this kit.
• Do not install this kit on unstable walls or on
surfaces which cannot support the weight of
the device.
• No water may penetrate into this kit. Therefore,
make sure this kit is waterproof towards the
wall.
• Make sure this kit is not subject to torsional
forces (e.g. on uneven walls).
• Install the Intercom station with a distance of
min. 150 mm (6 in) downwards to enable ac-
cess to the locking screws (TX8).
• If a field cable is used, it is recommended to in-
stall an RJ45 crimp jack (e.g. MODJ8-8KUPPL)
at the open end of the field cable. Due to space
limitations, install the MODJ8-8KUPPL in the
flush mount box. Use the patch cable included
in extend of supply to connect the device to the
RJ45 crimp jack.
Manufacturer's reference
For technical specifications, see the respective data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-XDX-SH, Version: 1.0/0322 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
23
2)
(0.91)
Recommended mounting height and position
• Mount the upper edge of the Intercom station
approx. 1,650 mm (65 in) from the finished floor.
Adapt the mounting height to the individual
needs.
• For a barrier-free accessibility, it is recommend-
ed to mount the Intercom station with enough
space to walls or corners.
• When mounting the Intercom station, pay
attention to the correct camera angle in terms
of accessibility, so that wheelchair users and
children can be detected by the camera (see
data sheet of the Intercom station).
Extent of supply
• Surface mount kit
• 4 mounting screws
• 4 wall plugs
• Cat. 6 patch cable (0.3 m/11.8 in; not covered
under UL 62368-1)
• Short reference
Required tools
• Phillips screwdriver (PZD2)
• Torx screwdriver (TX8; included in the extent of
supply of the Intercom station)
