Commend ID8 Series Mounting Instructions

ID8 FB
Gypsum wall/panel mount kit for a control desk of the id8 series.

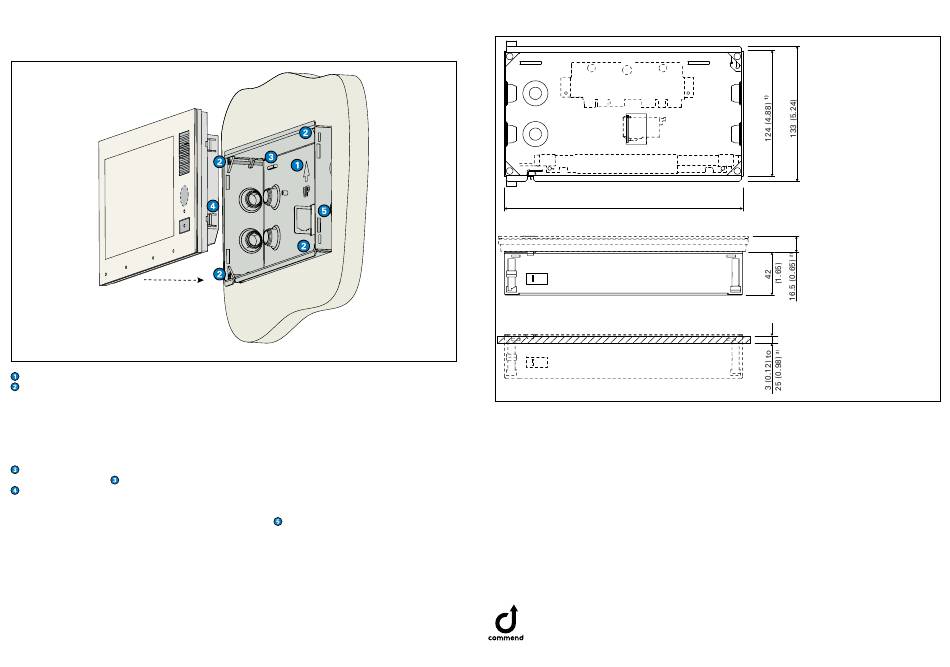

Mounting
Make sure the arrow on the mounting frame point upwards.
Install the mounting box to the wall as shown at "Dimensions" . Press the 4 claw clamps on the sides
of the mounting box outwards and tighten them using the corresponding screws (TX10).
(Optional) Mount the audio induction loop kit AFIL-USB on the mounting points (see short reference
"AFIL-USB").
(Optional) Mount the various accessories (e.g. EB3E2A-AUD) on the mounting points (see
corresponding reference).
(Optional) Place the CAT. crimp jack MODJ8-8KUPPL in the sheet metal flap and fixate using cable
ties. Mount the CAT. crimp jack onto the open end of a CAT. cable.
Connect the required cables (Ethernet and USB or I/O cables, if needed). Fixate the cables to the
sheet metal bridges using cable ties, if needed.
Insert the device into the mounting box and press until the 4 locking latches on the right and left
side of the device lock in.
To unmount the device, push firmly onto the locking latches
sary, use a tool (i.e. a screwdriver) to push the locking latches in.
Recommended mounting height and position
• Mount the upper edge of the device approx. 1,650 mm (65 in) from the finished floor. Adapt the
mounting height to the individual needs.
• For a barrier-free accessibility, it is recommended to mount the device with enough space to walls
or corners.
• When mounting the device, pay attention to the correct camera angle in terms of accessibility, so
that wheelchair users and children can be detected by the camera:
62° (vertical) × 78° (horizontal)
and gently remove the device. If neces-
Dimensions
Measuring units in mm (in), not to scale!
235 (9.25) 1)
Extent of supply
• Mount kit
• 4 cable ties
• Short reference
Mounting instructions
• This kit shall be installed by trained and qualified personnel only.
• Only use recommended tools when installing this kit.
• Do not install this kit on unstable walls or on surfaces which cannot support the weight of the
device.
• Protect the mounting box during plaster work by using the supplied signal cover.
• No water may penetrate into the mounting box. Therefore, make sure the mounting box is water-
proof.
• It is recommended to mount the optional CAT. crimp jack MODJ8-8KUPPL onto the open end of a
CAT. cable within a flush mount box.
Manufacturer's reference
For technical specifications, see the respective data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-ID8-FB, version: 1.0/0823 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
1) Cut-out for wall mounting
Dimensions of the device
2)
Wall/panel thickness
3)
Required tools:
• Torx wrench (TX10)
