Surface mount kit for an Intercom station of the Indoor series.
Mounting

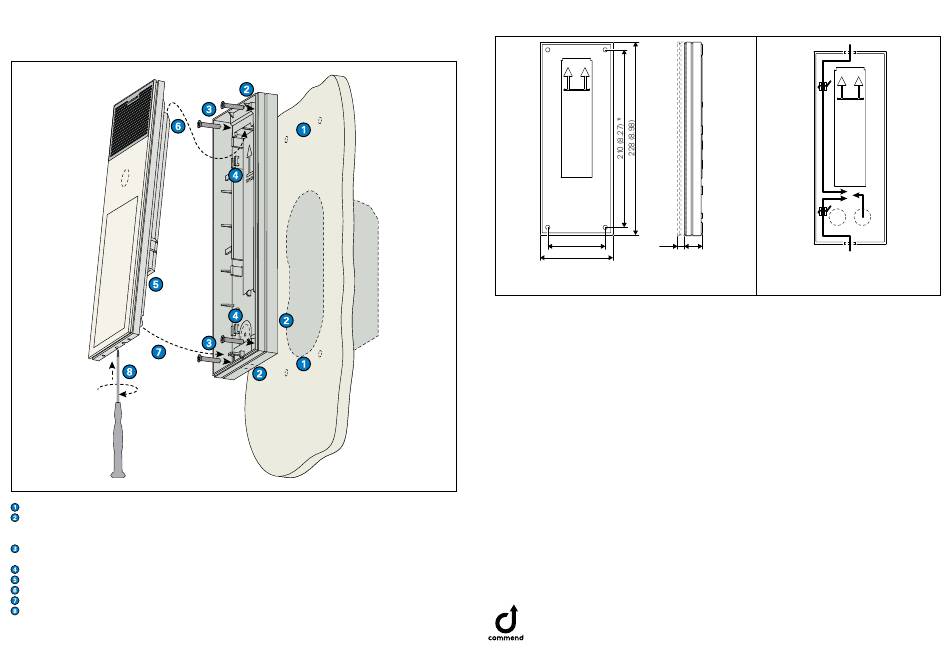

Drill four holes in the wall (see "Dimensions") and insert the supplied dowels.
Cut out one of the provided cable entries depending on cable supply (from top, bottom or rear, see
"Cable run") and guide the required cables through those entries (Ethernet and USB cable,
if needed).
Install the surface mount kit to the wall using the supplied mounting screws (the arrows must point
upwards).
Fix the Ethernet cable on the provided strain-relief using the supplied cable tie (see "Cable run").
Connect the cables.
Insert the Intercom station at the top of the surface mount kit.
Press the Intercom station with its lower end onto the surface mount kit.
Turn the locking screw anti-clockwise down as far as it will go using the Tx08 screwdriver (included
in extent of supply of the ID5 TD). Check whether the lower end of the Intercom station is fixed on
the surface mount kit.
Dimensions
Measuring units in mm (in), not to scale!
68 (2.68) 10 2)
1)
(0.39)
86 (3.39)
1) Dimensions for wall holes
(ø 5 mm/0.2 in)
Recommended mounting height and position
• Mount the upper edge of the Intercom station approx. 1,650 mm (65 in) from the finished floor.
Adapt the mounting height to the individual needs.
• For a barrier-free accessibility, it is recommended to mount the Intercom station with enough space
to walls or corners.
• When mounting the Intercom station, pay attention to the correct camera angle in terms of
accessibility, so that wheelchair users and children can be detected by the camera:
100° (vertical) x 125° (horizontal)
Extent of supply
• Surface mount kit
• 4 mounting screws
• 4 dowels
• CAT. 6 cable (0.3 m/11.8 in)
• Cable tie
• Short reference
Mounting instructions
• This kit shall be installed by trained and qualified personnel only.
• Only use recommended tools when installing this kit.
• Do not install this kit on unstable walls or on surfaces which cannot support the weight of the
device.
• No water may penetrate into this kit. Therefore, make sure this kit is waterproof towards the wall.
• Make sure this kit is not subject to torsional forces (e.g. on uneven walls).
• It is recommended to mount the optional CAT. crimp jack C-RJ45-MONT onto the open end of a
CAT. cable within a flush mount box.
Manufacturer's reference
For technical specifications, see the respective data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
