XDX FB
Gypsum wall/panel mount kit for an id5, od1 or od5.

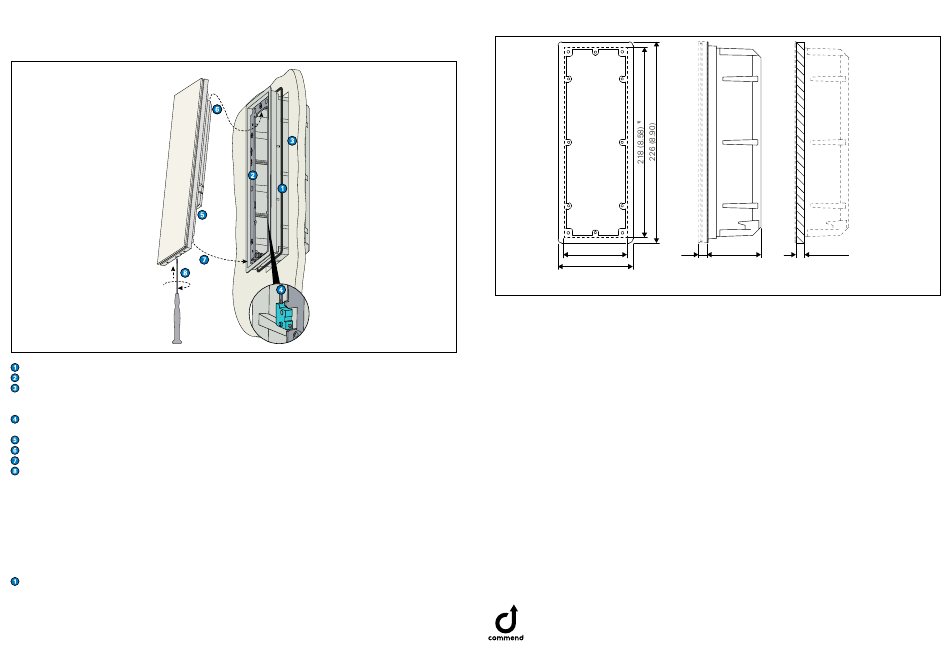

Mounting
If necessary, stick the supplied gasket onto the mounting box.
Make sure the arrows on the mounting frame point upwards.
Install the mounting box to the wall by means of the supplied drilling template. Press the four claw
clamps on the sides of the mounting box outwards and tighten them using the corresponding
screws (PZD2).
If required, mount the tamper switch TAMP-KIT (not included in the extent of supply; for mounting
details, see respective short reference).
Connect the cables.
Insert the Intercom station at the top of the mounting frame.
Press the Intercom station with its lower end onto the mounting box.
Turn the locking screw anti-clockwise down as far as it will go using the TX8 screwdriver (included
in the extent of supply of the Intercom station). Check whether the lower end of the Intercom sta-
tion is fixed on the mounting frame.
NOTE: Dismounting
For dismounting, screw the locking screw clockwise as far as it will go, release the device from below
with some force and remove the device in a downward motion.
NOTE: Mounting on brick walls
For mounting on brick walls, additionally the flush mount box XDX FBS is required (not included in the
extent of supply). In this case, mount the flush mount box XDX FBS in the wall and then continue with
.
Extent of supply
• Mounting box
• Gasket
• Drilling template/signal cover
• Short reference
Required tools
• Phillips screwdriver (PZD2)
• Torx screwdriver (TX8; included in the extent of
supply of the Intercom station)
Dimensions
Measuring units in mm (in), not to scale!
75 (2.95) 1)
84 (3.31)
2)
Cut-out for wall mounting
1)
Recommended mounting height and position
• Mount the upper edge of the Intercom station approx. 1,650 mm (65 in) from the finished floor.
Adapt the mounting height to the individual needs.
• For a barrier-free accessibility, it is recommended to mount the Intercom station with enough space
to walls or corners.
• When mounting the Intercom station, pay attention to the correct camera angle in terms of
accessibility, so that wheelchair users and children can be detected by the camera (see data sheet
of the Intercom station).
• The mounting box is based on a standard GIRA product. For further information, please see the of-
ficial documents on the GIRA website about product code 289800.
Mounting instructions
• This kit shall be installed by trained and qualified personnel only.
• Only use recommended tools when installing this kit.
• Do not install this kit on unstable walls or on surfaces which cannot support the weight of the
device.
• Protect the mounting box during plaster work by using the supplied signal cover.
• No water may penetrate into the mounting box. Therefore, make sure the mounting box is water-
proof, e.g. by using the supplied gasket.
• Install the Intercom station with a distance of min. 150 mm (6 in) downwards to enable access to the
locking screws (Tx08).
• If a field cable is used, it is recommended to install an RJ45 crimp jack (e.g. MODJ8-8KUPPL) at the
open end of the field cable. Use a patch cable to connect the device to the RJ45 crimp jack.
Manufacturer's reference
For technical specifications, see the respective data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-XDX-FB, Version: 1.1/0524 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
2) 60 (2.36) 5 (0.2) to
40 (1.57)
3)
Dimensions of the Intercom
station (see data sheet) Wall/panel thickness
3)
