DAPAudio TA-4.1700 User Manual

4-channel 1700w amp with dsp
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

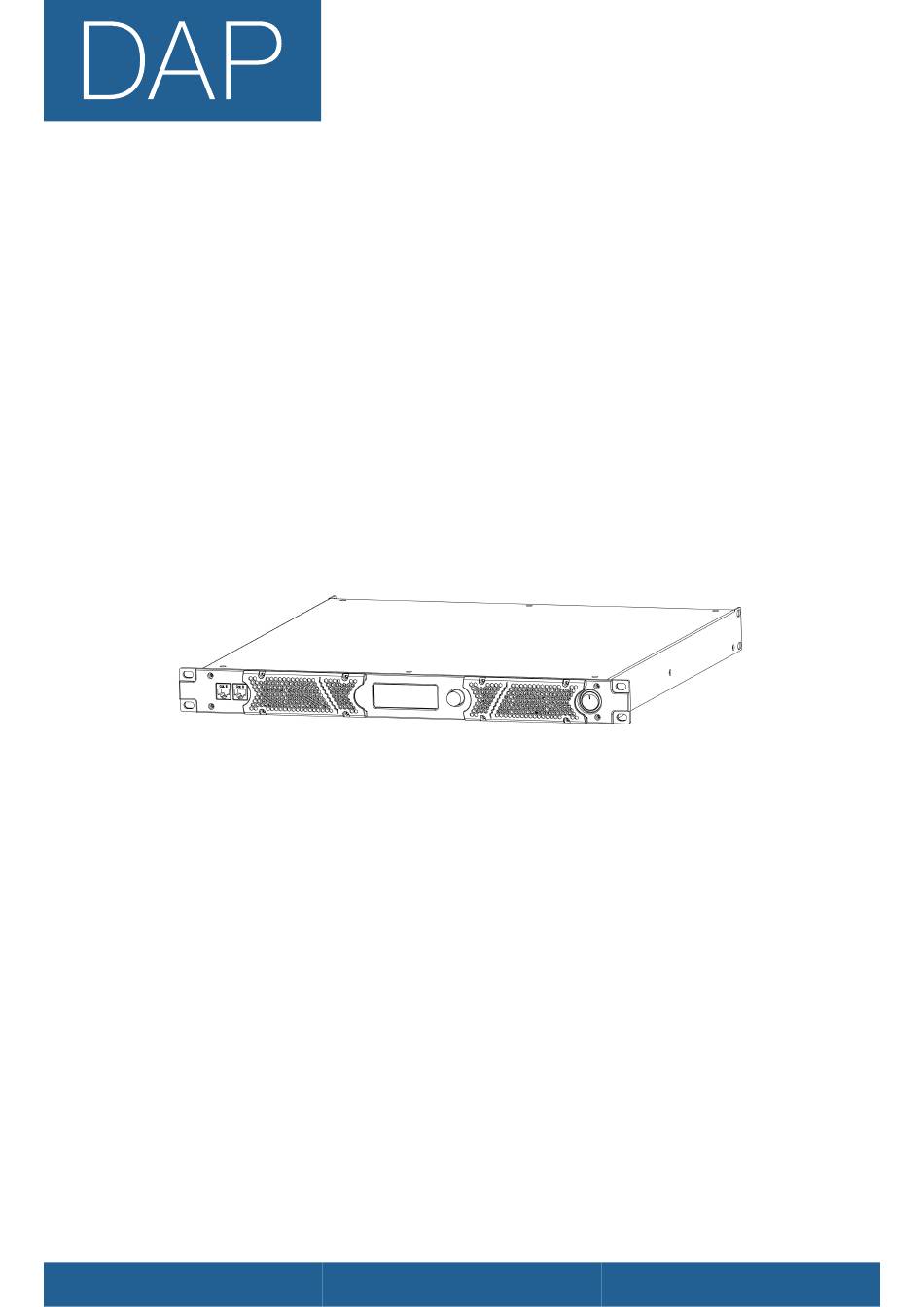

USER MANUAL
ENGLISH
V1.0
TA-4.1700
Product code: D4223
4-channel 1700W amp with DSP
c
c
c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA-4.1700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAPAudio TA-4.1700

Summary of Contents for DAPAudio TA-4.1700

  • Page 1 USER MANUAL ENGLISH V1.0 TA-4.1700 Product code: D4223 4-channel 1700W amp with DSP...
  • Page 2 TA-4.1700 Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.

  • Page 3: Table Of Contents

    TA-4.1700 Table of contents 1. Introduction ............................
  • Page 4 TA-4.1700 8.1. Safety Instructions for Maintenance ....................

  • Page 5: Introduction

    After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • DAP TA-4.1700 • • User manual • • 4x adhesive rubber feet 1.2.

  • Page 6: Symbols And Signal Words

    TA-4.1700 1.4. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury.

  • Page 7: Safety

    TA-4.1700 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. Warnings and Safety Instructions...
  • Page 8 TA-4.1700 Attention Power supply • • Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. • • Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the required power consumption of the device.

  • Page 9: Requirements For The User

    Description of the Device The DAP TA-4.1700 is a 4-channel DSP power amplifier for touring applications. It delivers 4x 1700 W into 4 Ω. It is capable of driving 2 Ω loads and can be used for 70 V systems and bridged for more power.

  • Page 10: Product Specifications

    TA-4.1700 3.3. Product Specifications Model: TA-4.1700 Inputs: Mono inputs 4  Transformer 70 V Mono input connector 3-pin XLR  Mono input gain range 21 dB Mono input impedance 2000 Ω Outputs: 2 ohms stable Yes  Output per channel into 8 ohms at 1 kHz 1000 W...
  • Page 11 TA-4.1700 Output delay (max.) 30 ms Input delay (max.) 100 ms Internal storage: User presets Yes  User presets capacity 40  Control and programming: Control mode PC software  Display LCD  Display size 3" Electrical specifications and connections: Power supply 100–240 V AC 50/60 Hz ...

  • Page 12: Dimensions

    TA-4.1700 3.4. Dimensions Figure 4 3.5. Optional Accessories and Software You can download the control software for the TA-4.1700 from the Highlite International website: • • D4223 Control software Product code: D4223...

  • Page 13: Installation

    TA-4.1700 Installation 4.1. Safety Instructions for Installation Attention Make sure that there is enough space for ventilation around the device. • • Do not block the ventilation openings. Without proper heat dissipation and air circulation, the internal components may overheat. This can result in product damage.

  • Page 14: Setup

    TA-4.1700 Setup The TA-4.1700 can be set up in stereo mode or bridge mode to change how the inputs are connected to the outputs. The mode can be changed through the control panel (see 6.6.3. AMP Mode on page 18) or the control software (see 6.7.5.

  • Page 15: Setup In Bridge Mode

    5.2. Setup in Bridge Mode You can set up the TA-4.1700 in bridge mode to connect 4 inputs to 2 outputs. You can bridge input 1 and 2 to output A and input 3 and 4 to output C. To complete the setup, follow the steps below: 01) Make sure that all devices are switched off.

  • Page 16: Connecting Multiple Devices

    5.3. Connecting Multiple Devices Multiple TA-4.1700 devices can be operated with the same PC software. For this, a router must be used that automatically assigns IP addresses. Each TA-4.1700 can be connected to the router directly, or the TA-4.1700 devices can be connected in a daisy chain.

  • Page 17: Operation

    • 6.3. Control Modes The TA-4.1700 can be operated with the PC software or with the control panel (05) and control knob (06). • • To operate the device with the control panel (05) and control knob (06), refer to Main Menu Options (see 6.6.

  • Page 18: Menu Overview

    TA-4.1700 6.5. Menu Overview Level 1 Level 2 Level 3 1. Preset (see 6.6.1. Preset on page 18) 40 presets 2. Volume (see 6.6.2. Volume on page 18) 1.Bridge OutA 2.Low-Z 3.Hi-Z 70V 1.Low-Z OutB 2.Hi-Z 70V 3. AMP Mode (see 6.6.3.

  • Page 19: Preset

    TA-4.1700 6.6.1. Preset In this menu you can select one of the 40 programmable presets and view the currently active preset. The presets can be defined through the PC software (see 6.7.6. Preset Menu on page 27). 01) Turn the control knob (06) to navigate through the presets.

  • Page 20: Settings

    TA-4.1700 6.6.4. Settings In this menu you can adjust general settings for the device. 01) Turn the control knob (06) to select one of the following 6 options: • • Standby: Put the amplifier in normal or standby mode •...

  • Page 21: Control Software

    TA-4.1700 6.7. Control Software The TA-4.1700 can be controlled through the AMP Controller software (see 3.5. Optional Accessories and Software on page 11). 01) Download and install the software. 02) Link one or more devices to your PC using an ethernet cable (minimum Cat. 5).

  • Page 22: Groups Menu

    TA-4.1700 6.7.2. Groups Menu Figure 9 In the Groups menu, you can control input channels across multiple channels and amplifiers. Click the Groups button on the Device List (see 6.7.1. Device List) to open the Groups menu. The Groups menu has the following options: •...

  • Page 23: Group Settings

    View the operating status of each channel in the group Note: A TA-4.1700 that is removed from the network remains in the groups view if it is still assigned to a group. To remove the TA-4.1700 from the Groups Set section, delete the group and restart the software.

  • Page 24: Volume

    TA-4.1700 In the main control interface, you can also change the amplifier name and IP address. Additionally, you can view the amplifier status (Status), lock the display of the amplifier (Display Lock) and put the amplifier in standby mode (Standby).

  • Page 25: Input Menu

    TA-4.1700 6.7.4. Input Menu Figure 12 Click the Input button on the right of the Main Control Interface, Output Menu or Preset Menu to open the Input menu. In the Input menu, you can do the following: • • Delay match the sound source and mute the input (see 6.7.4.1.

  • Page 26: Input Equalizer

    TA-4.1700 Click the Set button next to a channel on the Input Menu (see 6.7.4. Input Menu) to open the Source screen. In this screen you can do the following for each source channel: • • Set the sound source delay in increments of 0,01 ms (0–10 ms) •...

  • Page 27: Audio Routing And Mixing

    TA-4.1700 6.7.4.3. Audio Routing and Mixing Figure 14 In this part of the Input Menu you can connect the source inputs to the desired output channels, mute sources and adjust the volume levels. 6.7.5. Output Menu Figure 15 Click the Output button on the right of the Main Control Interface, Input Menu or Preset Menu to open the Output menu.

  • Page 28: Voltage Limiter

    TA-4.1700 6.7.5.1. Voltage Limiter Figure 16 In this menu you can set a voltage limiter for each channel. It includes a calculator for the attack and release times. The Auto option calculates an automatic time constant value based on signal detection.

  • Page 29: Speaker Configuration Menu

    TA-4.1700 6.7.6.1. Speaker Configuration Menu Figure 18 Click the Speaker Config button to open the speaker configuration menu. In this menu you can change the labels for the brand, family, model, output type and add any notes. • • Click any label to change its value.

  • Page 30: Device Mirror Menu

    TA-4.1700 6.7.6.2. Device Mirror Menu Figure 19 Click the Device Mirror button to open the Device Mirror Menu. In this menu you can create an image of your device and store it to your PC. You can also load existing mirrors from your PC to your device.

  • Page 31: Troubleshooting

    TA-4.1700 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.

  • Page 32: Corrective Maintenance

    TA-4.1700 8.2.2. Cleaning the Cooling Vents The device has two cooling vents on the front. These must be cleaned periodically to prevent the buildup of dust. To clean the cooling vents, follow the steps below: 01) Disconnect the device from the electrical power supply.
  • Page 33 TA-4.1700 Deinstallation, Transportation and Storage 9.1. Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. • • Let the device cool down before dismounting. • • Disconnect power supply before deinstallation. • • Always observe the national and site-specific regulations during deinstallation and derigging of the device.
  • Page 34 TA-4.1700   Product code: D4223...
  • Page 35 TA-4.1700 Product code: D4223...
  • Page 36 DAP is a brand of Highlite International B.V.
