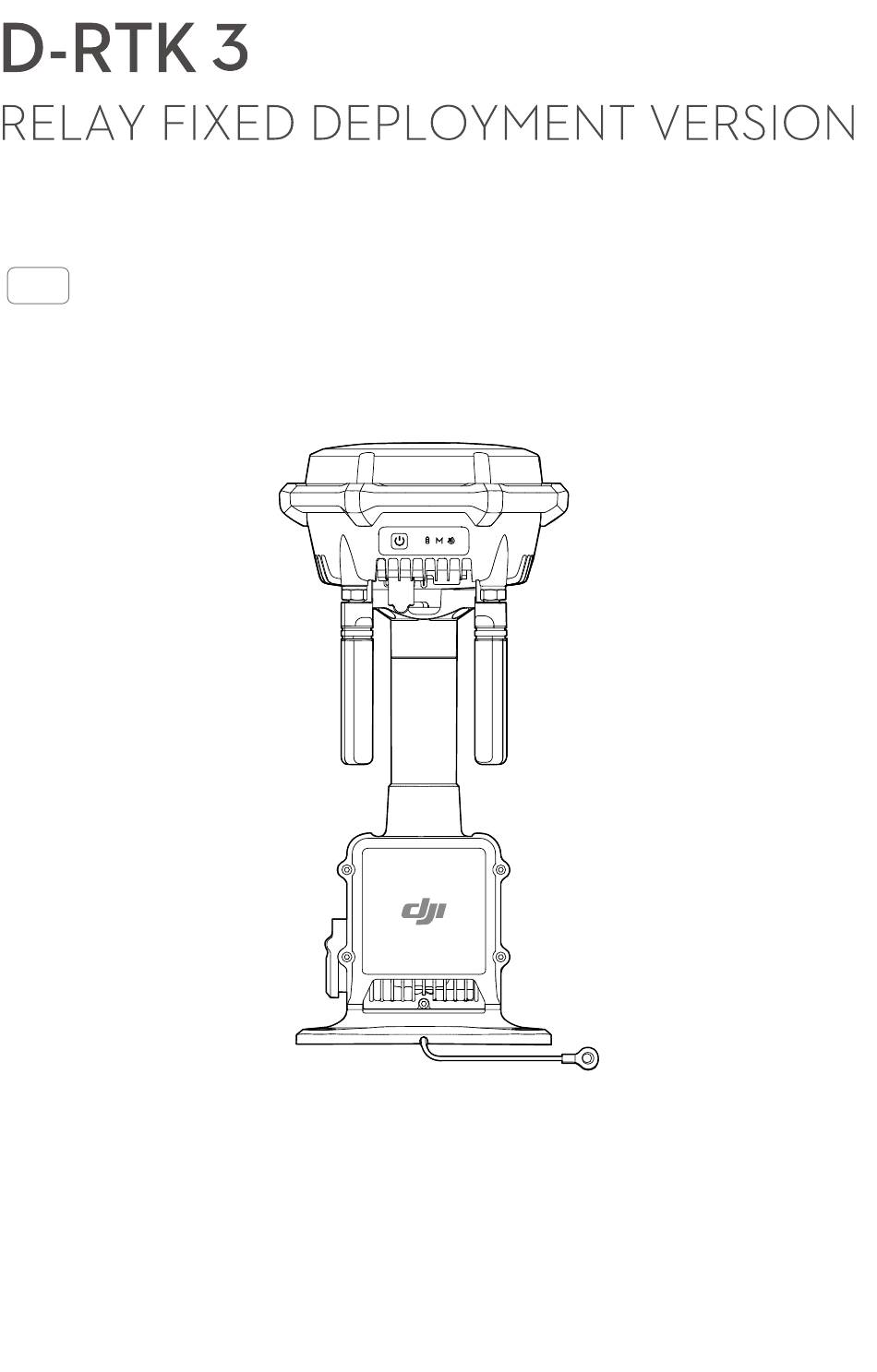

- Page 1 User Manual v1.0 2025.02...
-
Page 2: Using Dji Flighthub
This document is copyrighted by DJI with all rights reserved. Unless otherwise authorized by DJI, you are not eligible to use or allow others to use the document or any part of the document by reproducing, transferring, or selling the document. Users should only refer to this document and the content thereof as instructions to operate DJI products. -
Page 3: Using This Manual
D-RTK 3 Relay Fixed Deployment Version User Manual Using this Manual Legend Reference Important Hints and Tips Read Before Use Watch all the tutorial videos first, then read the documentation included in the package and this user manual. If you have any questions or issues during installation and use of this product, contact the official support or an authorized dealer. -
Page 4: Download Dji Assistant 2
D-RTK 3 Relay Fixed Deployment Version User Manual Download DJI Assistant 2 ™ Download DJI ASSISTANT 2 (Enterprise Series) at: https://www.dji.com/downloads/softwares/assistant-dji-2-for-matrice © 2025 DJI All Rights Reserved. -
Page 5: Table Of Contents
D-RTK 3 Relay Fixed Deployment Version User Manual Contents Using this Manual Legend Read Before Use Video Tutorials Download DJI Enterprise Download DJI Assistant 2 Product Overview Overview Supported Product List Safety Precautions Before Installation Safety Precautions Before Installation Notices... - Page 6 D-RTK 3 Relay Fixed Deployment Version User Manual Connecting the Ethernet Cable Configuration Notices Power Button Indicators PoE Connection Indicator Power Indicator Mode Indicator GNSS Signal Indicator Others Calibrating the Device Location Remote Debugging Maintenance Firmware Update Notices Using DJI FlightHub 2...
-

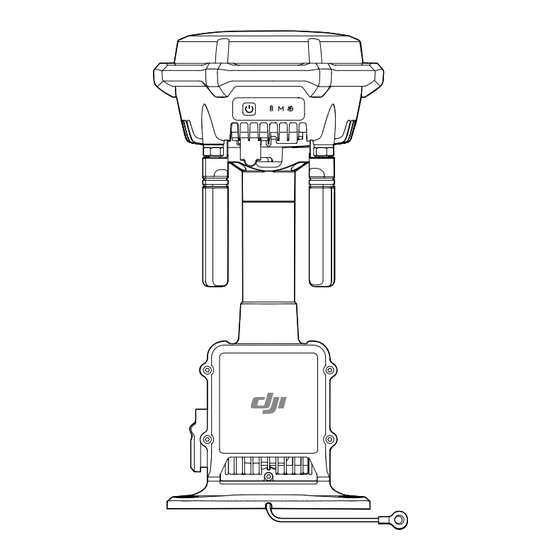

Page 7: Product Overview
IP45 when the protective cover is secure and it is IP67 after the Ethernet cable connector is inserted. • When using the DJI Assistant 2, make sure to use a USB-C to USB-A cable to connect the USB-C port of the device to a USB-A port of the computer. ©... -
Page 8: Supported Product List
D-RTK 3 Relay Fixed Deployment Version User Manual 1.2 Supported Product List Visit the following link to view compatible products: https://enterprise.dji.com/d-rtk-3 © 2025 DJI All Rights Reserved. -
Page 9: Safety Precautions Before Installation
D-RTK 3 Relay Fixed Deployment Version User Manual Safety Precautions Before Installation 2.1 Safety Precautions Before Installation To ensure safety of people and the devices, follow the labels on the devices and the safety precautions in the manual during installation, configuration, and maintenance. -
Page 10: Warning
D-RTK 3 Relay Fixed Deployment Version User Manual Warning • DO NOT install, configure, or maintain the product (including but not limited to installing the product, connecting the cables, or performing operations at a height) in severe weather such as thunderstorms, snowfall, or winds exceeding 8 m/s. -
Page 11: Construction Preparation
D-RTK 3 Relay Fixed Deployment Version User Manual Construction Preparation Make sure to read this chapter carefully, select a site for the product according to the requirements. Failure to select a site according to the requirements may lead to the malfunctioning of the product, operational stability deterioration, shortening of the service life, unsatisfactory effects and potential safety hazards, property losses, and casualties. -
Page 12: Site Evaluation Using Aircraft
Site Evaluation Using Aircraft Checking the Signal Quality Models supported for relay site evaluation: Matrice 4D series aircraft and DJI RC Plus 2 Enterprise remote controller. If an aircraft linked with a dock is used, the dock must be powered off. -
Page 13: Performing A Flight Task
D-RTK 3 Relay Fixed Deployment Version User Manual 3. Follow the instructions in the app to create a new site evaluation task. 4. The pilot operates the remote controller at the planned dock installation site and flies the aircraft to the planned relay installation site. Keep the aircraft at the same height as the planned installation height of the relay. - Page 14 D-RTK 3 Relay Fixed Deployment Version User Manual off from the selected site and fly to the farthest position of the planned operation area. Record the GNSS signal and video transmission signal of the flight. 1. Planned Dock Installation Site 2.
-
Page 15: On-Site Survey
D-RTK 3 Relay Fixed Deployment Version User Manual 3.2 On-site Survey Fill out the information such as the installation location, installation method, installation orientation, and the list of required materials. It is recommended to mark the planned installation location of the product using paint. -
Page 16: Earth-Termination System
D-RTK 3 Relay Fixed Deployment Version User Manual Earth-termination System Select the appropriate earth-termination system based on the conditions of the installation site. • When installed on the rooftop, it can be directly connected to the lightning protection belt. •... - Page 17 D-RTK 3 Relay Fixed Deployment Version User Manual • Make sure the PVC pipes are not installed near water pipes, heating pipes, or gas pipes. © 2025 DJI All Rights Reserved.
-
Page 18: Installation And Connection
D-RTK 3 Relay Fixed Deployment Version User Manual Installation and Connection 4.1 User Prepared Tools and Items Digital Level Hammer Drill (Ф10 Claw Hammer Wrench (10 mm) Earthing Resistance Screws and Nuts Corrugated Tubing Corrugated Tubing Meter (M4) Plug Twisted Pair Cable... -
Page 19: Getting Start
Powering On Charge to activate the internal battery of the product before using for the first time. Make sure to use a PD3.0 USB charger with the voltage from 9 to 15 V, such as DJI 65W Portable Charger. 1. Connect the charger to the USB-C port on D-RTK 3. When the battery level indicator lights up, it means that the battery has been successfully activated. -
Page 20: Mounting
D-RTK 3 Relay Fixed Deployment Version User Manual • Connect the smartphone to the relay. Complete the evaluation of video transmission quality and GNSS positioning signal by following the prompts in DJI Enterprise. 4.3 Mounting • Only those who hold the certificates issued by the local department can carry out operations at heights above 2 m. -
Page 21: Connecting The Ethernet Cable
D-RTK 3 Relay Fixed Deployment Version User Manual >0.5m 2-M6×10 Use anti-loosening screws 使用防松螺母 • The mounting holes dimensions of the product are compatible with the equipment rods of most outdoor network cameras. 4.4 Connecting the Ethernet Cable • Make sure to use a Cat 6 twisted pair cable with a cable diameter of 6-9 mm in order to guarantee the seal is secure and that the waterproof performance is not compromised. -
Page 22: Configuration
after powering by the external power. • When connecting to a DJI dock, follow the dock manual to make the Ethernet connector. The Ethernet cable connector for the relay is not the same as the one for the dock. - Page 23 2. Connect the product to the smartphone using a USB-C to USB-C cable. 3. Open the DJI Enterprise and follow the on-screen instructions to complete the deployment. 4. Go to the DJI FlightHub 2 to view the D-RTK 3 connection status on the device status window. After displaying connected, the product can work properly. ©...
-
Page 24: Use
D-RTK 3 Relay Fixed Deployment Version User Manual 5.1 Notices • Only use the product in the corresponding frequency band and in accordance with local laws and regulations. • DO NOT obstruct all the antennas of the product during use. -
Page 25: Power Indicator
D-RTK 3 Relay Fixed Deployment Version User Manual Power Indicator When powered by an external power, the power indicator displays blue . When powered only by the built-in battery, the power indicator displays as follows. Battery Level > 60% 20%-60% <... -
Page 26: Calibrating The Device Location
During calibration, use a USB-C to USB-C cable to connect the device and the smartphone. • Use the DJI Enterprise for calibration, and ensure the smartphone is connected to the internet during calibration. Wait until the app displays the calibration results as converged and fixed. -
Page 27: Remote Debugging
• Users can log in to the DJI FlightHub 2. In the Remote Debug > Relay Control, perform remote debugging for the device. Make sure the video transmission of the relay is enabled. -
Page 28: Maintenance
Using DJI FlightHub 2 Use a computer to visit https://fh.dji.com Log in to DJI FlightHub 2using a your account. InDevice Management > Dock, perform a Firmware Update for the device of D-RTK 3. Visit the official website pageDJI FlightHub 2 for more information: https://www.dji.com/flighthub-2... -
Page 29: Exporting The Log Using Dji Flighthub
1. Power on the device. Connect the device to a computer with a USB-C cable. 2. Launch DJI Assistant 2 and log in with an account. 3. Select the device and click Log Export on the left side of the screen. -
Page 30: Part Replacement
D-RTK 3 Relay Fixed Deployment Version User Manual Maintainance • It is recommended to use the aircraft for remote inspection every six months. Make sure the device is installed securely and not covered by foreign matter. The cable, connectors, and antennas are not damaged. The USB-C port is covered securely. -
Page 31: Appendix
2. Restart the aircraft and the dock in the DJI FlightHub 2 remotely. If the relay is still not online, check the status of the D-RTK 3. It is recommended to operate the aircraft to the relay installation site to check the indicator and troubleshoot the relay. - Page 32 3 logs from the computer light and the corresponding dock logs, and contact official support for assistance. The D-RTK 3 is not connected to the dock, use the DJI Enter- Blinking prise to redeploy the product and link to the dock. If the issue slowly persists after redeployment, export the D-RTK 3 logs from the...
- Page 33 This content is subject to change without prior notice. Download the latest version from https://enterprise.dji.com/d-rtk-3/downloads If you have any questions about this document, please contact DJI by sending a message DocSupport@dji.com DJI and D-RTK are trademarks of DJI. Copyright © 2025 DJI All Rights Reserved.
