Summary of Contents for dji MIC
- Page 1 User Manual 2021 . 12 v1.0...
- Page 2 Searching for Keywords Search for keywords such as “battery” and “install” to find a topic. If you are using Adobe Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search. Navigating to a Topic View a complete list of topics in the table of contents.
-
Page 3: Table Of Contents
Content Introduction DJI Mic Transmitter DJI Mic Receiver Charging Case Operation Linking Using DJI Mic OLED Touchscreen Operations Transmitter Recording Audio File Updating Firmware Charging Case Operations Specifications After-Sales Information © DJI All Rights Reserved. 2021 ... -
Page 4: Introduction

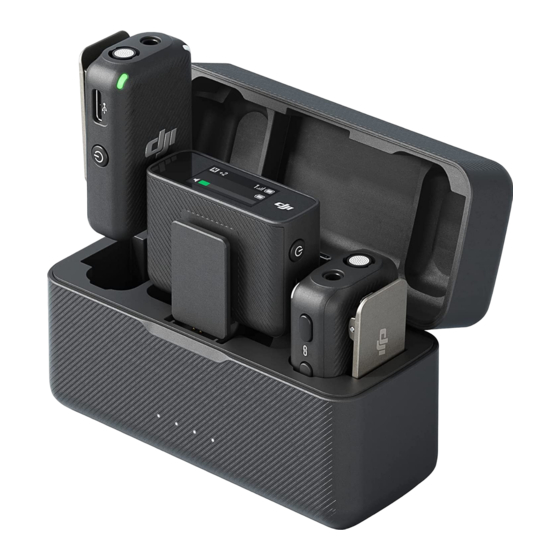

Introduction Mic is a dual channel wireless microphone system, including two transmitters and one receiver, which is able to record two sound sources simultaneously at a distance of up to 250 m*. The transmitter has a built-in omnidirectional microphone, supports the use of an external microphone, and can be clipped to clothing or any place close to a sound source. -
Page 5: Dji Mic Receiver
Charging will begin after connecting the transmitter to the charging pad of the charging case and the transmitter will automatically link with the receiver in the charging case. DJI Mic Receiver 1. OLED Touchscreen Displays information such as the real-time volume, battery level of the receiver and transmitter, charging status, wireless signal strength, gain, and recording modes. -
Page 6: Charging Case
Charging Case 1. USB-C Charging Port For charging the charging case. 2. Battery Level LEDs Indicates the battery level of the charging case. LED is on LED is flashing LED is off © DJI All Rights Reserved. 2021 ... - Page 7 User Manual DJI MIC LED1 LED2 LED3 LED4 Battery Level During Charging (LEDs blink in sequence) 76~99% 51~75% 26~50% ≤25% Fully charged (Power off) LED1 LED2 LED3 LED4 Battery Level 76~100% 51~75% 26~50% 10~25% <10% © DJI All Rights Reserved. 2021 ...
-
Page 8: Operation
Settings, and scroll through and tap Link Device to start linking. The status LED glow solid green to indicate linking is successfull. Using DJI Mic Transmitter The transmitter can be attached using the magnetic clip to either clothes or a stable surface. The clamp can also be used to attach the transmitter to clothes. - Page 9 • Only Mono mode can be used after connecting the receiver to the Lightning mobile phone adapter. • The mobile phone speaker cannot output sound after connecting the receiver to the mobile phone. Bluetooth headphones or speaker can be used instead. © DJI All Rights Reserved. 2021 ...
-
Page 10: Oled Touchscreen Operations
3. Using with a Computer Connect the receiver to a computer via the USB-C port as a microphone for a computer. Use a standard charging cable to connect DJI Mic with a computer and enter the related input settings on the computer. -
Page 11: Transmitter Recording
30 minutes. The max recording time is approximately 14 hours, at which point newly recorded audio will overwrite the older recorded audio if the storage is full. © DJI All Rights Reserved. 2021 ... -
Page 12: Audio File
How to update firmware: 1. Download the firmware on the product page at www.dji.com/mic/downloads. 2. Connect the transmitter or receiver to the computer using the USB-C cable provided. 3. Place the downloaded firmware update package .bin file under the root directories of the transmitters and receiver. -
Page 13: Specifications
Specifications Name DJI Mic Transmitter Model AST01 Dimensions 47.3×30.4×20.0 mm Weight 30 g Wireless Mode GFSK 1 Mbps and 2 Mbps Transmitter Power (EIRP) <20 dBm Operating Frequency 2400-2483.5 MHz Battery Type LiPo 1S Capacity 320 mAh Energy 1.23 Wh Voltage 3.85 V... -
Page 14: After-Sales Information
Charging Time 2 hours 40 minutes Operating time Fully charge three devices simultaneously x1.8 After-Sales Information Visit https://www.dji.com/support to learn more about after-sales service policies, repair services, and support. This content is subject to change. Download the latest version from https://www.dji.com/mic If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com.
