DJI Pro Wireless Receiver User Guide

In the Box

DJI Pro Wireless Receiver×1
Antenna×1

Introduction

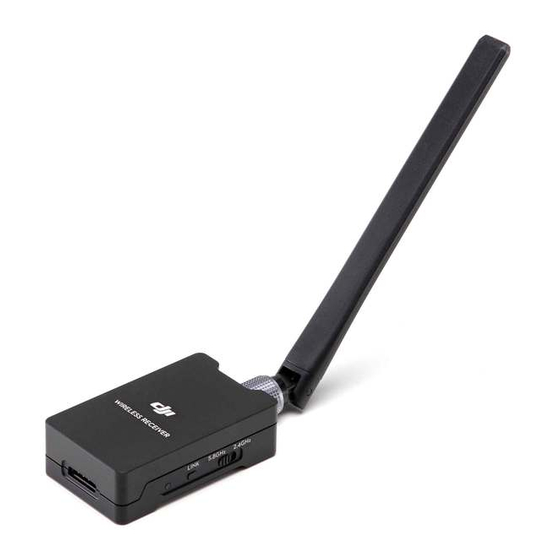

The DJI Pro Wireless Receiver
is designed to be used with the DJI Force Pro, DJI Master Wheels
and other controllers, providing a max operation range of 3 km. It is operating at dual-frequency
2.4 GHz and 5.8 GHz and compatible with the Ronin 2, Ronin-S and a third-party gimbal through
an S-Bus connection.
1. Antenna
Relays control signals. Do not obstruct the antenna.
2. Operating Frequency Switch
The operating frequency can be switch from 2.4GHz and 5.8GHz. Please note that some

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro Wireless Receiver and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for dji Pro Wireless Receiver

  • Page 1 Introduction The DJI Pro Wireless Receiver is designed to be used with the DJI Force Pro, DJI Master Wheels and other controllers, providing a max operation range of 3 km. It is operating at dual-frequency 2.4 GHz and 5.8 GHz and compatible with the Ronin 2, Ronin-S and a third-party gimbal through an S-Bus connection.
  • Page 2 regions are not supported 5.8GHz, make sure the switch is toggled to the 2.4GHz. 3. Link Button Press and hold this button for two seconds to start linking to the controller. 4. Status LED Indicates the status of system. 5. Power and Communication Port Connect this port to gimbal using the CAN Bus cable, D-Bus and S-Bus cable.
  • Page 3 Activation is required when use the Wireless Receiver for the first time. To activate, connect the USB port to the DJI Pro Assistant for Ronin. Press and hold on the link button for two seconds to link to a controller.
  • Page 4 may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna.
  • Page 5 EU Compliance Statement: SZ DJI Osmo Technology Co., Ltd. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the Directive 2014/53/EU. A copy of the EU Declaration of Conformity is available online at www.dji.com/euro-compliance...
  • Page 6 Déclaration de conformité UE : Par la présente, SZ DJI Osmo Technology Co., Ltd. déclare que cet appareil est conforme aux principales exigences et autres clauses pertinentes de la directive européenne 2014/53/EU Une copie de la déclaration de conformité UE est disponible sur le site www.dji.com/euro-...
