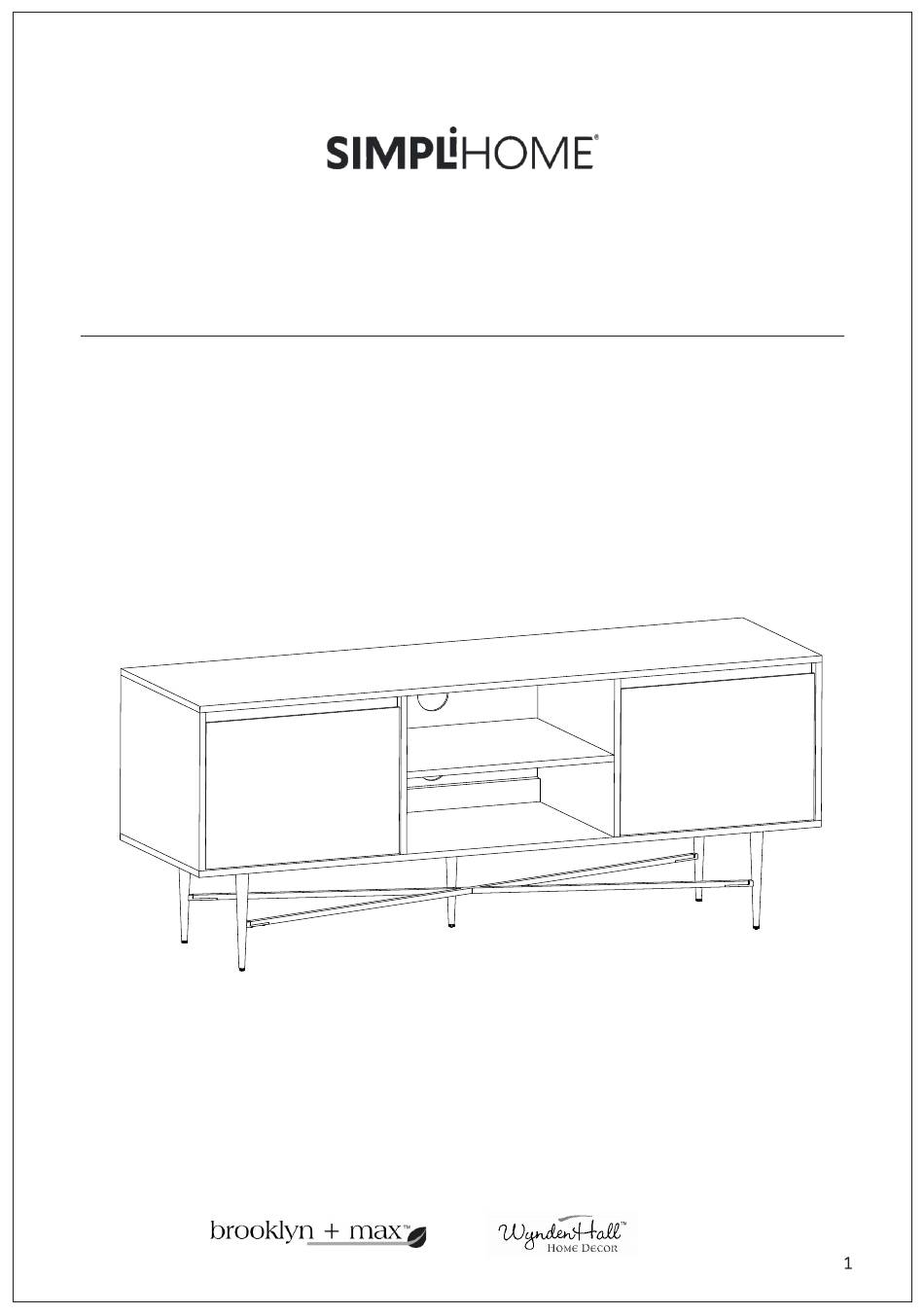

- Page 1 Fallon / Jovie / Lainey TV Media Stand MODEL # AXCFAL-16-NL...
- Page 7 WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 95 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.
- Page 8 Model # AXCFAL-16-NL Part Description X-SUPPORT CABINET QTY 1 QTY 1 LEFT ADJUSTABLE SHELF RIGHT ADJUSTABLE SHELF QTY 1 QTY 1 LEFT DOOR RIGHT DOOR QTY 1 QTY 1 LEFT LEG CENTER LEG RIGHT LEG QTY 2 QTY 1 QTY 2...
- Page 9 Model # AXCFAL-16-NL Hardware Description WASHER LOCK WASHER ALLEN KEY BOLT Ø18 / Ø8 x 1.5 mm Ø15 / Ø8 x 1.5 mm M6 X 15mm QTY 20 QTY 20 QTY 20 ALLEN KEY BOLT ALLEN KEY M6 X 10mm SHELF SUPPORT QTY 8 QTY 8...
- Page 10 Model # AXCFAL-16-NL...
- Page 11 Model # AXCFAL-16-NL Step 1 1. Place Cabinet upside down on a flat, smooth surface. 2. Attach Legs & to Cabinet using Allen Key Bolts ,Lock Washers and Washers 3. Use Allen Key to tighten.
- Page 12 Model # AXCFAL-16-NL Step 2 1. Attach X-Support to Legs & using Allen Key Bolts 2. Use Allen Key to tighten.
- Page 13 Model # AXCFAL-16-NL Step 3 1. Insert Shelf Supports in holes in cabinet. 2. Place Adjustable Shelves & in cabinet.
- Page 14 Model # AXCFAL-16-NL Step 4 Attach Doors & using adjustable hinges.
- Page 15 Model # AXCFAL-16-NL Step 5...
- Page 16 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture p-over. If the furniture -p over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 6 NOTE: The screwdriver is not included in the hardware pack.
- Page 17 Furniture Anti-Tipping Restraint Instructions...
