Summary of Contents for SIMPLIHOME WyndenHall Brooklyn+Max AXCART72-FOG

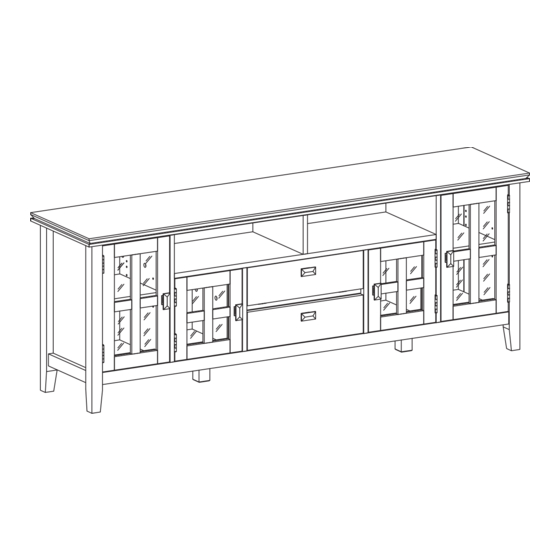

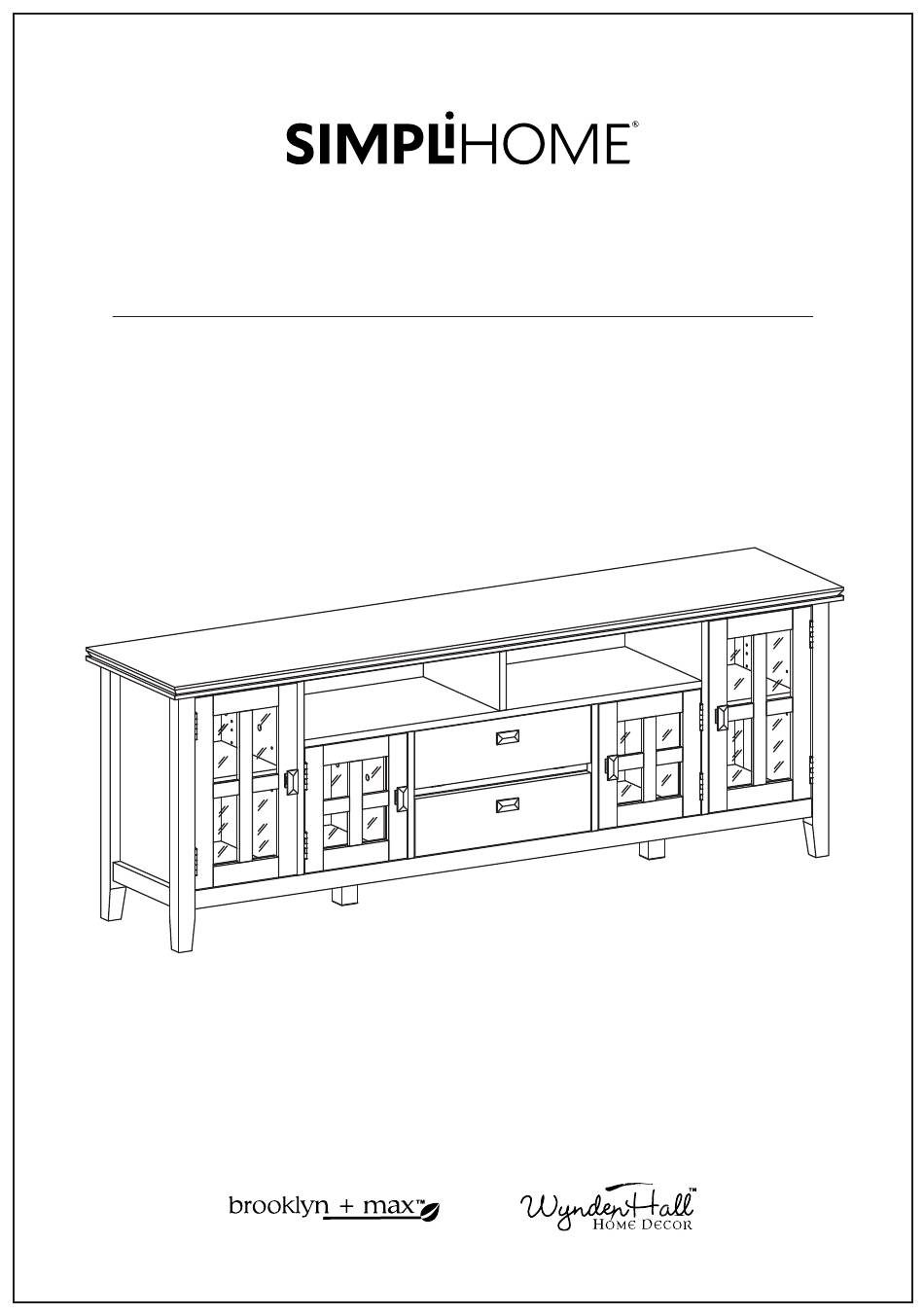

- Page 1 Artisan / Holden / Stratford 72 inch TV Media Stand Model # AXCART72-FOG...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. The recommended maximum width of the television intended for use is 80 inch (203.2 cm). - Page 8 Pre-Assembly Information Model # AXCART72-FOG Part Description V16-B V16-A V16-C BOTTOM SHELF TOP SHELF QTY 1 QTY 1 QTY 1 V16-DL V16-DR V16-D1 Warning Label LEFT BACK PANEL RIGHT BACK PANEL TOP BACK PANEL QTY 1 QTY 1 QTY 1 V16-D2 V16-EL V16-ER...
- Page 9 Pre-Assembly Information Model # AXCART72-FOG Part Description V16-FR V16-FL V16-GL LEFT MIDDLE DIVIDER LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 V16-GR V16-H V16-I RIGHT MIDDLE DIVIDER CENTER SHELF TOP DIVIDER QTY 1 QTY 1 QTY 1 V16-J V16-K V16-L SHELF...
- Page 10 Pre-Assembly Information Model # AXCART72-FOG Part Description V16-N V16-M V16-O BOTTOM SUPPORT LEG FLIP DOWN DOOR DRAWER FRONT QTY 2 QTY 1 QTY 1 V16-PL V16-PR V16-Q LEFT DRAWER SIDE DRAWER BACK RIGHT DRAWER SIDE QTY 1 QTY 1 QTY 1 V16-R DRAWER BOTTOM QTY 1...
- Page 11 Pre-Assembly Information Model # AXCART72-FOG Hardware Description HANDLE ALLEN KEY SCREW CAM LOCK PIN M4 X 30mm ALLEN KEY M6 X 30 mm CAM LOCK QTY 6 SETS QTY 1 QTY 43 QTY 19 SETS PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW M4 X 15 mm SHELF SUPPORT MAGNET AND PLATE...
- Page 12 Components - Key Diagram Model # AXCART72-FOG V16-A V16-FL V16-C V16-H V16-I V16-N V16-FR V16-ER V16-DL V16-D1 V16-DR V16-D2 V16-J V16-J V16-L V16-M V16-GR V16-L V16-EL V16-K V16-B V16-M V16-GL V16-K V16-Q V16-PR V16-PL V16-R V16-O...
- Page 13 Assembly Model # AXCART72-FOG V16-O Step 1 V16-PR V16-PL V16-PR V16-PL V16-O 1. A ach 4 Cam Lock Pins 2 into pre-drilled holes at the back of Drawer Front V16-O . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides V16-PL , V16-PR . 3.
- Page 14 Assembly Model # AXCART72-FOG Step 3 V16-Q V16-PR V16-R V16-O V16-PL 1. Align Drawer Back V16-Q with Drawer Bo om V16-R and press firmly into slot. 2. A ach back using 2 Allen Key Screws 1 through guide holes on each Side V16-PL , V16-PR .
- Page 15 Assembly Model # AXCART72-FOG Step 5 V16-GR V16-I V16-GL 1. A ach Centre Shelf V16-I to each Middle Divider V16-GL , V16-GR using 3 Allen Key Screws 1 . 2. Use Allen Key 3 to ghten screws. Do not over- ghten.
- Page 16 Assembly Model # AXCART72-FOG Step 6 NOTE: The screwdriver is not included in the hardware pack. V16-H V16-GR V16-I V16-GL V16-C 1. A ach 6 Cam Lock Pins 2 into pre-drilled holes at the bo om of Top Shelf V16-C . 2.
- Page 17 Assembly Model # AXCART72-FOG Step 7 V16-C V16-FR V16-FL 1. A ach Top Shelf V16-C to each Divider V16-FL , V16-FR using 3 Allen Key Screws 1 . 2. Use Allen Key 3 to ghten screws. Do not over- ghten. V16-GR Step 8 V16-GL...
- Page 18 Assembly Model # AXCART72-FOG Step 9 NOTE: The screwdriver is not included in the hardware pack. V16-ER V16-M V16-EL V16-M V16-B 1. A ach 3 Cam Lock Pins 2 into pre-drilled holes on each Side V16-EL , V16-ER . 2. Align Cam Lock Pins with guide holes and a ach Bo om Shelf V16-B . 3.
- Page 19 Assembly Model # AXCART72-FOG Step 10 V16-FL V16-H V16-EL V16-FR V16-A V16-ER V16-H V16-A V16-FR V16-FL V16-ER V16-EL 1. A ach 3 Cam Lock Pins 2 into pre-drilled holes at the bo om of Top V16-A (at center). 2. Align Cam Lock Pins with guide holes on Top Divider V16-H . 3.
- Page 20 Assembly Model # AXCART72-FOG Step 11 Note: NOTE: The screwdriver is not included in the hardware pack. The back of the tv frame does not have pre-drilled holes to a ach the back panels. Warning Label V16-A V16-DR V16-D1 V16-D2 V16-DL 1.
- Page 21 Assembly Model # AXCART72-FOG First Step Last Step ( after adjust the door ) Step 12 V16-FR V16-BR V16-I V16-FL V16-A V16-EL V16-N V16-L V16-K V16-K V16-L V16-B 1. Attach hinges on Large Doors V16-K to Sides V16-EL , V16-ER and attach hinges on Small Doors V16-L to Dividers V16-FL , V16-FR using Phillips Screws 9 into pre-drill holes: - Using...
- Page 22 Assembly Model # AXCART72-FOG Step 13 V16-L V16-K V16-GR V16-B V16-N V16-L V16-K V16-B V16-N V16-L V16-k 1. A ach 4 Magnet Plates 6 to bo om corner of Doors V16-K and Doors V16-L using Phillips Screws 10 into pre-drilled holes. 2.
- Page 23 Assembly Model # AXCART72-FOG Step 14 V16-L V16-K V16-K V16-L V16-N 1. Use a Phillips screwdriver to a ach Handles 4 to Doors V16-K , V16-L & Flip Down Door V16-N through guide holes.
- Page 24 Assembly Model # AXCART72-FOG Step 15 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 V16-J V16-J V16-J V16-J 1. Attach 4 Shelf Supports 7 for each Shelf V16-J in desired location. 2. 2 Shelf Supports 7 may be used on back top of each Shelf V16-J as a tipping restraint.
- Page 25 Assembly Model # AXCART72-FOG Step 16 1. Insert assembled drawers into glides on assembled TV.
- Page 26 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 17 NOTE: The screwdriver is not included in the hardware pack.
- Page 27 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
