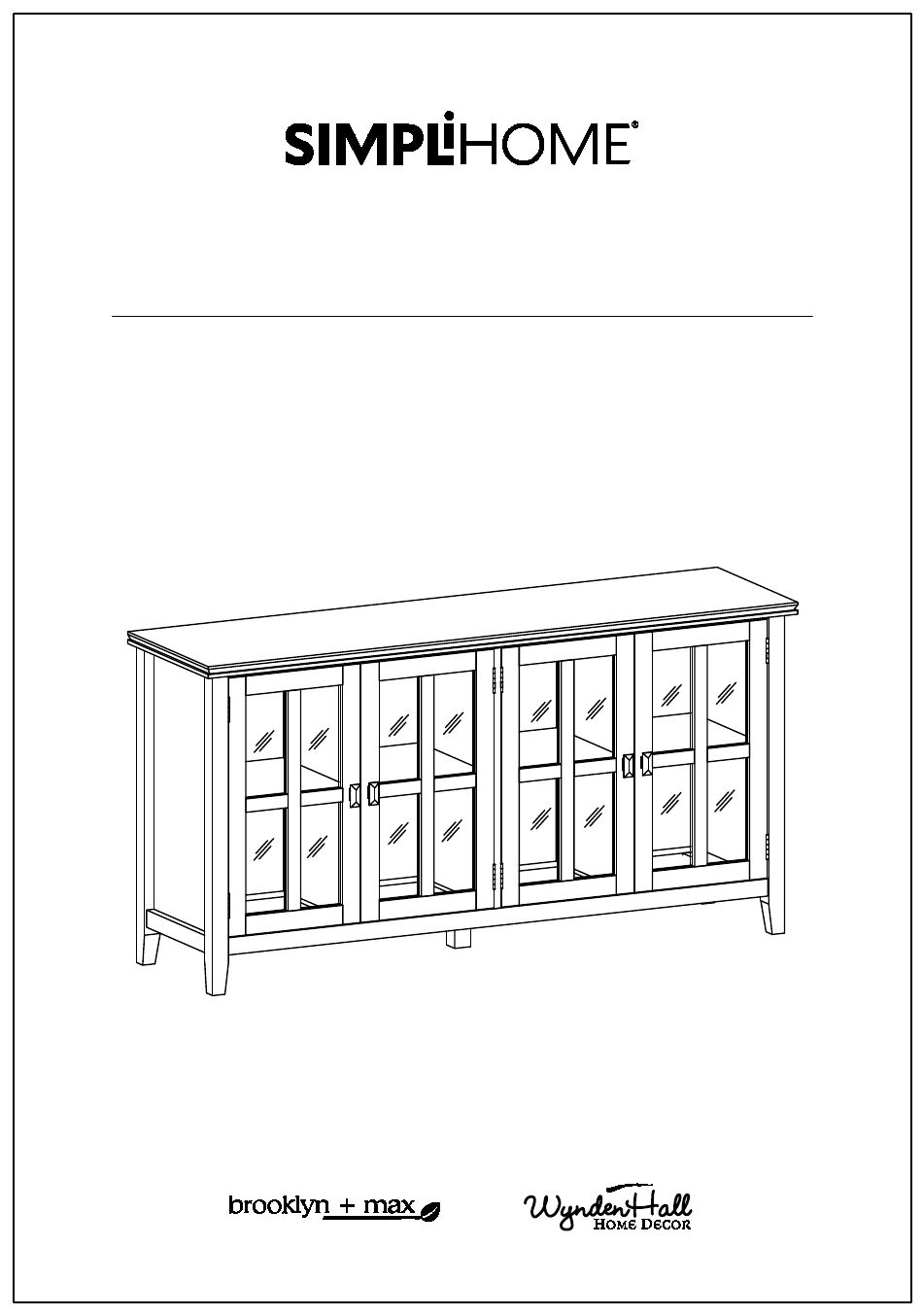

- Page 1 Artisan / Holden / Stratford Wide 4 Door Storage Cabinet Model # AXCART53-BL...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCART53-BL Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF DIVIDER MIDDLE DIVIDER QTY 1 QTY 2 QTY 1 SHELF SHELF LEFT BACK PANEL DOOR QTY 4 QTY 1 QTY 4 Warning Label RIGHT BACK PANEL MIDDLE BACK PANEL...
- Page 8 Pre-Assembly Information Model # AXCART53-BL Hardware Description PHILLIPS SCREW ALLEN KEY SCREW CAM LOCK PIN ROUND HEAD ALLEN KEY M6 X 30mm CAM LOCK M4 X 15mm QTY 1 QTY 24 QTY 6 SETS QTY 39 HANDLE PHILLIPS SCREW MAGNET AND PLATE SHELF SUPPORT M4 X 30 mm M4 X 30mm...
- Page 9 Components - Key Diagram Model # AXCART53-BL...
- Page 10 Assembly Model # AXCART53-BL Step 1 1. Attach three Cam Lock Pins 2 into pre-drilled holes on each part BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 11 Assembly Model # AXCART53-BL Step 2 1. Use thee Allen Key Screws 1 to attach each part C , D through guide holes from part E to pre-drilled holes of parts C , D . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 12 Assembly Model # AXCART53-BL Step 3 1. Align Cam Lock Pin with guide holes and attach parts BL , BR to part E . 2. Insert six Cam Locks 2 into guide holes on part E . 3. Use Phillips screwdriver to secure Cam Locks. Do not over-tighten.
- Page 13 Assembly Model # AXCART53-BL Step 4 1. Use three Allen Key Screws 1 to attach each part BL , BR , C , D through guide holes from each part BL , BR , C , D to pre-drilled holes of Top A . 2.
- Page 14 Assembly Model # AXCART53-BL Step 5 1. Align Bottom Support Leg I with pre-drilled holes on back of Bottom Shelf E . Use Phillips Screwdriver to tighten four Phillips Screws 8 .
- Page 15 Assembly Model # AXCART53-BL Step 6 Note: Warning Label 1. Attach the Back Panels HL ,HR , H to back frame using Phillips Screws Round Head 4 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 16 Assembly Model # AXCART53-BL Step 7 First Step Last Step ( after adjust the door ) 1. Attach hinges on Doors G to Sides BL , BR , D using Phillips Screws 10 into pre-drill holes: - Using Phillips screwdriver to attach Screws 10 at middle hole of hinges for both top &...
- Page 17 Assembly Model # AXCART53-BL Step 8 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnet Plates 7 to bottom corner of Doors G using Phillips Screws 9 into pre-drilled holes on Doors G . 2. Attach Magnets 7 using Phillips Screws 9 into pre-drilled holes on Bottom Shelf E .
- Page 18 Assembly Model # AXCART53-BL Step 9...
- Page 19 Assembly Model # AXCART53-BL Step 10 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 5 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 5 may be used on back top of each Cabinet Shelf F as a tipping restraint.
- Page 20 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 11 NOTE: The screwdriver is not included in the hardware pack.
- Page 21 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
