Cutting Board Juice Groove Routing Jig Instructions
Effective December 2024
Review full instructions prior to use for important safety information.
Always check Rockler.com to confirm that you are using the most recent version of instructions for your product.
Advertisement
Related Manuals for Rockler 65130
Summary of Contents for Rockler 65130

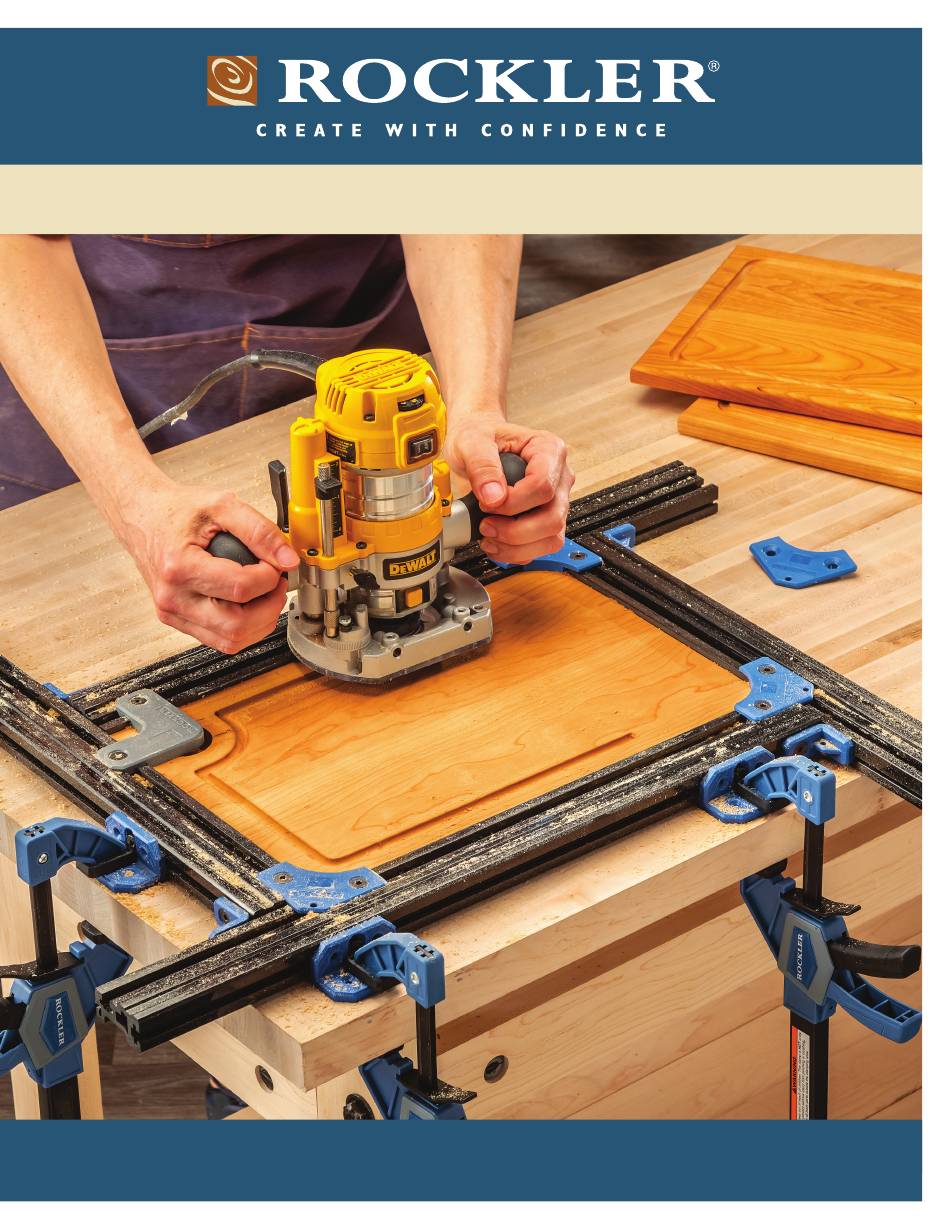

- Page 1 Cutting Board Juice Groove Routing Jig Instructions Effective December 2024 Review full instructions prior to use for important safety information. Always check Rockler.com to confirm that you are using the most recent version of instructions for your product.
-
Page 2: General Safety Warnings
(see the • Keep children and bystanders away from the tool instructions link on the product page at Rockler.com). operating area; • Do NOT use power tools in explosive environments, or in the presence of flammable liquids, fumes or dust;... - Page 3 PRODUCT SPECIFIC SAFETY WARNINGS > To avoid serious injury, keep hands and fingers away from the spinning router bit. Always maintain awareness of the bit. > TURN OFF AND DISCONNECT POWER to your router > Once the Cutting Board Juice Groove Routing Jig has before installing the guide bushing or router bit or adjusting been adjusted to capture the cutting board workpiece, the cutter height.
-
Page 4: Parts List
PARTS LIST Quantity 1 Rail 2 Support Bracket 3 Standard Corner Guide 4 Clamping Bracket 5 Flathead Screw 6 Washer Nuts 7 Guide Bushing 8 Guide Bushing Lock Nut 9 Triangle Handle Corner Guide 10 Round Handle Corner Guide 11 Square Handle Corner Guide 12 Hex Key Connect the Rails 1. - Page 5 Fig. 1 Fig. 2 2. Fit the keys on the underside of the Standard Corner Guide (3) into the slots in the intersecting Rails (1) and adjust the positions of the Washer Nuts (6) to align them with the mounting holes in the guide. Insert two Flat-Head Screws (5) in the countersunk holes in the Corner Guide and thread them into the Washer Nuts.
- Page 6 Corner Guides are tight to the top face of the workpiece, and that all fasteners are fully tightened before using the jig. If you plan to use the Rockler Cutting Board Juice Groove Routing Jig with Bosch 1613AEVS, > Once the Cutting Board Juice Groove Routing Jig...
- Page 7 Fig. 5 Fig. 6 1. Set the overall plunge depth to the desired final depth of your a consistent pace, and try not to stop until your groove is juice groove. If your router’s plunge base allows, also set it to complete.
- Page 8 Make sure that the side of the workpiece in which you want the groove is facing up. Check Rockler.com for updates. If you have further questions, please contact our Technical Support Department at 1-800-260-9663 2. Remove the Standard Corner Guide (3) from the corner or support@rockler.com...
