Summary of Contents for Rockler 63779

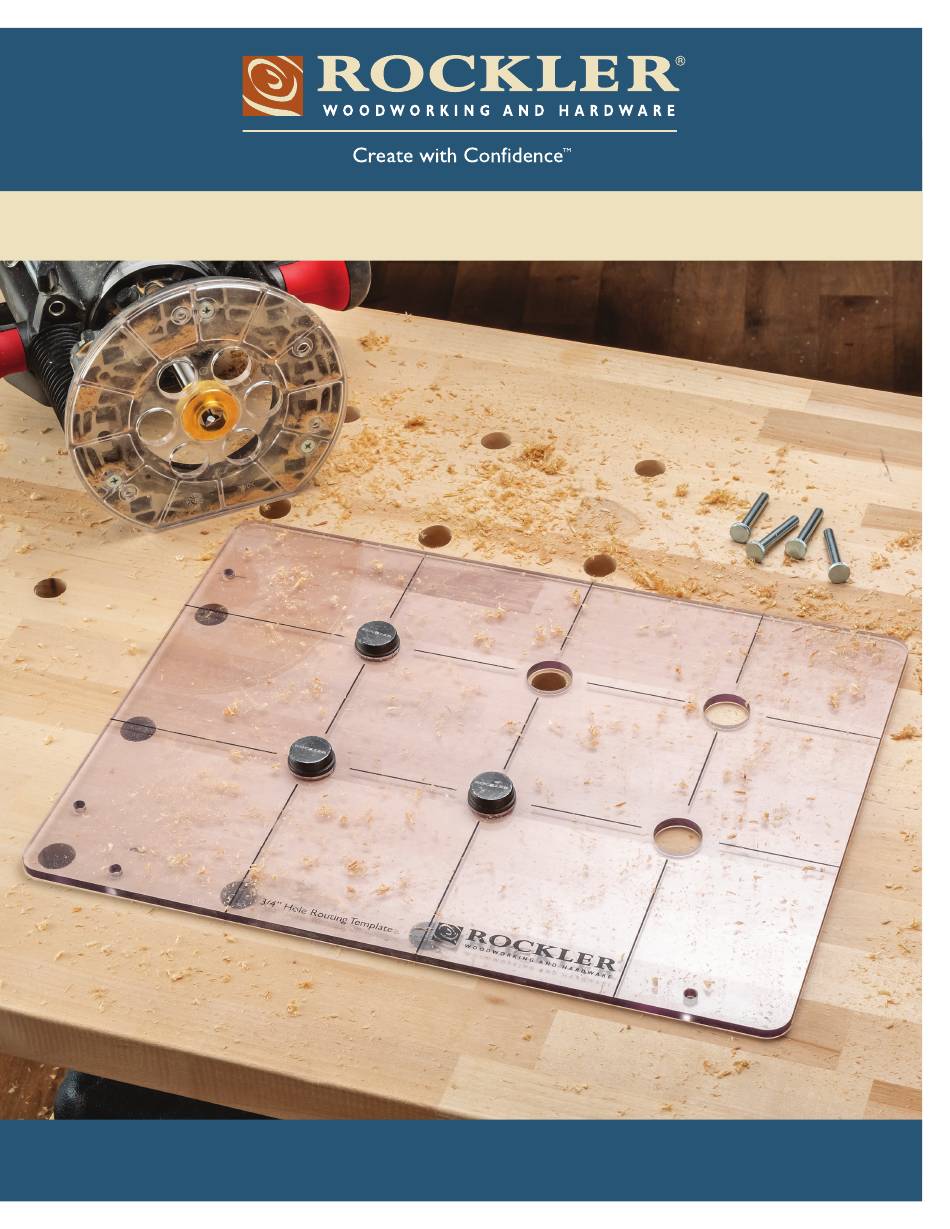

- Page 1 Bench Dog Hole Routing Template Instructions Effective January 2022 Review full instructions prior to use for important safety information. Always check Rockler.com to confirm that you are using the most recent version of instructions for your product.
- Page 2 Instructions and safety warnings for your product (see the • Keep children and bystanders away from the tool Instructions link on the product page at Rockler.com). operating area; • Do NOT use power tools in explosive environments, or in the presence of flammable liquids, fumes or dust;...
- Page 3 PRODUCT SPECIFIC SAFETY WARNINGS > To avoid serious injury, keep hands and fingers away from spinning router bit. Maintain awareness of the bit at all times. > In addition to these instructions, be sure to read, understand > Make sure the worktop into which you will be routing the and follow the user’s manual that came with your router, holes is stable and secure and will not shift during the including all safe-operating instructions.
- Page 4 To help make this process easier, Rockler offers a 1/2" Shank Router Baseplate Centering Guide (80548, 5. Insert the four edge-registration pins in the small holes along sold separately).
- Page 5 Route holes outline in red Edge-registration pins Indexing dog pin Clamp Fig. 2 Clamp the template in place (two clamps recommended). 8. With the router turned off and unplugged, increase the Position the clamps so they won’t obstruct the router cutting depth by 1/4"...
- Page 6 Route holes outline in red Indexing dog pin Edge-registration pins Clamp Fig. 3 13. Place the router on the template, with the guide bushing 19. Follow the same process you did when routing the dog in the next hole you intend to rout. holes along the left edge of your worktop to rout holes along the bottom edge, shifting the template as you go 14.
- Page 7 Proceed in this manner until you’ve routed all the holes you want. Check Rockler.com for updates. If you have further questions, please contact our Technical Support Department at 1-800-260-9663 or support@rockler.com...
- Page 8 63779 Distributed by Rockler Companies, Inc. 1-800-279-4441 Rev 01/22 4365 Willow Dr. Medina, MN 55340 www.rockler.com...
