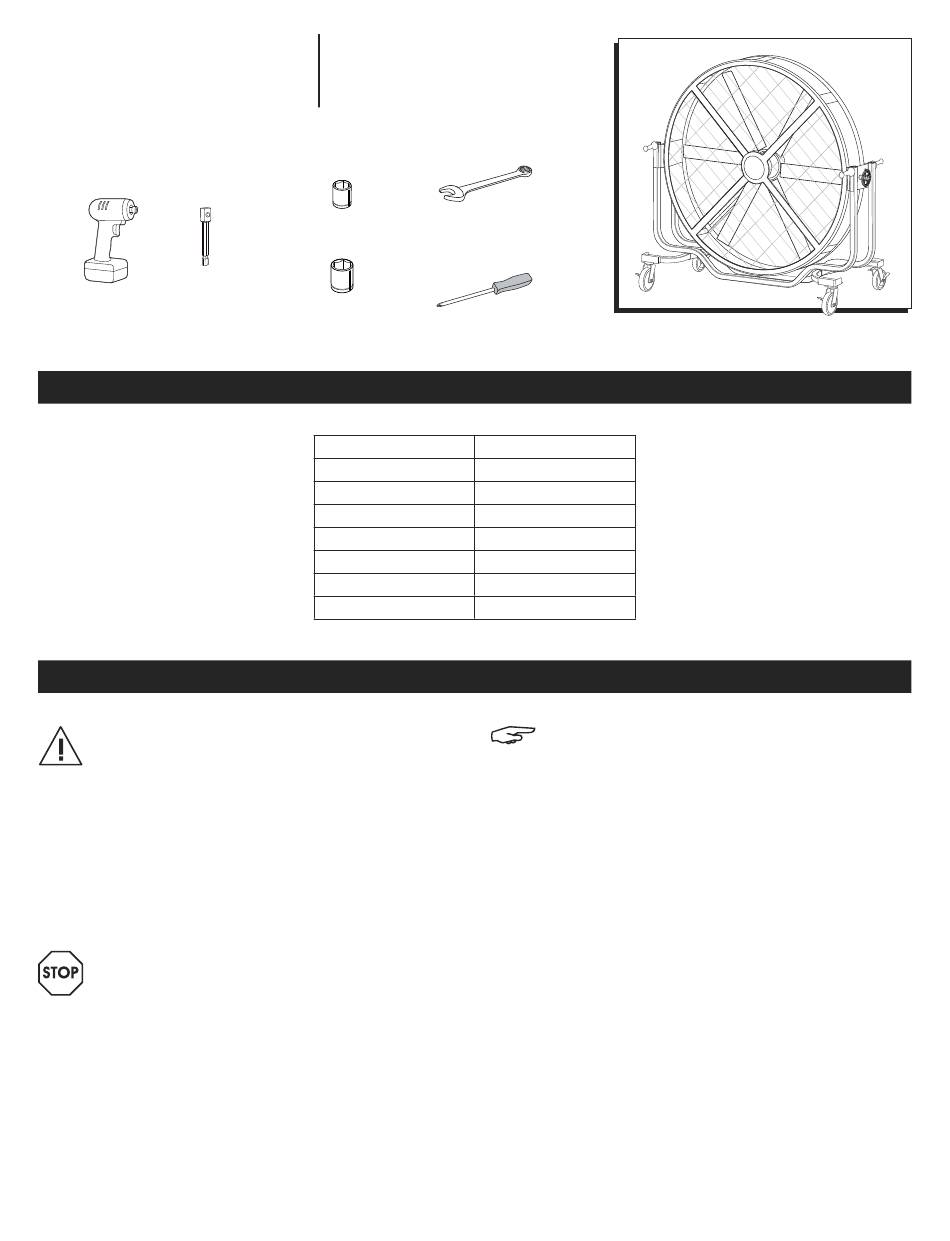

H-11632
JUMBO MOBILE FAN
TOOLS NEEDED
+
Impact Wrench with Socket Adapter
(optional)
CAUTION! Read and save these instructions.
Read carefully before attempting to assemble,
install, operate or maintain this product. Do
not use the fan if any part is damaged or
missing. Automatic reset safety device in
motor. To reduce risk of injury, disconnect
power supply before servicing. Protect yourself
and others by observing all safety information.
Failure to comply with instructions could result
in personal injury and/or property damage.
Retain instructions for future reference.
WARNING! To reduce the risk of fire or electric
shock, do not use this fan with any solid-state
speed control device. This fan has a grounded
plug. To reduce the risk of fire or electric shock,
this plug is intended to fit in an outlet only
one way. If the plug does not fit into the outlet,
contact a qualified electrician. Do not attempt
to bypass this safety feature. To reduce the risk
of fire, electric shock or injury to persons, do
not use replacement parts that have not been
recommended by the manufacturer.
PAGE 1 OF 21
1-800-295-5510
uline.com
8 mm Wrench
8 mm Socket
10 mm Wrench
(optional)
14 mm Wrench
10 mm Socket
(optional)
Phillips Screwdriver
TECHNICAL DATA
Size
Voltage
Frequency
Amps
Wattage
Maximum Speed
Net Weight
Gross Weight
SAFETY
Pour le français, consulter les pages 15-21.
72"
120V
60Hz
6A
450W
300 RPM
397 lbs.
584 lbs.
NOTE: To comply with UL507, fan should not be
used in unattended areas.
• Ensure that the power source conforms to the
electrical requirements of the fan.
• Where a two-prong wall receptacle is encountered,
it must be replaced with a properly grounded
three-prong receptacle installed in accordance
with the United States National Electrical Code
(NEC) and all applicable local codes and
ordinances. This work must be done by a qualified
electrician, using copper wire only.
• Where possible, avoid the use of extension cords. If
they must be used, minimize the risk of overheating
by ensuring that they are UL Listed and of the
proper gauge and length. Never use a single
extension cord to operate more than one fan.
• Do not kink the cord or allow it to contact oil,
grease, chemicals, hot surfaces, or sharp or
abrasive objects.
Para Español, vea páginas 8-14.
0325 IH-11632
