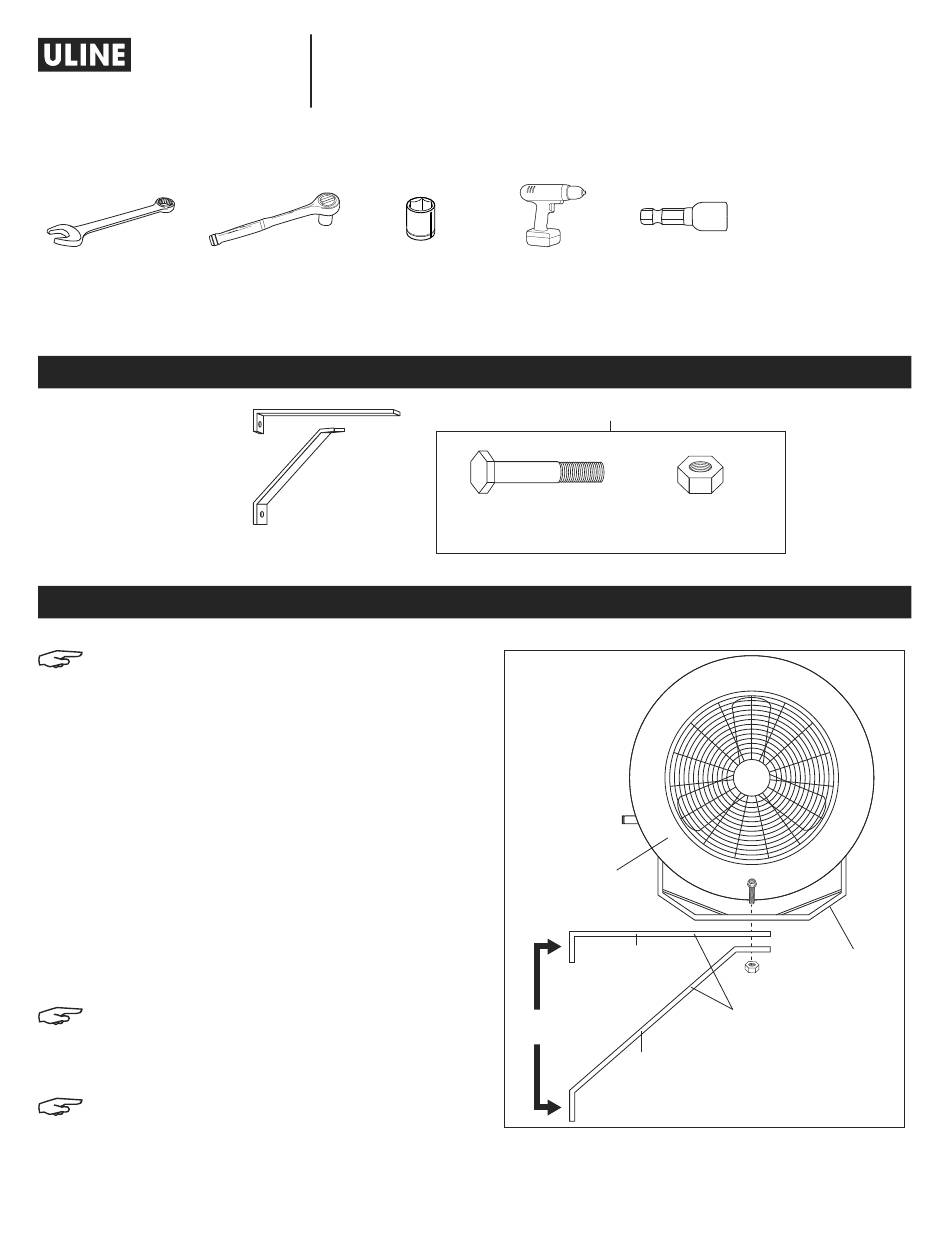

H-9924, H-9925
H-11062, H-11063
JET-STREAM FAN
TOOLS NEEDED
10 mm Wrench
11 mm Wrench
13 mm Wrench
16 mm Wrench
19 mm Wrench
NOTE: Fan can be placed above the wall
mount assembly or hung down below.
1.
Secure part A of wall mount assembly bracket to
solid surface from which fan will be hung. A single
mounting hole is located on part A. Secure to
surface using a wall anchor (not included).
(See Figure 1)
2. Position part B under A and situate B so that A is level.
A single mounting hole is located on part B. Secure
part B to surface using a wall anchor (not included).
(See Figure 1)
3. Using a 16 mm wrench, secure the yoke to wall
mount assembly bracket by inserting the 5/8" bolt
through the center hole in the yoke and through
the holes in both parts of the wall mount assembly
bracket. (See Figure 1)
NOTE: The yoke may open up or down
depending on which way the wall mount
assembly bracket is hung. Ensure assembly
is level and stable.
NOTE: A safety chain (not included) is
recommended for securing fan head.
PAGE 1 OF 15
1-800-295-5510
uline.com
Socket Wrench
24 mm Socket
WALL BRACKET PARTS
Bracket Assembly x 1
WALL BRACKET ASSEMBLY
Pour le français, consulter les pages 11-15.
Drill
5/16" Nut Driver Bit
Hardware Kit
5/8" Bolt x 1
5/8" Nut x 1
Figure 1
Fan Head
Assembly
A
Mounting Hole
B
Para Español, vea páginas 6-10.
Yoke
Wall Mount
Assembly Bracket
0824 IH-9924

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-9924 and is the answer not in the manual?

Questions and answers

Summary of Contents for U-Line H-9924

  • Page 1 Para Español, vea páginas 6-10. Pour le français, consulter les pages 11-15. H-9924, H-9925 1-800-295-5510 H-11062, H-11063 uline.com JET-STREAM FAN TOOLS NEEDED 10 mm Wrench Socket Wrench 24 mm Socket Drill 5/16" Nut Driver Bit 11 mm Wrench 13 mm Wrench...
  • Page 2 MOBILE PEDESTAL PARTS Bracket x 2 Floor Mount Stand x 2 Upright Mount x 1 Caster x 2 Hardware Kit 5/8" Bolt x 1 Washer x 1 5/8" Nut x 1 5/16" Carriage Bolt x 7 1/4" Flange Bolt x 2 3/8"...
  • Page 3 MOBILE PEDESTAL ASSEMBLY CONTINUED 3. Insert 5/16" carriage bolts through holes on ends of 6. Attach yoke to upright mount with 5/8" bolt through brackets. Secure with 5/16" flange nuts. (See Figure 4) center hole on yoke, washer and pedestal. Secure with 5/8"...
  • Page 4 DOCK ARM PARTS Hardware Kit 1/2" Bolt x 1 Washer x 1 1/2" Locknut x 1 Jiffy Clip x 5 5/16" Shoulder Bolt x 1 5/16" Locknut x 1 Self-Tapping Screw x 5 Dock Arm x 1 DOCK ARM ASSEMBLY MOUNTING HARDWARE 2.
  • Page 5 DOCK ARM ASSEMBLY CONTINUED SECURE POWER CORD STOP BOLT (OPTIONAL) 3. Secure fan power cord to dock arm with jiffy clips over 4. To prevent fan from rotating 360°, insert a the power cord. Align jiffy clips with pre-drilled holes 5/16"...
  • Page 6: Herramientas Necesarias

    H-9924, H-9925, 800-295-5510 H-11062, H-11063 uline.mx VENTILADOR DE GRAN VELOCIDAD HERRAMIENTAS NECESARIAS Llave de 10 mm Llave de Dado Dado de 24 mm Taladro Punta de Desarmador Llave de 11 mm para Tuercas de 5/16" Llave de 13 mm Llave de 16 mm...
  • Page 7 PARTES DEL PEDESTAL MÓVIL 2 Soportes 2 Bases para Instalación en Piso 1 Base Vertical 2 Ruedas Kit de Tornillería 1 Perno de 5/8" 1 Rondana 1 Tuerca de 5/8" 7 Pernos de Cabeza 2 Pernos de Reborde 1 Perno de 3/8" Redonda de 5/16"...
  • Page 8 ENSAMBLE DEL PEDESTAL MÓVIL CONTINUO 3. Inserte los pernos de cabeza redonda de 5/16" a 6. Fije el yugo a la base vertical con perno de 5/8" través de los orificios de los extremos de los soportes. a través del orificio central del yugo, rondana y Asegure con tuercas con reborde con 5/16".
  • Page 9 PARTES DEL BRAZO DE ANDÉN Kit de Tornillería 1 Perno de 1/2" 1 Rondanas 1 Contratuerca de 1/2" 5 Clips para Tubos 1 Perno de Reborde 1 Contratuerca de 5/16" de 5/16" 5 Tornillos Autorroscantes 1 Brazo de Andén ENSAMBLE DEL BRAZO DE ANDÉN TORNILLERÍA DE INSTALACIÓN 2.
  • Page 10 CONTINUACIÓN DEL ENSAMBLE DEL BRAZO DE ANDÉN FIJAR EL CABLE PERNO DE TOPE (OPCIONAL) 3. Fije el cable del ventilador al brazo de andén con 4. Para evitar que el ventilador gire 360°, inserte un los clips para tubos sobre el cable. Alinee los clips perno de tope de 5/16"...
  • Page 11: Outils Requis

    H-9924, H-9925 1 800 295-5510 H-11062, H-11063 uline.ca VENTILATEUR À JET D'EAU OUTILS REQUIS Clé de 10 mm Clé à douille Douille de 24 mm Perceuse Embout de tourne-écrou Clé de 11 mm de 5/16 po Clé de 13 mm Clé...
  • Page 12 PIÈCES DU SOCLE MOBILE Support x 2 Support de plancher x 2 Support vertical x 1 Roulette x 2 Matériel de fixation Boulon de 5/8 po x 1 Rondelle x 1 Écrou de 5/8 po x 1 Boulon de carrosserie de Boulon de bride de Boulon de 3/8 po x 1 5/16 po x 7...
  • Page 13 MONTAGE DU SOCLE MOBILE SUITE 3. Insérez les boulons de carrosserie de 5/16 po à 6. Fixez la chape au support vertical en insérant un travers les trous situés aux extrémités des supports. boulon de 5/8 po à travers le trou central de la Fixez-les avec des écrous à...
  • Page 14 PIÈCES DE BRAS DE QUAI Matériel de fixation Boulon de 1/2 po x 1 Rondelle x 1 Écrou freiné de 1/2 po x 1 Attache en demi-collier x 5 Boulon à épaulement Écrou freiné de de 5/16 po x 1 5/16 po x 1 Vis autotaraudeuse x 5 Bras de quai x 1...
  • Page 15 MONTAGE DU BRAS DE QUAI SUITE FIXATION DU CORDON D'ALIMENTATION BOULON D'ARRÊT (OPTIONNEL) 3. Fixez le cordon d'alimentation du ventilateur au 4. Pour empêcher le ventilateur de tourner à 360°, bras de quai à l'aide des attaches en demi-collier insérez un boulon à épaulement de 5/16 po dans par dessus le cordon.
