H-989, H-1406
H-1407, H-1408

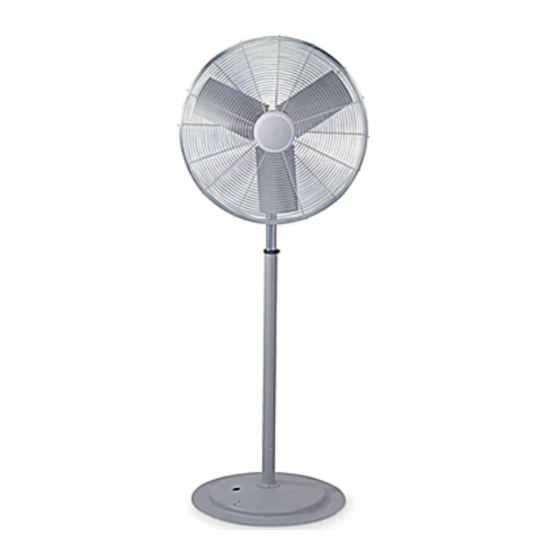

PEDESTAL FAN
TOOLS NEEDED
Phillips
10 mm Socket Wrench
Screwdriver
11 mm Socket Wrench
19 mm Socket Wrench
Fan Head x 1
Base x 1

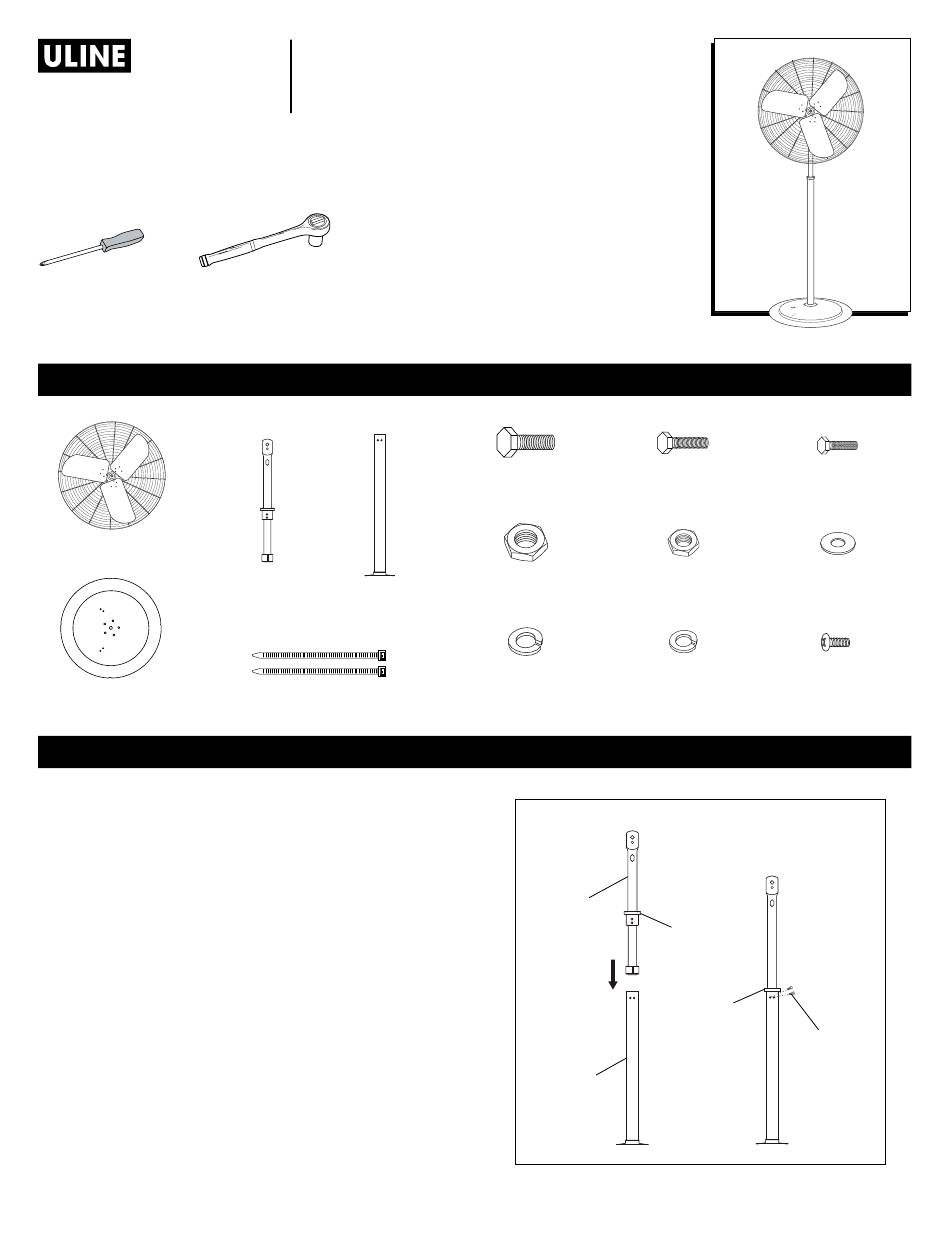

1.
Remove two 6-32 x 1/4" screws fastened to the
collar on the top pedestal. Insert top pedestal into
opening of bottom pedestal and align screw holes.
Re-insert screws using a Phillips screwdriver to secure
the top pedestal to the bottom pedestal.
(See Figure 1)
PAGE 1 OF 6
1-800-295-5510
uline.com
Bottom
Top
Pedestal x 1
Pedestal x 1
Zip Tie x 2
PARTS
19 mm Bolt x 1
19 mm Nut x 1
19 mm Lock
Washer x 1
ASSEMBLY
Figure 1
Top
Pedestal
Bottom
Pedestal
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
10 mm Bolt x 5
11 mm Bolt x 1
11 mm Nut x 1
11 mm Washer x 1
11 mm Lock
6-32 x 1/4" Screw x 2
Washer x 1
Collar
Collar
6-32 x 1/4"
Screw
1021 IH-989
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-989
Summary of Contents for U-Line H-989
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-989, H-1406 1-800-295-5510 H-1407, H-1408 uline.com PEDESTAL FAN TOOLS NEEDED Phillips 10 mm Socket Wrench Screwdriver 11 mm Socket Wrench 19 mm Socket Wrench PARTS 10 mm Bolt x 5...
- Page 2 ASSEMBLY CONTINUED 2. Remove five 10 mm bolts fastened to the base using Figure 3 a 10 mm socket wrench. Use same bolts to secure the assembled pedestal to the base. Tighten with 10 mm socket wrench. (See Figure 2) Figure 2 10 mm Bolt...
- Page 3 H-989, H-1406 800-295-5510 H-1407, H-1408 uline.mx VENTILADOR DE PEDESTAL HERRAMIENTAS NECESARIAS Desarmador Llave de Dado de 10 mm de Cruz Llave de Dado de 11 mm Llave de Dado de 19 mm PARTES 5 Pernos de 1 Perno de 1 Perno de...
- Page 4 CONTINUACIÓN DEL ENSAMBLE 2. Retire cinco pernos de 10 mm fijados a la base Diagrama 3 usando una llave de dado de 10 mm. Use los mismos pernos para fijar el pedestal ensamblado a la base. Apriete con la llave Allen de 10 mm. (Vea Diagrama 2) Diagrama 2 Perno de...
- Page 5 H-989, H-1406 1-800-295-5510 H-1407, H-1408 uline.ca VENTILATEUR SUR PIED OUTILS REQUIS Tournevis Clé à douille de 10 mm cruciforme Clé à douille de 11 mm Clé à douille de 19 mm PIÈCES Boulon de Boulon de Boulon de 10 mm x 5...
- Page 6 MONTAGE SUITE 2. Retirez les cinq boulons de 10 mm fixés à la base Figure 3 avec une clé à douille de 10 mm. Servez-vous des mêmes boulons pour fixer la base au pied qui a été monté. Serrez le tout avec la clé à douille de 10 mm. (Voir Figure 2) Figure 2 Boulon de...
