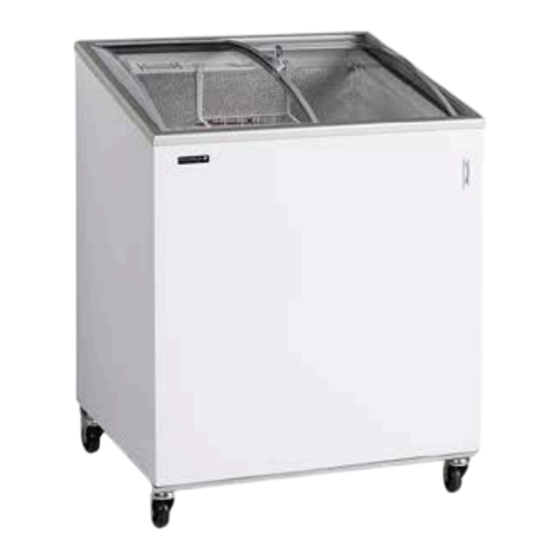

Diamond GVL040/R2 Instruction Manual

Ice cream freezers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
06/2018
Mod: GVL040/R2
Production code: IC400SC-P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GVL040/R2 and is the answer not in the manual?

Questions and answers

Related Manuals for Diamond GVL040/R2

Summary of Contents for Diamond GVL040/R2

  • Page 1 06/2018 Mod: GVL040/R2 Production code: IC400SC-P...

  • Page 2: Table Of Contents

    Model: IC-NIC/SC-SCE-SCEB/-I/-P Ice Cream Freezers Contents Important instructions Unpacking and setting up Connection to mains electricity Start-up Max. capacity line Lock Thermostat Thermometer Defrosting Maintenance Servicing Disposal...

  • Page 3: Important Instructions 10

    Important instructions 1. To get the best out of your cabinet, read these instructions thoroughly. 2. The user is responsible for correct use of the cabinet in accordance with instructions. 3. Contact your dealer immediately in the event of faults. 4.

  • Page 4: Start-Up 11

    Startup Clean the cabinet before use. See section on maintenance. Important note: If the cabinet has been lying down during transport, wait 2 hours before starting. Ventilation Make sure that there is free space around the freezer for ventilation of the compressor. DO NOT cover the ventilation grilles ! Max.

  • Page 5: Lock 11

    Lock The cabinet has a lock which can be fitted to the lids. See fig. 1.3. Fig. 1.3 Thermostat The thermostat is located in the compressor compartment. See fig. 1.4. Fig. 1.4 Thermostat factory setting: approx. -20 ºC. The thermostat can be set between -14 ºC to -24 ºC. Turn clockwise to lower temperature. Thermometer: The cabinet is fitted with a thermometer which shows the internal temperature.

  • Page 6: Defrosting 13

    Defrosting Defrost as required. To defrost, disconnect from mains electricity, remove the drain plug in the bottom and open the drain valve. See fig. 2.0. Leave lids open. Use the plastic scraper supplied to remove ice from the inside. NEVER use sharp objects or knives. Fig.

  • Page 7: Disposal 14

    Disposal Always dispose of refrigeration appliances with regard to the environment. Check local rules for disposal. There can be special requirements and conditions.
  • Page 8 Fitting glass top Front glass Silicon seal Right side glass Left side glass Glass holder Self tapping screw Aluminium profile Chrome cover Screw Brass washer Rubber washer...
