MBAR 3230 R LASER MKII
User Manual – Version 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBAR 3230 R LASER MKII and is the answer not in the manual?

Questions and answers

Related Manuals for Mark MBAR 3230 R LASER MKII

Summary of Contents for Mark MBAR 3230 R LASER MKII

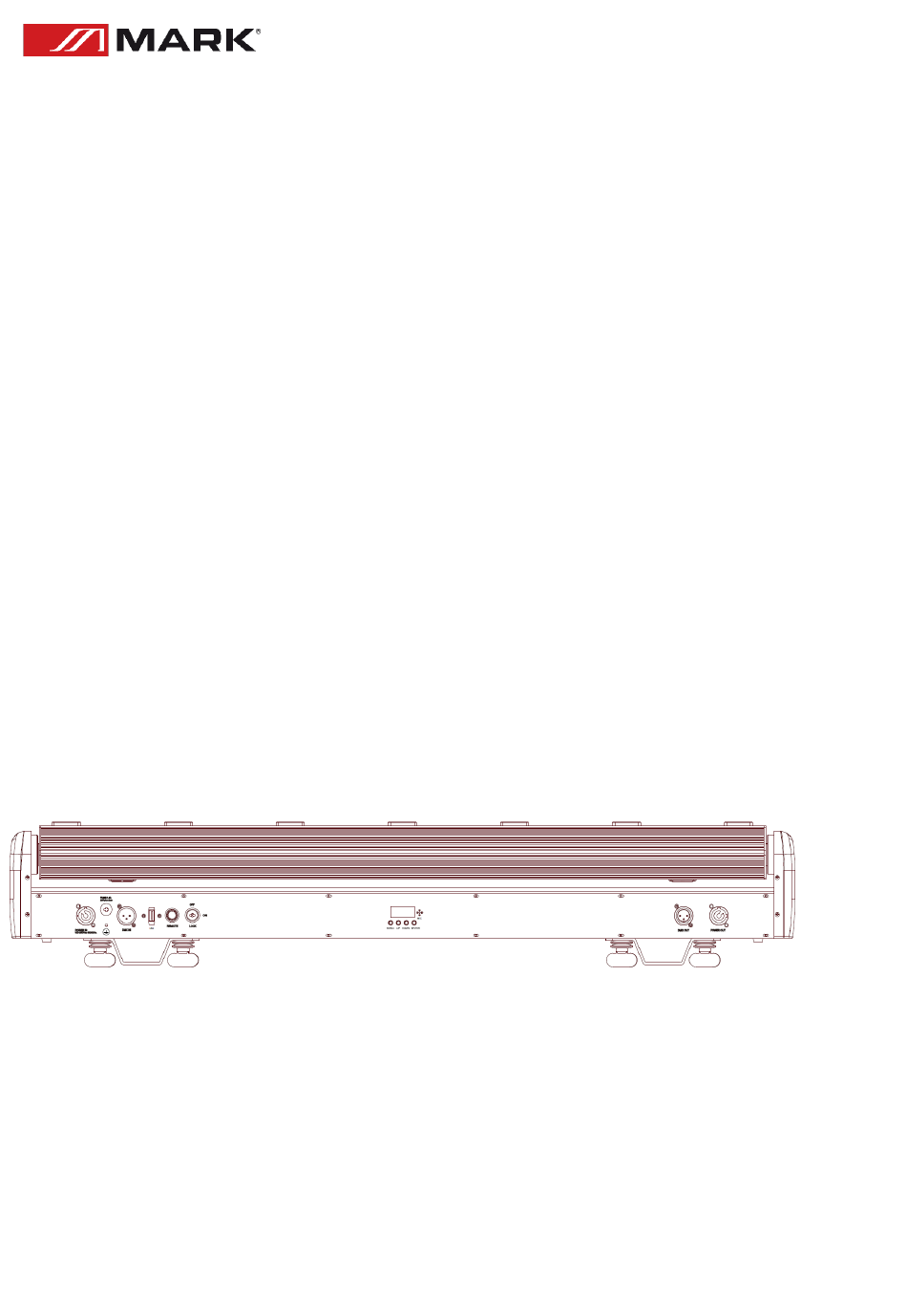

  • Page 1 MBAR 3230 R LASER MKII User Manual – Version 1.2...

  • Page 2: Safety Instructions

    8. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 9. Only use attachments/accessories specified by MARK. 10. Unplug this device during lightning storms or when unused for long periods of time.
  • Page 3 OVERVIEW MBAR 3230 R LASER MKII is a lighting bar that includes a double effect: on the one hand, 6x LEDs of 3W each one, Warm white (3200K colour temperature) and on the other, 7 red LASERs. The configuration interface has a display with all the information and the buttons to navigate through the menus, selecting parameters such as 9 LED programs and the 8 LASER programs that can be executed automatically or through audio.

  • Page 4: Installation

    Ensure that the unit does not meet water or any other liquid. MBAR 3230 R LASER MKII can be placed in a stable surface or stand but the common operating mode is rigging it in a truss system. Please, check and follow the next recommendations for safe use of this device: The truss system must be built in a way that it can hold 10 times the weight of all rigging elements for 1 hour without any harming deformation.
  • Page 5 Pin occupation Pin 1: Ground Pin 2: Pin - Pin 3: Pin + To connect more than one unit in a chain, please, follow this picture. The output of the first unit must provide to the next DMX input of the signal, this way it is possible to send the signal to all the devices in the chain.

  • Page 6: Advanced Use

    ADVANCED USE CONTROL PANEL MBAR 3230 R LASER MKII can be configured in different ways thanks to its panel and selection buttons. Press the MENU button (once or several times) until you get to the desired function (according to the following chart), and press ENTER to confirm your selection.

  • Page 7: Dmx Control Mode

    S0XX 01 - 99 LED CHASE SPEED STOP N. XX 02 - 99 TILT ROTATION (S>F) LLXX 01 - 11 LASER LED CHASE S0XX 01 - 99 LASER LED CHASE SPEED -MiH -MiH STOP N. XX 02 - 99 TILT ROTATION (S>F) S0XX 01 - 99 AUTO MODE SPEED...

  • Page 8: Led Dimmer

    100 - 119 LASER LED CHASE 6 LASER LED CHASE 7 120 - 139 LASER LED CHASE 8 140 - 159 LASER LED CHASE 9 160 - 179 180 - 199 LASER LED CHASE 10 200 - 255 LASER LED CHASE 11 0 - 39 LASER CHASE 1 40 - 79...
  • Page 9 16 CHANNELS FUNCTION VALUE DESCRIPTION LED 1 DIMMER LED 1 DIMMER 0 - 255 LED 2 DIMMER LED 2 DIMMER 0 - 255 LED 3 DIMMER LED 3 DIMMER 0 - 255 LED 4 DIMMER LED 4 DIMMER 0 - 255 LED 5 DIMMER LED 5 DIMMER 0 - 255...
  • Page 10 CH17 TILT FINE TILT FINE 0 - 255 STOP TILT CH18 TILT SPEED 1 - 255 TILT SPEED (S>F) 21 CHANNELS FUNCTION VALUE DESCRIPTION LED 1 DIMMER LED 1 DIMMER 0 - 255 LED 2 DIMMER LED 2 DIMMER 0 - 255 LED 3 DIMMER LED 3 DIMMER 0 - 255...
  • Page 11 The electrical connection must only be carried out by qualified personal. Before installing, make sure you use the same power voltage marked in the MBAR 3230 R LASER MKII (AC 100-240V/50-60Hz). Each device must be properly grounded and installed in accordance with the relevant standards. Don’t use the device in a lightning storm or wet environment.

  • Page 12: Troubleshooting

    This short guide is meant to help and try to solve simple problems. If they continue and the device cannot operate, please, don’t try to repair it by yourself, return the device to your MARK dealer. If a problem occurs, carry out the following steps in sequence until find the problem solved. If the light effect does not operate properly, refer servicing to a technician.

  • Page 13: Indicaciones De Seguridad

    8. Proteja el cable de alimentación para no ser pisado o manipulado, particularmente en los conectores (mural y de entrada a la unidad). 9. Utilice únicamente accesorios especificados por MARK. 10. Desconecte el dispositivo si no va a ser utilizado durante largos periodos de tiempo.

  • Page 14: Aviso Importante

    AVISO IMPORTANTE!!! Este es un dispositivo LASER Clase 3B. Pueden producirse daños oculares como resultado de la exposición directa al LASER. Evite el contacto directo entre los ojos y el haz.

  • Page 15: Vista General

    VISTA GENERAL MBAR 3230 R LASER MKII es una barra de iluminación que incluye un doble efecto: por un lado, 6x LEDs de 3W c.u. de color blanco cálido (3200K de temperatura de color) y por otro 7 LASERs de color rojo.

  • Page 16: Instalación

    MBAR 3230 R LASER MKII se puede colocar en una superficie plana y estable o en un soporte, pero el modo de funcionamiento común es el rigging en un sistema truss. Por favor, compruebe y siga las...

  • Page 17: Instrucciones De Uso

    en el sistema, el último dispositivo de una cadena DMX debe estar equipado con una resistencia de terminación (120 Ohmios, 1/4 W). Ocupación de los pines Pin 1: Masa Pin 2: Pin - Pin 3: Pin + Para conectar más de una unidad, siga el siguiente esquema. La salida de la primera unidad se conecta a la entrada de la siguiente y así...
  • Page 18 Utilice los botones UP y DOWN para navegar entre cada función para seleccionar el valor correcto. (Pulse ENTER para confirmar la configuración). En la siguiente tabla se muestran todas las opciones para configurar el MBAR 3230 R LASER MKII en la interfaz del menú: MENÚ...
  • Page 19 rESt rESt RESET LAXX 01 - 06 CHASE LASER S0XX 01 - 99 VELOCIDAD CHASE LASER -LAS -LAS PARAR N. XX 02 - 99 ROTACIÓN TILT (S>F) LEXX 01 - 06 CHASE LED S0XX 01 - 99 VELOCIDAD CHASE LED -LEd -LEd PARAR N.
  • Page 20 CHASE LASER LED 2 20 - 39 CHASE LASER LED 3 40 - 59 CHASE LASER LED 4 60 - 79 CHASE LASER LED 5 80 - 99 CHASE LASER LED 6 100 - 119 120 - 139 CHASE LASER LED 7 140 - 159 CHASE LASER LED 8 CHASE LASER LED 9...
  • Page 21 16 CANALES FUNCIÓN VALOR DESCRIPCIÓN DIMMER LED 1 DIMMER LED 1 0 - 255 DIMMER LED 2 DIMMER LED 2 0 - 255 DIMMER LED 3 DIMMER LED 3 0 - 255 DIMMER LED 4 DIMMER LED 4 0 - 255 DIMMER LED 5 DIMMER LED 5 0 - 255...
  • Page 22 CH16 TILT ROTACIÓN 251 - 255 CH17 TILT FINE TILT FINO 0 - 255 PARAR TILT CH18 TILT SPEED VELOCIDAD DE TILT (S>F) 1 - 255 21 CANALES FUNCIÓN VALOR DESCRIPCIÓN DIMMER LED 1 DIMMER LED 1 0 - 255 DIMMER LED 2 DIMMER LED 2 0 - 255...
  • Page 23 4. No cubra la lente. 5. Si cambia alguna de las partes del dispositivo hágalo siempre con repuestos originales. Para ello contacte a su proveedor MARK. Desempaquetado: Antes de desembalar compruebe si ha habido daños y se han debido al transporte o no.
  • Page 24 Si el dispositivo tiene un problema, siga los siguientes puntos hasta que lo encuentre y pueda solucionarlo. Si la iluminación no funciona correctamente, envíe el dispositivo al servicio técnico MARK. Si el dispositivo no enciende: Posibles problemas: Fuente de alimentación.
