ZooZ ZEN75 800LR User Manual

USER MANUAL
HEAVY DUTY SWITCH
ZEN75 800LR
zooz
smart move
www.getzooz.com
ask@getzooz.com
FEATURES
Manual or Z-Wave on/off control with instant status updates
Ÿ
Works with LED lights up to 600 W, incandescent up to 1800 W
Ÿ
Works with motors 1 HP at 120VAC or 3 HP at 204 VAC
Ÿ
800 series Z-Wave chip for better range and faster control
Ÿ
Direct 3-Way: works with regular on/off switches in a 3-way
Ÿ
Scene control: trigger actions with multi-tap (select hubs only)
Ÿ
Smart bulb mode: disable relay and control the light via Z-Wave
Ÿ
Z-Wave Long Range for ultra reliable no-mesh communication
Ÿ
Remembers and restores on/off status a er power failure
Ÿ
SPECIFICATIONS
Model Number: ZEN75 800LR
Ÿ
Z-Wave Region: US / CA / MX
Ÿ
Power: 120-277V AC, 50/60 Hz
Ÿ
Maximum Load: 600W LED , 1800W Incandescent, 15 A Resistive /
Ÿ
Tungsten / Incandescent, 10 A Inductive Ballast / Electronic
Ballast / LED, 1 HP at 120 VAC / 3 HP at 240 VAC Motor
Range: Up to 500 feet line of sight (or 1300 feet with ZWLR)
Ÿ
Operating Temperature: 32-104° F (0-40° C)
Ÿ
Installation and Use: Indoor only
Ÿ
CAUTION
This is an electrical device - please use caution when installing and
operating the on/off switch. Remote control of appliances may result in
unintentional or automated activation of power.
Do not use this Z-Wave device to control electric heaters or other
appliances which produce the risk of fire, burns, or electrical shock
when unattended.
To reduce risk of overheating and possible damage to other equipment,
do not install this unit to control a receptacle; a motor-operated
appliance; a fluorescent lighting fixture; or a transformer-supplied
fixture.
BEFORE YOU INSTALL
This switch is intended for installation in accordance with the
National Electric Code and local regulations. It is recommen-
ded that a licensed electrician perform this installation.
WIRING: READ IT!
1. CHECK THE LOAD: make sure that the load you're about to
connect is within the electrical specs of this switch listed on
the back of the device. Do NOT overload the switch.
2. POWER OFF: turn the circuit power off in the breaker panel
before you start. If installing in a multi-switch box with
multiple circuits, turn power off at all of the circuits.
3. CHECK THE WIRES: mark load (most o en black), line
(most o en black), neutral (most o en white), and ground
(most o en bare). Don't rely exclusively on your multimeter
to identify the wires!
µ
NOT SURE WHAT YOU'RE SEEING? WE'LL HELP! SUPPORT.GETZOOZ.COM
SEND US PICTURES OF YOUR SET-UP, BEFORE YOU DISCONNECT WIRES.
4. REMOVE THE OLD SWITCH: disconnect the wires and label
them with the included label stickers.
5. CONNECT THE Z-WAVE SWITCH: follow all installation
steps carefully. Wire the switch EXACTLY like in the diagram.

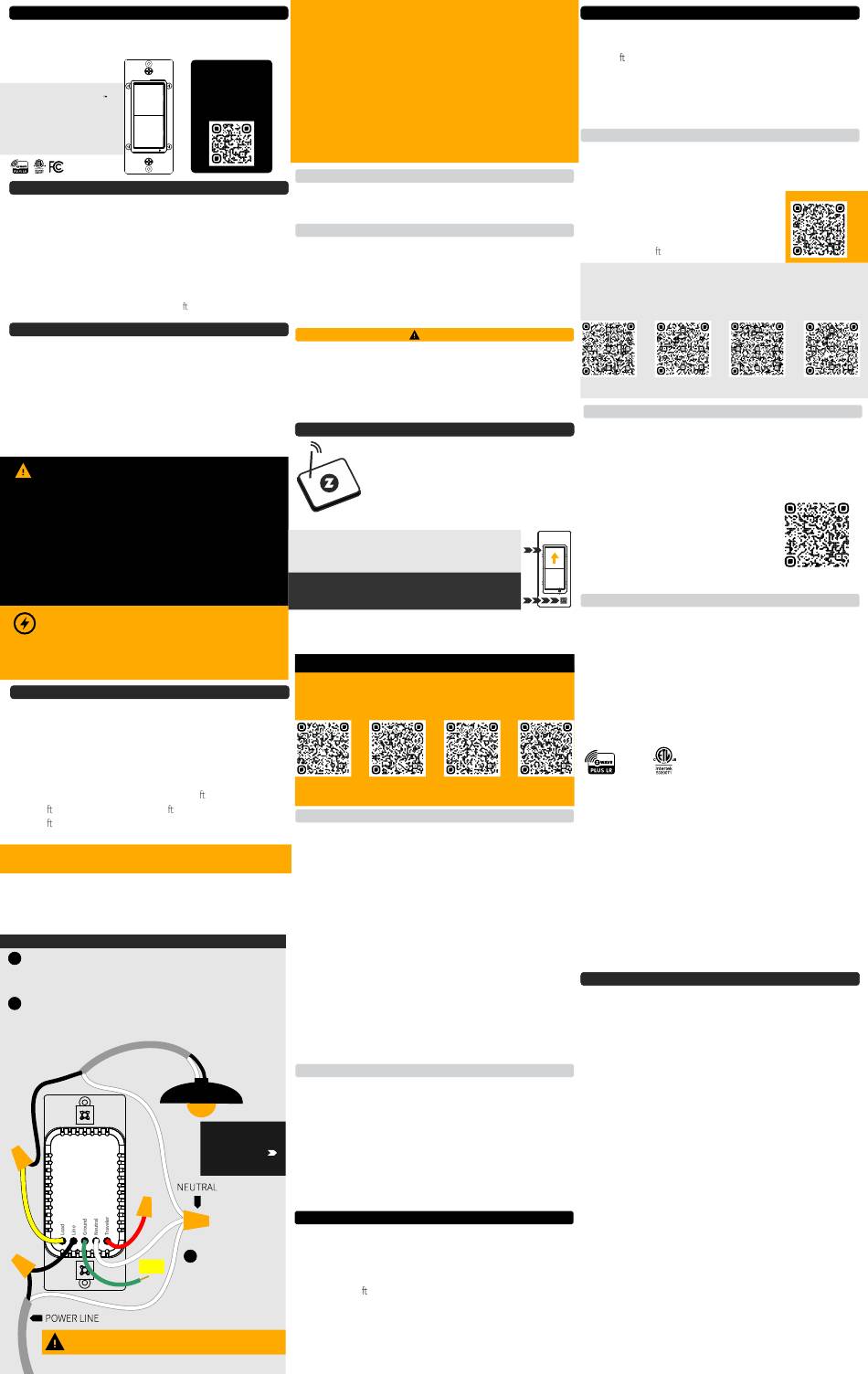

ZEN75 WIRING DIAGRAM FOR SINGLE POLE INSTALLATION
1 Connect the ground (bare) wire with the green Ground
pigtail on the switch (ground wires aren't shown in the
diagram).
2 Connect the power source wire with the black Line
pigtail and load wire to the yellow Load pigtail. Load and
line CAN'T be swapped, don't attempt unless you're
100% sure!
Zooz Heavy
Duty Switch
CONNECT
GROUND!
DON'T TURN THE POWER BACK ON UNTIL THE SWITCH
IS FULLY INSTALLED AND ARRANGED BACK IN THE BOX.
PAGE 1
Wire colors and romex layout are for illustration
only. You should not follow the colors and
positioning in the illustration blindly. Always
Scan to register
identify all wires prior to installing Zooz switches
your product for
and make sure you can match the diagrams to your
extended warranty
and direct access to
set-up exactly. Don't experiment or attempt a "trial-
firmware files.
and-error" installation for your own safety.
Always cap any exposed wires and isolate electrical
elements with appropriate protectiction.
Secure your Z-Wave switch in the box with mounting screws,
handling the wires with care. Isolate all bare wires with electrical
tape. Install the wall plate and only now restore power to circuit.
The LED indicator should light up as soon as you turn the power
back on if the switch (light) is OFF. Tap the upper paddle for ON
and lower paddle for OFF. If the test fails, please check that:
power is fully restored to the circuit
Ÿ
wiring matches the instructions exactly
Ÿ
the load isn't too large and overheating the switch causing it to
Ÿ
shut off
This product should be installed indoors upon completion of any building renovations.
Ÿ
Prior to installation, the device should be stored in a dry, dust-and-mold-proof place.
Ÿ
Ÿ Do not install the switch in a place with direct sun exposure, high temperature, or humidity.
Ÿ Keep away from chemicals, water, and dust.
Ensure the device is never close to any heat source or open flame to prevent fire.
Ÿ
Ensure the device is connected to an electric power source that does not exceed the
Ÿ
maximum load power.
No part of the device may be replaced or repaired by the user.
Ÿ
SCAN THE QR CODE / ENTER THE 5-DIGIT DSK
The LED indicator will blink blue to signal communication
and turn green for 3 seconds if inclusion is successful or turn
red for 3 seconds if the pairing attempt fails.
NEED SOME HELP? ask@getzooz.com
Choose your hub and scan the QR code with your phone's
camera. Then click on the link to access the step-by-step
pairing instructions.
SmartThings
Get more tutorials and helpful tips at ww.support.getzooz.com
The switch won't add to your system? Try this:
1. Initiate EXCLUSION and tap the lower paddle 3 times
quickly.
2. Tap the upper paddle 4-5 times quickly when adding it.
3. Bring the gateway controller (hub) closer to the switch, it
may be out of range.
4. Get troubleshooting tips for your hub at
www.support.getzooz.com
The switch won't control the lights manually anymore?
Try this:
1. Turn the power off at the breaker and check if a wire
didn't get loose.
2. Exclude the switch from the hub or reset it in case
manual control was accidentally disabled.
3. The load may be incompatible so try it with a single
incandescent bulb.
EXCLUSION (REMOVING / UNPAIRING DEVICE)
1. Bring your Z-Wave gateway (hub) close to the switch if
possible
2. Put the Z-Wave hub into exclusion mode (not sure how to
do that? ask@getzooz.com)
SEE BACK PAGE
FOR 3-WAY & 4-WAY 3. Tap the lower paddle on the switch 3 times quickly (the
DIAGRAMS AND
LED indicator will start blinking blue)
INSTRUCTIONS
4. Your hub will confirm exclusion, the LED indicator on the
switch will turn green for 3 seconds, and the device will
disappear from your controller's device list
If your primary controller is missing or inoperable, you may
need to reset the device to factory settings. To reset the
3 Connect the white
switch, press and hold the lower paddle for 10 seconds
Neutral pigtail to the
until the LED indicator starts blinking. Release paddle, and
neutral wire bundle.
immediately a er, tap the lower paddle 5 times to
Cap the red Traveler
complete the reset. The LED indicator will flash blue 3 times
pigtail on the switch.
and turn red for 3 seconds to confirm successful reset.
NOTE: All previously recorded activity and custom settings will be erased from
the device's memory.
SAFETY FIRST!
COMPLETE INSTALLATION
TEST THE SWITCH
WARNING
Z-WAVE CONTROL
1. ADD DEVICE to your hub
Initiate inclusion (pairing) in the app (or web
interface).
Not sure how? Scan one of the QR codes
below for step-by-step instructions or get in
touch: www.support.getzooz.com
2. Finalize inclusion at the switch.
TAP UP 3 TIMES QUICKLY
if using traditional Z-Wave inclusion.
if using the SmartStart method.
Hubitat Home Assistant
TROUBLESHOOTING
FACTORY RESET
PAGE 2
ADVANCED SETTINGS
Please refer to your controller's user guide for advanced
programming instructions as they are a little different for
every so ware.
Not sure where to start? Go to www.support.getzooz.com
for detailed instructions on how to change the settings
on SmartThings, Vera, and more.
Or just email us: ask@getzooz.com
CUSTOMIZE YOUR SWITCH
Here is a selection of settings available to customize your
switch. Scan the QR code for a full list of parameters and
look below for how to access them on your hub.
LED Indicator behavior, color, brightness:
Ÿ
6 x TAP UP to change the indicator mode
Smart Bulb Mode (disable the relay):
Ÿ
HOLD UP for 10 seconds then 5 x TAP UP
On/off status a er power failure
Ÿ
Choose your hub and scan the QR code with your phone's
camera. Then click on the link to learn how to access and
change the advanced settings for the switch on your hub.
SmartThings Hubitat
SCENE CONTROL
You can trigger scenes or control other connected devices in
your network using this switch. Just enable the setting in
Parameter 9 and verify that your hub supports scene control.
Assign scenes or actions to 1-tap, 2-tap, 3-tap, 4-tap, and 5-
tap as well as to held and released for any of the paddles.
Scan the QR code for scene control
programming instructions on your hub.
QUESTIONS?
ask@getzooz.com
This on/off switch supports Group 1 with up to 1 devices for
lifeline communication and Group 2 with up to 5 devices.
This device will send BASIC REPORT to Group 1 and BASIC
SET command to group 2 when operated manually.
You can set direct association to have the switch control
another Z-Wave device independently of the hub by using
Group 2. Not every hub exposes direct association settings in
the interface so please go to www.support.getzooz.com to
see if your system allows for direct association.
S2
Z-Box Hub
This product can be included and operated in any Z-Wave
network with other Z-Wave certified devices from other
manufacturers and/or other applications. All non-battery
operated nodes within the network will act as repeaters
regardless of vendor to increase reliability of the network.
This product features the latest Security 2 (S2) framework to
remove smart home network hacking risks. This device is
equipped with a unique authentication code for trusted
wireless communication.
This is an ETL certified device. ETL, just like UL, is a
Nationally Recognized Testing Laboratory. The ETL mark is
proof of product compliance with North American safety
standards.
This product is covered under a 1-year limited warranty and
extended 5-year warranty once registered. To read the full
warranty policy or file a warranty claim, please go to
www.getzooz.com/warranty
IN NO EVENT SHALL ZOOZ OR ITS SUBSIDIARIES AND AFFILIATES BE LIABLE FOR ANY INDIRECT,
INCIDENTAL, PUNITIVE, SPECIAL, OR CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS,
REVENUE, OR USE INCURRED BY CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT,
OR OTHERWISE EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DA-MAGES. ZOOZ'S LIABILITY AND
CUSTOMER'S EXCLUSIVE REMEDY FOR ANY CAUSE OF ACTION ARISING IN CON-NECTION WITH THIS
AGREEMENT OR THE SALE OR USE OF THE PRODUCTS, WHETHER BASED ON NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY, BREACH OF AGREEMENT, OR EQUITABLE PRINCIPLES, IS EXPRESSLY
LIMITED TO, AT ZOOZ'S OPTION, REPLACEMENT OF, OR REPAYMENT OF THE PURCHASE PRICE FOR THAT
PORTION OF PRODUCTS WITH RESPECT TO WHICH DA-MAGES ARE CLAIMED. ALL CLAIMS OF ANY KIND
ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF PRODUCTS SHALL BE DEEMED
WAIVED UNLESS MADE IN WRITING WITHIN THIRTY (30) DAYS FROM ZOOZ'S DELIVERY, OR THE DATE FIXED
FOR DELI-VERY IN THE EVENT OF NONDELIVERY.
FCC NOTE
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO
OPERATE THE EQUIPMENT. STORE INDOORS WHEN NOT IN USE. SUITABLE FOR DRY LOCATIONS ONLY. DO NOT
IMMERSE IN WATER. NOT FOR USE WHERE DIRECTLY EXPOSED TO WATER.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions:
1. This device may not cause harmful interference,
2. This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used according
to instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in any given installation.
If this equipment causes harmful interference to radio or television reception, the user may try to correct the
interference by taking one or more of the following measures:
- Reorient or relocate receiving antenna
- Increase the separation between equipment and receiver
- Connect equipment into a separate outlet or circuit from receiver
- Consult the dealer or an experienced radio/TV technician for additional assistance
All brand names displayed are trademarks of their respective holders.
© Zooz 2025
SCAN SETTINGS
Home Assistant Z-Box Hub
ASSOCIATION
WARRANTY
PAGE 3
