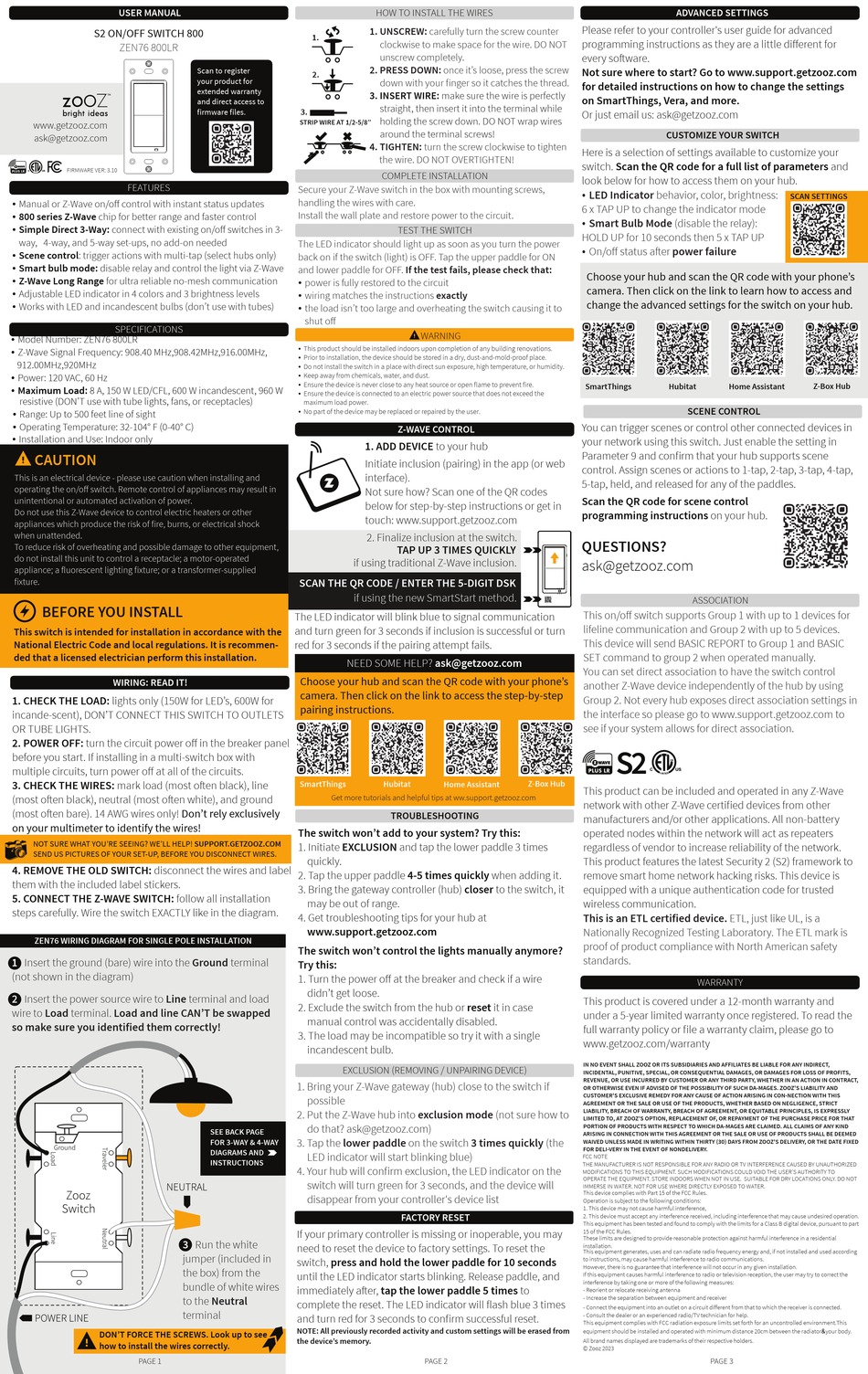

ZooZ 800LR User Manual

USER MANUAL

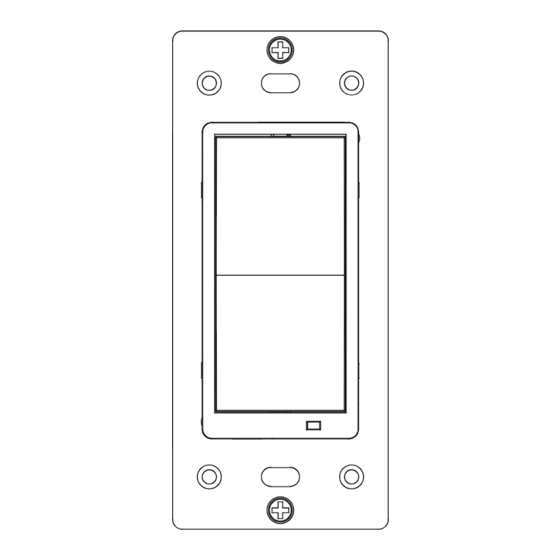

S2 ON/OFF SWITCH 800
ZEN76 800LR
www.getzooz.com
ask@getzooz.com
FIRMWARE VER: 3.10
FEATURES
Manual or Z-Wave on/off control with instant status updates
Ÿ
800 series Z-Wave chip for better range and faster control
Ÿ
Simple Direct 3-Way: connect with existing on/off switches in 3-
Ÿ
way, 4-way, and 5-way set-ups, no add-on needed
Scene control: trigger actions with multi-tap (select hubs only)
Ÿ
Smart bulb mode: disable relay and control the light via Z-Wave
Ÿ
Z-Wave Long Range for ultra reliable no-mesh communication
Ÿ
Adjustable LED indicator in 4 colors and 3 brightness levels
Ÿ
Works with LED and incandescent bulbs (don't use with tubes)
Ÿ
SPECIFICATIONS
Model Number: ZEN76 800LR
Ÿ
Z-Wave Signal Frequency: 908.40 MHz,908.42MHz,916.00MHz,
Ÿ
912.00MHz,920MHz
Power: 120 VAC, 60 Hz
Ÿ
Maximum Load: 8 A, 150 W LED/CFL, 600 W incandescent, 960 W
Ÿ
resistive (DON'T use with tube lights, fans, or receptacles)
Range: Up to 500 feet line of sight
Ÿ
Operating Temperature: 32-104° F (0-40° C)
Ÿ
Installation and Use: Indoor only
Ÿ
CAUTION
This is an electrical device - please use caution when installing and
operating the on/off switch. Remote control of appliances may result in
unintentional or automated activation of power.
Do not use this Z-Wave device to control electric heaters or other
appliances which produce the risk of fire, burns, or electrical shock
when unattended.
To reduce risk of overheating and possible damage to other equipment,
do not install this unit to control a receptacle; a motor-operated
appliance; a fluorescent lighting fixture; or a transformer-supplied
fixture.
BEFORE YOU INSTALL
This switch is intended for installation in accordance with the
National Electric Code and local regulations. It is recommen-
ded that a licensed electrician perform this installation.
WIRING: READ IT!
1. CHECK THE LOAD: lights only (150W for LED's, 600W for
incande-scent), DON'T CONNECT THIS SWITCH TO OUTLETS
OR TUBE LIGHTS.
2. POWER OFF: turn the circuit power off in the breaker panel
before you start. If installing in a multi-switch box with
multiple circuits, turn power off at all of the circuits.
3. CHECK THE WIRES: mark load (most o en black), line
(most o en black), neutral (most o en white), and ground
(most o en bare). 14 AWG wires only! Don't rely exclusively
on your multimeter to identify the wires!
µ
NOT SURE WHAT YOU'RE SEEING? WE'LL HELP! SUPPORT.GETZOOZ.COM
SEND US PICTURES OF YOUR SET-UP, BEFORE YOU DISCONNECT WIRES.
4. REMOVE THE OLD SWITCH: disconnect the wires and label
them with the included label stickers.
5. CONNECT THE Z-WAVE SWITCH: follow all installation
steps carefully. Wire the switch EXACTLY like in the diagram.
ZEN76 WIRING DIAGRAM FOR SINGLE POLE INSTALLATION
1 Insert the ground (bare) wire into the Ground terminal
(not shown in the diagram)
2 Insert the power source wire to Line terminal and load
wire to Load terminal. Load and line CAN'T be swapped
so make sure you identified them correctly!
DON'T FORCE THE SCREWS. Look up to see
how to install the wires correctly.
PAGE 1
1.
Scan to register
2.
your product for
extended warranty
and direct access to
3.
firmware files.
STRIP WIRE AT 1/2-5/8"
Secure your Z-Wave switch in the box with mounting screws,
handling the wires with care.
Install the wall plate and restore power to the circuit.
The LED indicator should light up as soon as you turn the power
back on if the switch (light) is OFF. Tap the upper paddle for ON
and lower paddle for OFF. If the test fails, please check that:
power is fully restored to the circuit
Ÿ
wiring matches the instructions exactly
Ÿ
the load isn't too large and overheating the switch causing it to
Ÿ
shut off
This product should be installed indoors upon completion of any building renovations.
Ÿ
Prior to installation, the device should be stored in a dry, dust-and-mold-proof place.
Ÿ
Ÿ Do not install the switch in a place with direct sun exposure, high temperature, or humidity.
Ÿ Keep away from chemicals, water, and dust.
Ensure the device is never close to any heat source or open flame to prevent fire.
Ÿ
Ensure the device is connected to an electric power source that does not exceed the
Ÿ
maximum load power.
No part of the device may be replaced or repaired by the user.
Ÿ
SCAN THE QR CODE / ENTER THE 5-DIGIT DSK
The LED indicator will blink blue to signal communication
and turn green for 3 seconds if inclusion is successful or turn
red for 3 seconds if the pairing attempt fails.
Choose your hub and scan the QR code with your phone's
camera. Then click on the link to access the step-by-step
pairing instructions.
SmartThings
Get more tutorials and helpful tips at ww.support.getzooz.com
The switch won't add to your system? Try this:
1. Initiate EXCLUSION and tap the lower paddle 3 times
quickly.
2. Tap the upper paddle 4-5 times quickly when adding it.
3. Bring the gateway controller (hub) closer to the switch, it
may be out of range.
4. Get troubleshooting tips for your hub at
www.support.getzooz.com
The switch won't control the lights manually anymore?
Try this:
1. Turn the power off at the breaker and check if a wire
didn't get loose.
2. Exclude the switch from the hub or reset it in case
manual control was accidentally disabled.
3. The load may be incompatible so try it with a single
incandescent bulb.
EXCLUSION (REMOVING / UNPAIRING DEVICE)
1. Bring your Z-Wave gateway (hub) close to the switch if
possible
2. Put the Z-Wave hub into exclusion mode (not sure how to
do that? ask@getzooz.com)
SEE BACK PAGE
FOR 3-WAY & 4-WAY 3. Tap the lower paddle on the switch 3 times quickly (the
DIAGRAMS AND
LED indicator will start blinking blue)
INSTRUCTIONS
4. Your hub will confirm exclusion, the LED indicator on the
switch will turn green for 3 seconds, and the device will
disappear from your controller's device list
If your primary controller is missing or inoperable, you may
3 Run the white
need to reset the device to factory settings. To reset the
jumper (included in
switch, press and hold the lower paddle for 10 seconds
the box) from the
until the LED indicator starts blinking. Release paddle, and
bundle of white wires
immediately a er, tap the lower paddle 5 times to
to the Neutral
complete the reset. The LED indicator will flash blue 3 times
terminal
and turn red for 3 seconds to confirm successful reset.
NOTE: All previously recorded activity and custom settings will be erased from
the device's memory.
HOW TO INSTALL THE WIRES
1. UNSCREW: carefully turn the screw counter
clockwise to make space for the wire. DO NOT
unscrew completely.
2. PRESS DOWN: once it's loose, press the screw
down with your finger so it catches the thread.
3. INSERT WIRE: make sure the wire is perfectly
straight, then insert it into the terminal while
holding the screw down. DO NOT wrap wires
around the terminal screws!
4. TIGHTEN: turn the screw clockwise to tighten
the wire. DO NOT OVERTIGHTEN!
COMPLETE INSTALLATION
TEST THE SWITCH
WARNING
Z-WAVE CONTROL
1. ADD DEVICE to your hub
Initiate inclusion (pairing) in the app (or web
interface).
Not sure how? Scan one of the QR codes
below for step-by-step instructions or get in
touch: www.support.getzooz.com
2. Finalize inclusion at the switch.
TAP UP 3 TIMES QUICKLY
if using traditional Z-Wave inclusion.
if using the new SmartStart method.
NEED SOME HELP? ask@getzooz.com
Hubitat
Home Assistant
TROUBLESHOOTING
FACTORY RESET
PAGE 2
ADVANCED SETTINGS
Please refer to your controller's user guide for advanced
programming instructions as they are a little different for
every so ware.
Not sure where to start? Go to www.support.getzooz.com
for detailed instructions on how to change the settings
on SmartThings, Vera, and more.
Or just email us: ask@getzooz.com
CUSTOMIZE YOUR SWITCH
Here is a selection of settings available to customize your
switch. Scan the QR code for a full list of parameters and
look below for how to access them on your hub.
LED Indicator behavior, color, brightness:
Ÿ
6 x TAP UP to change the indicator mode
Smart Bulb Mode (disable the relay):
Ÿ
HOLD UP for 10 seconds then 5 x TAP UP
On/off status a er power failure
Ÿ
Choose your hub and scan the QR code with your phone's
camera. Then click on the link to learn how to access and
change the advanced settings for the switch on your hub.
SmartThings Hubitat
SCENE CONTROL
You can trigger scenes or control other connected devices in
your network using this switch. Just enable the setting in
Parameter 9 and confirm that your hub supports scene
control. Assign scenes or actions to 1-tap, 2-tap, 3-tap, 4-tap,
5-tap, held, and released for any of the paddles.
Scan the QR code for scene control
programming instructions on your hub.
QUESTIONS?
ask@getzooz.com
This on/off switch supports Group 1 with up to 1 devices for
lifeline communication and Group 2 with up to 5 devices.
This device will send BASIC REPORT to Group 1 and BASIC
SET command to group 2 when operated manually.
You can set direct association to have the switch control
another Z-Wave device independently of the hub by using
Group 2. Not every hub exposes direct association settings in
the interface so please go to www.support.getzooz.com to
see if your system allows for direct association.
S2
Z-Box Hub
This product can be included and operated in any Z-Wave
network with other Z-Wave certified devices from other
manufacturers and/or other applications. All non-battery
operated nodes within the network will act as repeaters
regardless of vendor to increase reliability of the network.
This product features the latest Security 2 (S2) framework to
remove smart home network hacking risks. This device is
equipped with a unique authentication code for trusted
wireless communication.
This is an ETL certified device. ETL, just like UL, is a
Nationally Recognized Testing Laboratory. The ETL mark is
proof of product compliance with North American safety
standards.
This product is covered under a 12-month warranty and
under a 5-year limited warranty once registered. To read the
full warranty policy or file a warranty claim, please go to
www.getzooz.com/warranty
IN NO EVENT SHALL ZOOZ OR ITS SUBSIDIARIES AND AFFILIATES BE LIABLE FOR ANY INDIRECT,
INCIDENTAL, PUNITIVE, SPECIAL, OR CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS,
REVENUE, OR USE INCURRED BY CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT,
OR OTHERWISE EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DA-MAGES. ZOOZ'S LIABILITY AND
CUSTOMER'S EXCLUSIVE REMEDY FOR ANY CAUSE OF ACTION ARISING IN CON-NECTION WITH THIS
AGREEMENT OR THE SALE OR USE OF THE PRODUCTS, WHETHER BASED ON NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY, BREACH OF AGREEMENT, OR EQUITABLE PRINCIPLES, IS EXPRESSLY
LIMITED TO, AT ZOOZ'S OPTION, REPLACEMENT OF, OR REPAYMENT OF THE PURCHASE PRICE FOR THAT
PORTION OF PRODUCTS WITH RESPECT TO WHICH DA-MAGES ARE CLAIMED. ALL CLAIMS OF ANY KIND
ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF PRODUCTS SHALL BE DEEMED
WAIVED UNLESS MADE IN WRITING WITHIN THIRTY (30) DAYS FROM ZOOZ'S DELIVERY, OR THE DATE FIXED
FOR DELI-VERY IN THE EVENT OF NONDELIVERY.
FCC NOTE
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO
OPERATE THE EQUIPMENT. STORE INDOORS WHEN NOT IN USE. SUITABLE FOR DRY LOCATIONS ONLY. DO NOT
IMMERSE IN WATER. NOT FOR USE WHERE DIRECTLY EXPOSED TO WATER.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions:
1. This device may not cause harmful interference,
2. This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used according
to instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in any given installation.
If this equipment causes harmful interference to radio or television reception, the user may try to correct the
interference by taking one or more of the following measures:
- Reorient or relocate receiving antenna
- Increase the separation between equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This
equipment should be installed and operated with minimum distance 20cm between the radiator&your body.
All brand names displayed are trademarks of their respective holders.
© Zooz 2023
SCAN SETTINGS
Home Assistant Z-Box Hub
ASSOCIATION
WARRANTY
PAGE 3
