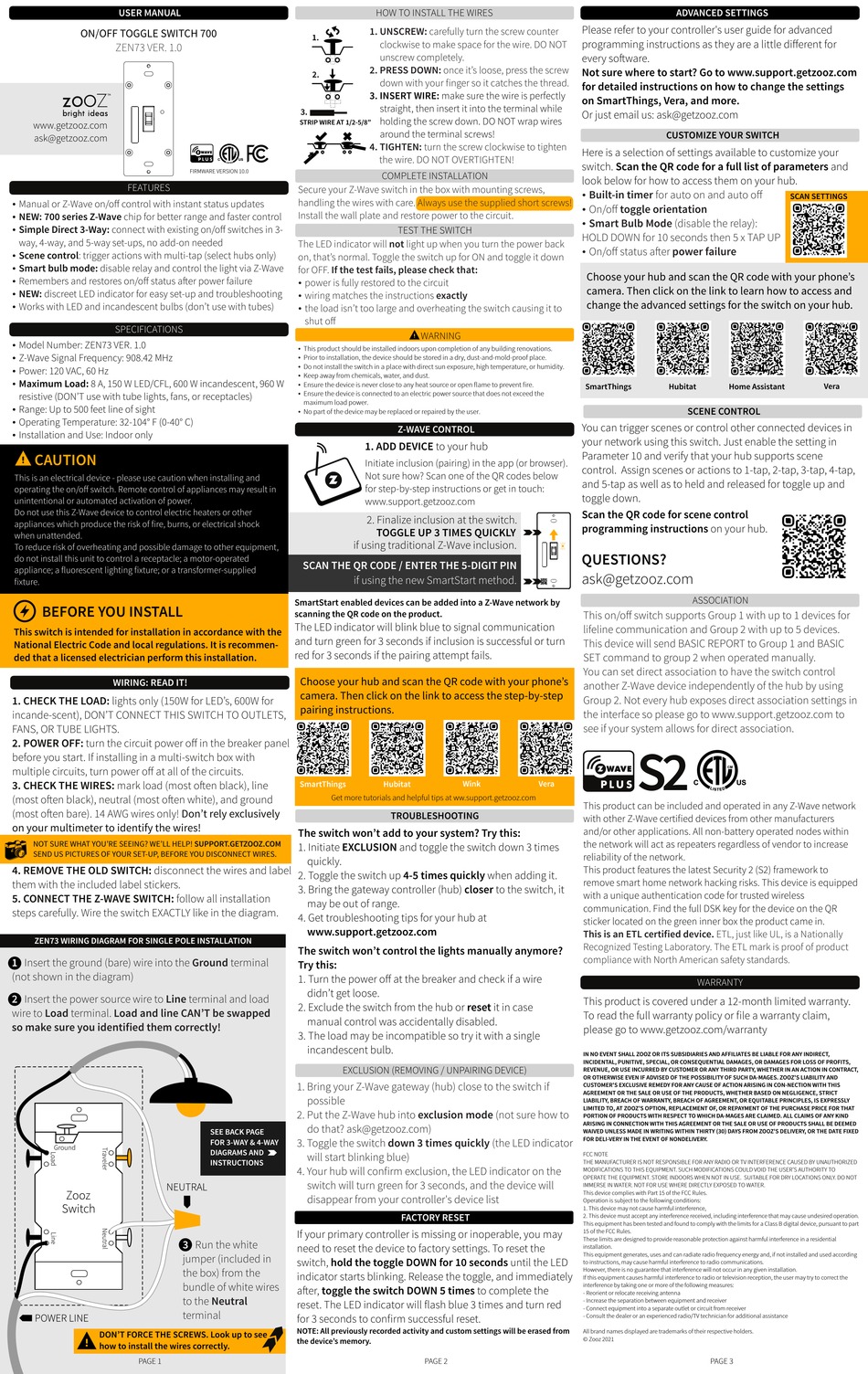

ZooZ ZEN73 User Manual

USER MANUAL
ON/OFF TOGGLE SWITCH 700
ZEN73 VER. 1.0
www.getzooz.com
ask@getzooz.com

FEATURES

Manual or Z-Wave on/off control with instant status updates
Ÿ
NEW: 700 series Z-Wave chip for better range and faster control
Ÿ
Simple Direct 3-Way: connect with existing on/off switches in 3-
Ÿ
way, 4-way, and 5-way set-ups, no add-on needed
Scene control: trigger actions with multi-tap (select hubs only)
Ÿ
Smart bulb mode: disable relay and control the light via Z-Wave
Ÿ
Remembers and restores on/off status a er power failure
Ÿ
NEW: discreet LED indicator for easy set-up and troubleshooting
Ÿ
Works with LED and incandescent bulbs (don't use with tubes)
Ÿ

SPECIFICATIONS

Model Number: ZEN73 VER. 1.0
Ÿ
Z-Wave Signal Frequency: 908.42 MHz
Ÿ
Power: 120 VAC, 60 Hz
Ÿ
Maximum Load: 8 A, 150 W LED/CFL, 600 W incandescent, 960 W
Ÿ
resistive (DON'T use with tube lights, fans, or receptacles)
Range: Up to 500 feet line of sight
Ÿ
Operating Temperature: 32-104° F (0-40° C)
Ÿ
Installation and Use: Indoor only
Ÿ
CAUTION
This is an electrical device - please use caution when installing and
operating the on/off switch. Remote control of appliances may result in
unintentional or automated activation of power.
Do not use this Z-Wave device to control electric heaters or other
appliances which produce the risk of fire, burns, or electrical shock
when unattended.
To reduce risk of overheating and possible damage to other equipment,
do not install this unit to control a receptacle; a motor-operated
appliance; a fluorescent lighting fixture; or a transformer-supplied
fixture.
BEFORE YOU INSTALL
This switch is intended for installation in accordance with the
National Electric Code and local regulations. It is recommen-
ded that a licensed electrician perform this installation.

WIRING: READ IT!

1. CHECK THE LOAD: lights only (150W for LED's, 600W for
incande-scent), DON'T CONNECT THIS SWITCH TO OUTLETS,
FANS, OR TUBE LIGHTS.
2. POWER OFF: turn the circuit power off in the breaker panel
before you start. If installing in a multi-switch box with
multiple circuits, turn power off at all of the circuits.
3. CHECK THE WIRES: mark load (most o en black), line
(most o en black), neutral (most o en white), and ground
(most o en bare). 14 AWG wires only! Don't rely exclusively
on your multimeter to identify the wires!
µ
NOT SURE WHAT YOU'RE SEEING? WE'LL HELP! SUPPORT.GETZOOZ.COM
SEND US PICTURES OF YOUR SET-UP, BEFORE YOU DISCONNECT WIRES.
4. REMOVE THE OLD SWITCH: disconnect the wires and label
them with the included label stickers.
5. CONNECT THE Z-WAVE SWITCH: follow all installation
steps carefully. Wire the switch EXACTLY like in the diagram.

ZEN73 WIRING DIAGRAM FOR SINGLE POLE INSTALLATION

1 Insert the ground (bare) wire into the Ground terminal
(not shown in the diagram)
2 Insert the power source wire to Line terminal and load
wire to Load terminal. Load and line CAN'T be swapped
so make sure you identified them correctly!
DON'T FORCE THE SCREWS. Look up to see
how to install the wires correctly.
PAGE 1
1.
2.
3.
STRIP WIRE AT 1/2-5/8"
FIRMWARE VERSION 10.0
Secure your Z-Wave switch in the box with mounting screws,
handling the wires with care. Always use the supplied short screws!
Install the wall plate and restore power to the circuit.
The LED indicator will not light up when you turn the power back
on, that's normal. Toggle the switch up for ON and toggle it down
for OFF. If the test fails, please check that:
power is fully restored to the circuit
Ÿ
wiring matches the instructions exactly
Ÿ
the load isn't too large and overheating the switch causing it to
Ÿ
shut off
This product should be installed indoors upon completion of any building renovations.
Ÿ
Prior to installation, the device should be stored in a dry, dust-and-mold-proof place.
Ÿ
Ÿ Do not install the switch in a place with direct sun exposure, high temperature, or humidity.
Ÿ Keep away from chemicals, water, and dust.
Ensure the device is never close to any heat source or open flame to prevent fire.
Ÿ
Ensure the device is connected to an electric power source that does not exceed the
Ÿ
maximum load power.
No part of the device may be replaced or repaired by the user.
Ÿ
SCAN THE QR CODE / ENTER THE 5-DIGIT PIN
SmartStart enabled devices can be added into a Z-Wave network by
scanning the QR code on the product.
The LED indicator will blink blue to signal communication
and turn green for 3 seconds if inclusion is successful or turn
red for 3 seconds if the pairing attempt fails.
Choose your hub and scan the QR code with your phone's
camera. Then click on the link to access the step-by-step
pairing instructions.
SmartThings
Get more tutorials and helpful tips at ww.support.getzooz.com
The switch won't add to your system? Try this:
1. Initiate EXCLUSION and toggle the switch down 3 times
quickly.
2. Toggle the switch up 4-5 times quickly when adding it.
3. Bring the gateway controller (hub) closer to the switch, it
may be out of range.
4. Get troubleshooting tips for your hub at
www.support.getzooz.com
The switch won't control the lights manually anymore?
Try this:
1. Turn the power off at the breaker and check if a wire
didn't get loose.
2. Exclude the switch from the hub or reset it in case
manual control was accidentally disabled.
3. The load may be incompatible so try it with a single
incandescent bulb.

EXCLUSION (REMOVING / UNPAIRING DEVICE)

1. Bring your Z-Wave gateway (hub) close to the switch if
possible
2. Put the Z-Wave hub into exclusion mode (not sure how to
do that? ask@getzooz.com)
SEE BACK PAGE
FOR 3-WAY & 4-WAY 3. Toggle the switch down 3 times quickly (the LED indicator
DIAGRAMS AND
will start blinking blue)
INSTRUCTIONS
4. Your hub will confirm exclusion, the LED indicator on the
switch will turn green for 3 seconds, and the device will
disappear from your controller's device list
If your primary controller is missing or inoperable, you may
3 Run the white
need to reset the device to factory settings. To reset the
jumper (included in
switch, hold the toggle DOWN for 10 seconds until the LED
the box) from the
indicator starts blinking. Release the toggle, and immediately
bundle of white wires
a er, toggle the switch DOWN 5 times to complete the
to the Neutral
reset. The LED indicator will flash blue 3 times and turn red
terminal
for 3 seconds to confirm successful reset.
NOTE: All previously recorded activity and custom settings will be erased from
the device's memory.

HOW TO INSTALL THE WIRES

1. UNSCREW: carefully turn the screw counter
clockwise to make space for the wire. DO NOT
unscrew completely.
2. PRESS DOWN: once it's loose, press the screw
down with your finger so it catches the thread.
3. INSERT WIRE: make sure the wire is perfectly
straight, then insert it into the terminal while
holding the screw down. DO NOT wrap wires
around the terminal screws!
4. TIGHTEN: turn the screw clockwise to tighten
the wire. DO NOT OVERTIGHTEN!

COMPLETE INSTALLATION

TEST THE SWITCH

WARNING

Z-WAVE CONTROL

1. ADD DEVICE to your hub
Initiate inclusion (pairing) in the app (or browser).
Not sure how? Scan one of the QR codes below
for step-by-step instructions or get in touch:
www.support.getzooz.com
2. Finalize inclusion at the switch.
TOGGLE UP 3 TIMES QUICKLY
if using traditional Z-Wave inclusion.
if using the new SmartStart method.
Hubitat Wink

TROUBLESHOOTING

FACTORY RESET

PAGE 2

ADVANCED SETTINGS

Please refer to your controller's user guide for advanced
programming instructions as they are a little different for
every so ware.
Not sure where to start? Go to www.support.getzooz.com
for detailed instructions on how to change the settings
on SmartThings, Vera, and more.
Or just email us: ask@getzooz.com
CUSTOMIZE YOUR SWITCH
Here is a selection of settings available to customize your
switch. Scan the QR code for a full list of parameters and
look below for how to access them on your hub.
Built-in timer for auto on and auto off
Ÿ
On/off toggle orientation
Ÿ
Smart Bulb Mode (disable the relay):
Ÿ
HOLD DOWN for 10 seconds then 5 x TAP UP
On/off status a er power failure
Ÿ
Choose your hub and scan the QR code with your phone's
camera. Then click on the link to learn how to access and
change the advanced settings for the switch on your hub.
SmartThings Hubitat
SCENE CONTROL
You can trigger scenes or control other connected devices in
your network using this switch. Just enable the setting in
Parameter 10 and verify that your hub supports scene
control. Assign scenes or actions to 1-tap, 2-tap, 3-tap, 4-tap,
and 5-tap as well as to held and released for toggle up and
toggle down.
Scan the QR code for scene control
programming instructions on your hub.
QUESTIONS?
ask@getzooz.com
ASSOCIATION
This on/off switch supports Group 1 with up to 1 devices for
lifeline communication and Group 2 with up to 5 devices.
This device will send BASIC REPORT to Group 1 and BASIC
SET command to group 2 when operated manually.
You can set direct association to have the switch control
another Z-Wave device independently of the hub by using
Group 2. Not every hub exposes direct association settings in
the interface so please go to www.support.getzooz.com to
see if your system allows for direct association.
S2
Vera
This product can be included and operated in any Z-Wave network
with other Z-Wave certified devices from other manufacturers
and/or other applications. All non-battery operated nodes within
the network will act as repeaters regardless of vendor to increase
reliability of the network.
This product features the latest Security 2 (S2) framework to
remove smart home network hacking risks. This device is equipped
with a unique authentication code for trusted wireless
communication. Find the full DSK key for the device on the QR
sticker located on the green inner box the product came in.
This is an ETL certified device. ETL, just like UL, is a Nationally
Recognized Testing Laboratory. The ETL mark is proof of product
compliance with North American safety standards.
WARRANTY
This product is covered under a 12-month limited warranty.
To read the full warranty policy or file a warranty claim,
please go to www.getzooz.com/warranty
IN NO EVENT SHALL ZOOZ OR ITS SUBSIDIARIES AND AFFILIATES BE LIABLE FOR ANY INDIRECT,
INCIDENTAL, PUNITIVE, SPECIAL, OR CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS,
REVENUE, OR USE INCURRED BY CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT,
OR OTHERWISE EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DA-MAGES. ZOOZ'S LIABILITY AND
CUSTOMER'S EXCLUSIVE REMEDY FOR ANY CAUSE OF ACTION ARISING IN CON-NECTION WITH THIS
AGREEMENT OR THE SALE OR USE OF THE PRODUCTS, WHETHER BASED ON NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY, BREACH OF AGREEMENT, OR EQUITABLE PRINCIPLES, IS EXPRESSLY
LIMITED TO, AT ZOOZ'S OPTION, REPLACEMENT OF, OR REPAYMENT OF THE PURCHASE PRICE FOR THAT
PORTION OF PRODUCTS WITH RESPECT TO WHICH DA-MAGES ARE CLAIMED. ALL CLAIMS OF ANY KIND
ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF PRODUCTS SHALL BE DEEMED
WAIVED UNLESS MADE IN WRITING WITHIN THIRTY (30) DAYS FROM ZOOZ'S DELIVERY, OR THE DATE FIXED
FOR DELI-VERY IN THE EVENT OF NONDELIVERY.
FCC NOTE
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO
OPERATE THE EQUIPMENT. STORE INDOORS WHEN NOT IN USE. SUITABLE FOR DRY LOCATIONS ONLY. DO NOT
IMMERSE IN WATER. NOT FOR USE WHERE DIRECTLY EXPOSED TO WATER.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions:
1. This device may not cause harmful interference,
2. This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used according
to instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in any given installation.
If this equipment causes harmful interference to radio or television reception, the user may try to correct the
interference by taking one or more of the following measures:
- Reorient or relocate receiving antenna
- Increase the separation between equipment and receiver
- Connect equipment into a separate outlet or circuit from receiver
- Consult the dealer or an experienced radio/TV technician for additional assistance
All brand names displayed are trademarks of their respective holders.
© Zooz 2021
SCAN SETTINGS
Home Assistant Vera
PAGE 3
