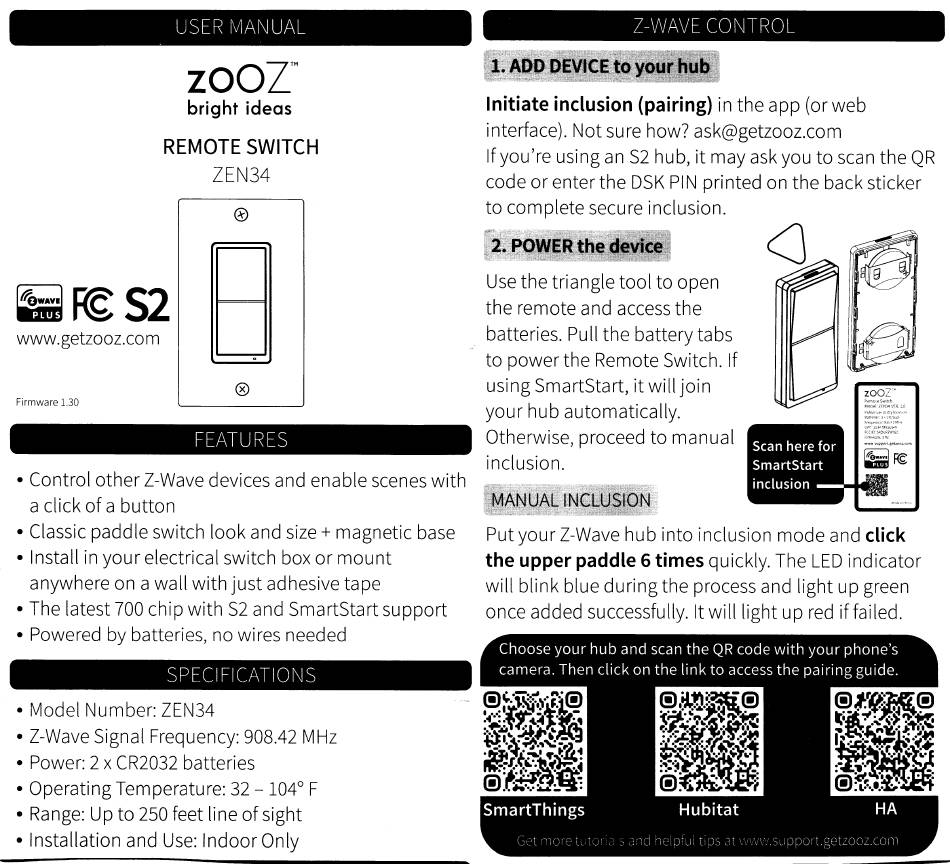

ZooZ ZEN34 User Manual

USER MANUAL Z-WAVE CONTROL
PLUS
z0OZT
bright ideas

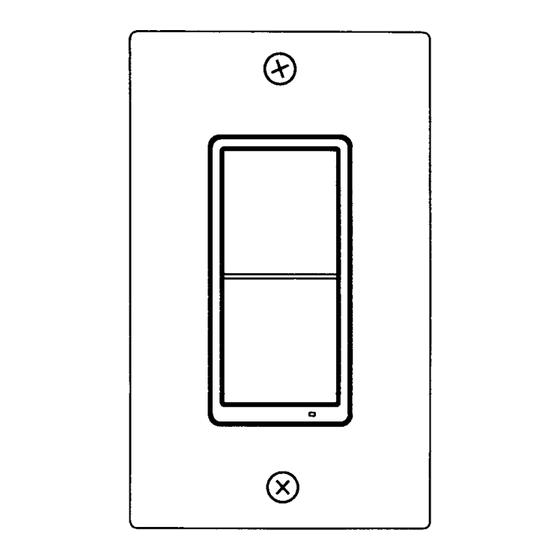

REMOTE SWITCH
ZEN34
RS2
www.getzooz.com
Firmware 1.30
FEATURES
• Control other Z-Wave devices and enable scenes with
a click ofa button
• Classic paddle switch look and size + magnetic base
• Install in your electrical switch box or mount
anywhere on a wall with just adhesive tape
• The latest 700 chip with S2 and SmartStart support
• Powered by batteries, no wires needed
SPECI FICATIONS
• Model Number: ZEN34
• Z-Wave Signal Frequency: 908.42 MHz
• Power: 2 x CR2032 batteries
• Operating Temperature: 32- 104° F
• Range: Up to 250 feet line of sight
• Installation and Use: Indoor Only
1. ABD DEVICE to your hub
Initiate inclusion (pairing) in the app (or web
interface). Not sure how? ask@getzooz.com
If you're using an S2 hub, it may ask you to scan the QR
code or enter the DSK PIN printed on the back sticker
to complete secure inclusion.
. POWER
the
device
Use the triangle tool to open
the remote and access the
batteries. Pull the battery tabs
to power the Remote Switch. If
using SmartStart, it will join
your hub automatically.
Otherwise, proceed to manual
inclusion.
MANUAL INCLUSION
Scan here for
SmartStart
inclusion
Put your Z-Wave hub into inclusion mode and click
the upper paddle 6 times quickly. The LED indicator
will blink blue during the process and light up green
once added successfully. It will light up red if failed.
choose your hub and scan the QR code with your phone's
camera. Then click on the link to access the pairing guide.
SmartThings Hubitat
HA
Get more L
1O00 S
and deipfLi i tips at www.support.getzooz.com
