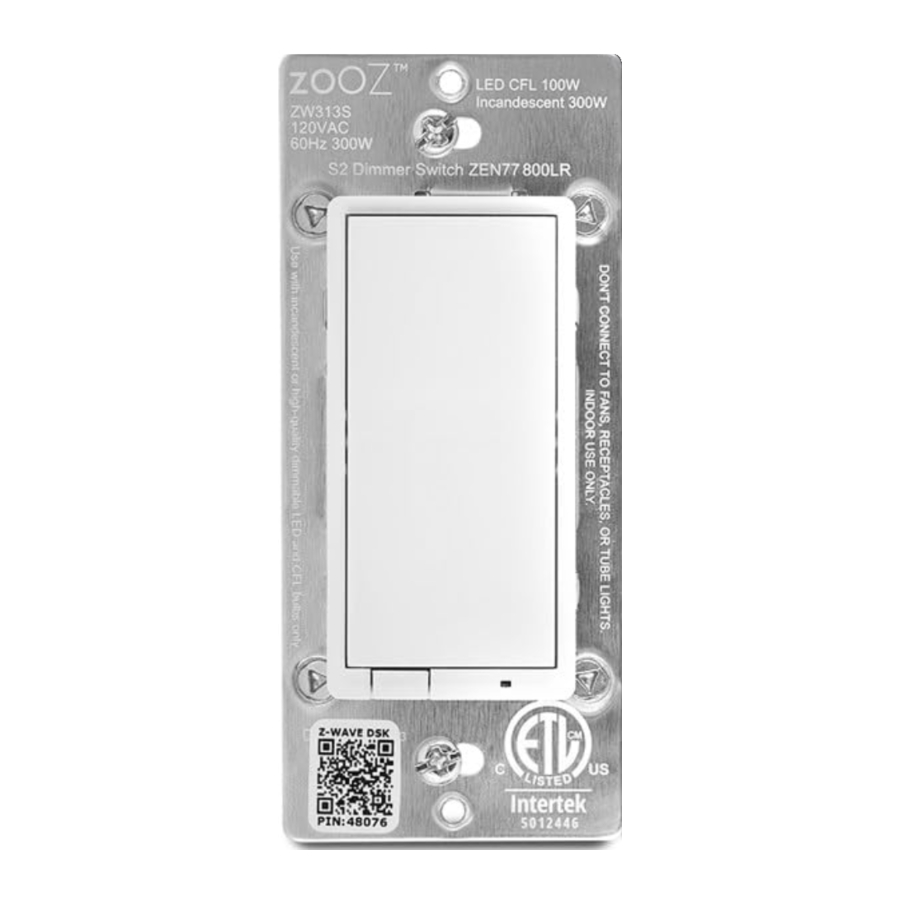

Zooz 700 Series, ZEN77 - Dimmer Switch Manual

FEATURES

  • Manual or Z-Wave on/off and brightness control
  • NEW: 700 series Z-Wave chip for better range and faster control
  • Simple Direct 3-Way: connect with existing on/off switches in 3- way, 4-way, and 5-way sebups, no add-on needed
  • Scene control: trigger actions with multi-tap (select hubs only)
  • Smart bulb mode: disable relay and control the light via Z-Wave
  • Night light mode: press down when off to turn lights on to 20%
  • Adjustable LEDindicator in 4 colors and 3 brightness levels
  • Works with LED and incandescent bulbs (don't use with tubes)

SPECIFICATIONS

  • Model Number: ZEN77 VER. 1.0
  • Z-Wave Signal Frequency: 908.42 MHz
  • Power: 120 VAC, 60 Hz
  • Maximum Load: 100 W LED, 300 W incandescent; DON'T use with fans or tube lights
  • Range: Up to 500 feet line of sight
  • Operating Temperature: 32-104°F (0-40°C)
  • Installation and Use Indoor only

burn hazardburn hazard
This is an electrical device - please use caution when installing and operating the dimmer switch. Remote control of appliances may result in unintentional or automated activation of power. Do not use this Z-Wave device to control electric heaters or other appliances which produce the risk of fire, burns, or electrical shock when unattended.
To reduce risk of overheating and possible damage to other equipment, do not install this unit to control a receptacle; a motor-operated appliance; a fluorescent lighting fixture; or atransformer-supplied fixture.

BEFORE YOU INSTALL
This switch is intended for installation in accordance with the National Electric Code and local regulations. It is recommended that a licensed electrician perform this installation.

WIRING

  1. CHECKTHE LOAD: lights only (100W for LED's, 300W for incandescent), DON'T CONNECT THIS SWITCH TO OUTLETS OR TUBE LIGHTS.
  2. POWER OFF: turn the circuit power off in the breaker panel before you start. If installing in a multi-switch box with multiple circuits, turn power off at all of the circuits.
  3. CHECK THE WIRES: mark load (most often black), line (most often black), neutral (most often white), and ground (most often bare). 14 AWG wires only! Don't rely exclusively on your multimeter to identify the wires!
    NOT SURE WHAT YOU'RE SEEING? WE'LL HELP! SUPPORT.GETZOOZ.COM SEND US PICTURES OF YOUR SET-UP, BEFORE YOU DISCONNECT WIRES.
  4. REMOVE THE OLD SWITCH: disconnect the wires and label them with the included label stickers.
  5. CONNECT THE Z-WAVE SWITCH: follow all installation steps carefully. Wire the switch EXACTLY like in the diagram.

PRODUCT WIRING DIAGRAM FOR SINGLE POLE INSTALLATION

WIRING DIAGRAM FOR SINGLE POLE INSTALLATION

  1. Insert the ground (bare) wire into the Ground terminal (not shown in the diagram)
  2. Insert the power source wire to Line terminal and load wire to Load terminal. Load and line CAN'T be swapped so make sure you identified them correctly!
  3. Run the white jumper (included in the box) from the bundle of white wires to the Neutral terminal

warning DON'T FORCE THE SCREWS. Lookup to see how to install the wires correctly.

HOW TO INSTALL THE WIRES

  1. UNSCREW: carefully turn the screw counter clockwise to make space for the wire. DO NOT unscrew completely.
  2. PRESS DOWN: once it's loose, press the screw down with your finger so it catches the thread.
  3. INSERT WIRE: make sure the wire is perfectly straight, then insert it into the terminal while holding the screw down. DO NOT wrap wires around the terminal screws!
  4. TIGHTEN: turn the screw clockwise to tighten the wire. DO NOT OVERTIGHTEN!

COMPLETE INSTALLATION

Secure your Z-Wave switch in the box with mounting screws, handling the wires with care.
Install the wall plate and restore power to the circuit.

TEST THE DEVICE

The LED indicator should light up as soon as you turn the power back on if the switch (light) is OFF. Tap the upper paddle for ON and lower paddle for OFF. If the test fails, please check that:

  • power is fully restored to the circuit
  • wiring matches the instructions exactly
  • the load isn't too large and overheating the switch causing it to shutoff

  • This product should be installed indoors upon completion of any building renovations.
  • Prior to installation, the device should be stored in a dry, dust-and-mold-proof place.
  • Do not install the switch in a place with direct sun exposure, high temperature, or humidity.
  • Keep away from chemicals, water, and dust.
  • burn hazard Ensure the device is never close to any heat source or open flame to prevent fire.
  • Ensure the device is connected to an electric power source that does not exceed the maximum load power. No part of the device may be replaced or repaired by the use

Z-WAVE CONTROL

  1. ADD DEVICE to your hub Initiate inclusion (pairing) in the app (or web interface).
    Not sure how? Scan one of the QR codes below for step by step instructions or get in touch: www.support.getzooz.com
  2. Finalize inclusion at the switch.
    TAP UP 3 TIMES QUICKLY
    if using traditional Z-Wave inclusion.
    SCAN THE QR CODE / ENTER THE 5-DIGIT DSK
    if using the new SmartStart method.

The LED indicator will blink blue to signal communication and turn green for 3 seconds if inclusion is successfulor turn red for 3 seconds if the pairing attempt fails.

NEED SOME HELP? ask@getzooz.com
Choose your hub and scan the QR code with your phone's camera. Then click on the link to access the step-by-step pairing instructions.

SmartThings

Hubitat

Wink

Vera

Get more tutorials and helpful tips at www.support.getzooz.com

TROUBLESHOOTING

The unit won't add to your system

Try this:

  1. Initiate EXCLUSION and tap the ower paddle 3 times quickly.
  2. Tap the upper paddle 4-5 times quickly when adding it.
  3. Bring the gateway control er (hub) closer to the switch, it may be out of range.
  4. Get troubleshooting tips for your hub at www.support.getzooz.com

The unit won't control the lights manually anymore

Try this:

  1. Turn the power off at the breakerand check if a wire didn't get loose.
  2. Exclude the switch from the hub or reset it in case manual control was accidentally disabled.
  3. The load may be incompatible so try it with a single incandescent bulb.

REMOVING/UNPAIRING DEVICE

  1. Bring your Z-Wavegateway (hub) close to the switch if possible
  2. Put the Z-Wave hub into exclusion mode (not sure how to do that? ask@getzooz.com)
  3. Tap the lower paddle on the switch 3 times quickly (the LED indicator will start blinking blue)
  4. Your hub will confirm exclusion, the LEDindicator on the switch will turn green for 3 seconds, and the device will disappear from your controller's device list

FACTORY RESET

If your primary controller is missing or inoperable, you may need to resetthe device to factory settings. To reset the switch, press and hold the lower paddle for 10 seconds until the LED indicator starts blinking. Release paddle, and immediately after, tap the lower paddle 5 times to complete the reset. The LED indicator will flash blue 3 times and turn red for 3 seconds to confirm successful reset.
NOTE: All previously recorded activity and custom settings will be erased from the device's memory.

ADVANCED SETTINGS

Please refer to your controller's user guide for advanced programming instructions asthey are a little different for every software.
Not sure where to start? Go to www.support.getzooz.com for detailed instructions on how to change the settings on SmartThings, Vera, and more.
Or just email us: ask@getzooz.com

CUSTOMIZE YOUR DEVICE

Here is a selection of settings available to customize your dimmer. Scan the QR code for a full list of parameters and look below for how to access them on your hub.

  • LED Indicator behavior, color, brightness: 6 x TAP UP to change the indicator mode
  • Smart Bulb Mode (disable the relay): HOLD DOWN for 10 seconds then 5 x TAP UP
  • Double tap and single tap behavior
  • Adjustable dimming speed and ramp rate

SCAN SETTINGS

Choose your hub and scan the QR code with your phone's camera. Then click on the link to learn how to access and change the advanced settings for the switch on your hub.

SmartThings

Hubitat

Home Assistant

Vera

SCENE CONTROL

You can trigger scenes or control other connected devices in your network using this switch. Just enable the setting in Parameter 13 and verify that your hub supports scene control. Assign scenes or actions to 1-tap, 2-tap, 3-tap, 4-tap, and 5-tap aswell as to held and released for any of the paddles.
Scan the QR code for scene control programming instructions on your hub.

QUESTIONS?
ask@getzooz.com

ASSOCIATION

This dimmer switch supports Group 1 with up 0 1 devices for lifeline communication and Group 2 and 3 with up to 5 devices. This device will send BASIC REPORT to Group 1, BASIC SET 0 group 2, and MULTILEVEL to Group 3 (for remote dimming) when operated manually.
You can set direct association to have the switch control another Z-Wavedevice independently of the hub by using Group 2 and 3. Not every hub exposes direct association settings in the interface so please go to www.support.getzooz.com to see if your system allows for direct association.

This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
This product features the latest Security 2 (S2) framework to remove smart home network hacking risks. This device is equipped with a unique authentication code for trusted wireless communication.

PRODUCT WIRING DIAGRAMS FOR THE MOST COMMON 3-WAY INSTALLATIONS

WIRING DIAGRAMS FOR COMMON 3-WAY INSTALLATIONS

warning DON'T use switches with LED indicators in 3-way's/4-way's!

STOP!
Wire and screw position, as well as color codes are for illustration only. You should not follow the colors and positioning in the illustration blindly. Always identify all wires prior to installing Zooz switches and make sure you can match the diagrams to your set-up exactly. Don't experiment or attempt a "trial-and-error" installation for your own safety.

NOTE!
If you are not comfortable identifying the wiring and completing the installation, please consult a licensed electrician. Make sure you have identified all wiring correctly before connecting the switch. If your wiring doesn't match any of the below diagrams, contact our support: ask@getzooz.com

warning ON/OFF SWITCHES ONLY
Do not connect Zooz Z-Wave switches to an existing 3-way dimmer, illuminated switch, or an electronic add-on switch.
Zooz switches can only be wired with mechanical on/off switches in a 3-way or 4-way setting!
To simplify the diagrams, we did not include connections for the ground wire. Remember that all Zooz switches need to be wired according to the electrical code, with ground wire connected to the ground terminal.

Always install your Zooz S2 switch in the box with direct connection to power line.
Diagrams and instructions in this manual are for ZEN76 and ZEN77 models ONLY!

PRODUCT WIRING DIAGRAM FOR THE MOST COMMON 4-WAY INSTALLATION

WIRING DIAGRAM FOR MOST COMMON 4-WAY INSTALLATION

NEED HELP?
If you're having trouble reading the diagrams or don't see your wiring set-up here, get in touch! We have more 3-way, 4-way, and 5-way diagrams and instructions. There are many ways to wire multi-point control set-ups so unless you can match your wiring to the diagrams here, please don't attempt the installation for your own safety.
www.support.getzooz.com
ask@getzooz.com

RANGE TEST TOOL
You can now easily check if the switch is within your Z Wave hub's range:
Press and hold the lower paddle for 10 seconds until the LED indicator starts blinking. Release the paddle and within 2 seconds, tap the lower paddle 2 times quickly. The LED indicator will then report signal strength.
Solid green = direct communication with the primary controller is stable
Flashing green = direct communication with the primary controller is established but signal is weak
Solid blue = stable communication with hub via repeaters
Flashing blue = communication with the primary controller is established via repeaters but signal is weak
Solid red = communication with the primary controller has failed
Tap the lower paddle to exit testing mode.

NOTE:This function may only be activated once the switch has been included to a Z-Wave network.

The Simple Direct 3-Way/4-Way implemented in this device is a unique Z-Wave multi-point control solution covered under U.S. Patent 10,219,353 Bl.

MORE COLOR?
The white paddles on the ZEN77 dimmer can be replaced for a different color!
Please get in touch with our support to check which colors are currently available and how to order replacement paddles.
Zooz switches will match the shade of standard Leviton switches and wall plates available at any major retailer.

For more diagrams or to request custom instructions go to support.getzooz.com

www.getzooz.com
ask@getzooz.com
