Summary of Contents for Rugged Radios G1

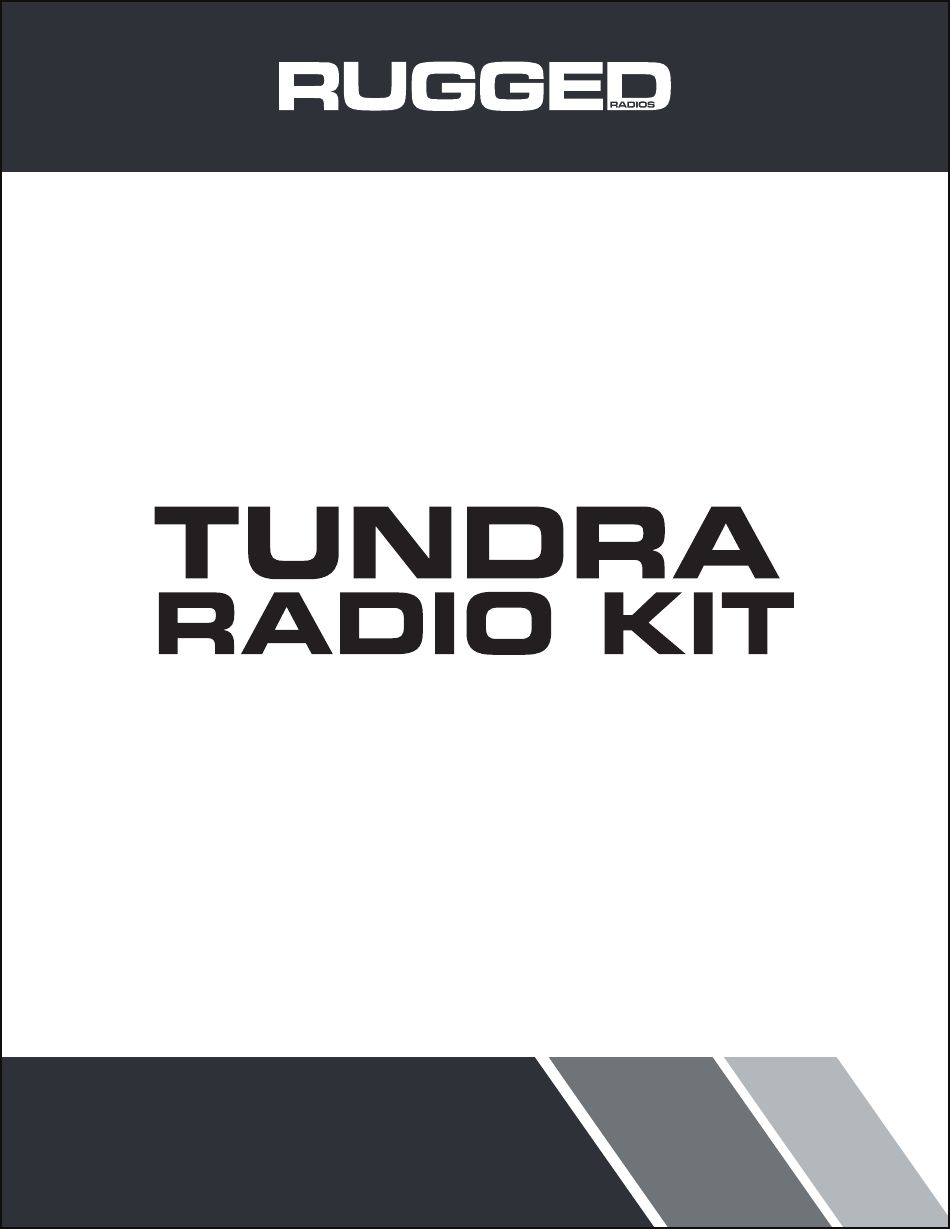

- Page 1 INSTALLATION INSTRUCTIONS...
- Page 2 For additional information View instructions online ruggedradios.com/instructions Call our Tech Department (888) 541-7223...
-
Page 3: What's Included
TK1 Tundra Radio Kit PAGE What’s included? MOBILE RADIO (P.N. GMR25) (P.N. G1) (P.N. G4) RADIO MOUNT (P.N. MT-RM-TOY) (1) Radio Mount COMPATIBILITY: (4) Mounting Bolts TUNDRA (4) Nuts 2ND GEN (2007-2021) (1) Seat Mount Replacement Bolt (1) Spacer ANTENNA MOUNT... -
Page 4: Installation
TK1 Tundra Radio Kit PAGE Installation TOOLS NEEDED 7mm Socket Wrench or Phillips Screwdriver 10mm Socket Wrench or Open End Wrench 12mm Socket Wrench 14mm Socket Wrench 1/8” Allen Wrench 3/8” Socket Wrench or Open End Wrench Small Crescent Wrench STEP 1: INSTALL RADIO MOUNT AND RADIO Radio Mount: Locate the U-bracket packaged with your radio and FIGURE A... - Page 5 TK1 Tundra Radio Kit PAGE Installation STEP 2: INSTALL ANTENNA MOUNT FIGURE C Antenna Mount: Open the hood and secure it in the open position. Using a 12mm Socket Wrench remove only the front bolt from the passenger side hood hinge. SEE FIGURE C. Align the front hole on the mount with the hole on the hinge and reinstall the bolt.
- Page 6 TK1 Tundra Radio Kit PAGE Installation STEP 4: INSTALL ANTENNA FIGURE F Antenna: Unscrew the NMO nut off of the stud. Then insert the stud for the antenna NMO through the hole in the mount and reinstall the nut using a Small Crescent Wrench. This nut requires very little torque. Do not over-tighten! Thread antenna on to antenna mount.
- Page 7 This completes your installation. If you have any questions, please contact us at (888) 541-7223. Thank you!
- Page 8 DESIGNED IN ARROYO GRANDE, CA BY ENTHUSIASTS FOR ENTHUSIASTS. THIS PRODUCT IS BACKED BY 30 YEARS OF EXPERIENCE WITH ONE GOAL, CONNECTING PEOPLE. RUGGED RADIOS. #RUGGEDRADIOS #RUGGEDRADIOSLIFESTYLE...
