Apollo Discovery Open Area Voice Sounder Installation Manual

© Apollo Fire Detectors Limited 2012
Apollo Fire Detectors Limited, 36 Brookside Road, Havant, Hants, PO9 1JR, UK
Tel +44 (0)23 9249 2412 Fax +44 (0)23 9249 2754
Email: techsales@apollo-fi re.co.uk Website: www.apollo-fi re.co.uk
4
39214-601/2013/Issue 4
* *
*
*

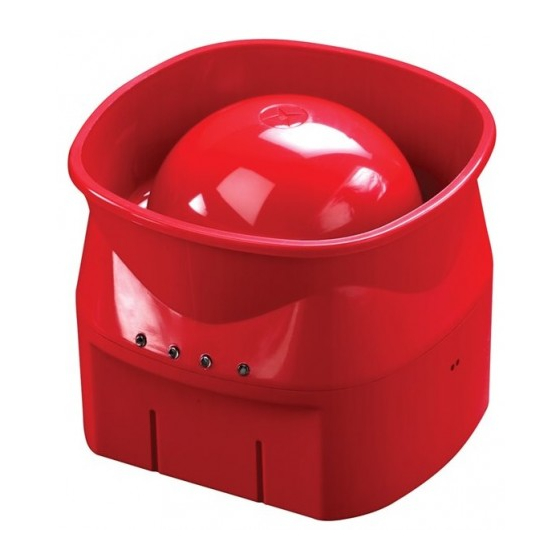

Discovery Open Area Voice Sounder
®
Installation Guide
General
This guide describes the installation of the following products:
Part Number Product Name
58000-010 Discovery Open Area Voice Sounder with Isolator
58000-020 Discovery Open Area Voice Sounder with Isolator
58000-030 Discovery Open Area Voice Sounder Visual Indicator
with Isolator
58000-040 Discovery Open Area Voice Sounder Visual Indicator
with Isolator
Warning
The Discovery Open Area Voice Sounder requires compatible control panel software to
operate. Please check with the panel manufacturer for compatibility before installation.
Function*
The Open Area Voice Sounder Visual Indicator has 3 tone/message pairs, 7 volume set-
tings, independent control of sounder and visual indicator and fast turn-on functions. The
confi guration of the sounder is set by the control panel. Please refer to the panel literature
for details.
Mounting the backbox
The backbox is removed by using an unlocking key to press in one of the retaining lugs.
The Open Area Voice Sounder has 6 slotted drillable holes in the backbox and can be
installed directly to the mounting surface.
Wiring Details
Note: This product is polarity sensitive (supply reversal protected) and will not function if
wired incorrectly.
Drill holes for cable entry as appropriate for the installation. Drill guides are marked on the
backbox. Connect the loop cables to the terminal block, observing polarity and func-
tional earth/screen if applicable. The wiring terminals accept solid or stranded cables up
to 2.5mm².
Commissioning
It is important that the device be fully tested after installation. Many fault conditions are
the result of simple wiring errors. Check all connections to the unit.
Setup and Test Mode
These modes allow volume adjustment and functional testing locally. In test mode no
volume adjustment is possible.
The required mode is entered via the control panel and is confi rmed by a red setup LED
which fl ashes once a second. Sounder state is controlled by placing a magnet adjacent
to the fl ashing setup LED. When the confi rmation LED fl ashes, withdraw the magnet. A suit-
able extendable magnetic wand is available, part no. 29650-001.
*The Visual Indicator function does not comply with the requirements of EN54-23
Type
Indoor (Type A)
Indoor (Type A)
Indoor (Type A)
Indoor (Type A)
1
Colour
Red
White
Red
White
