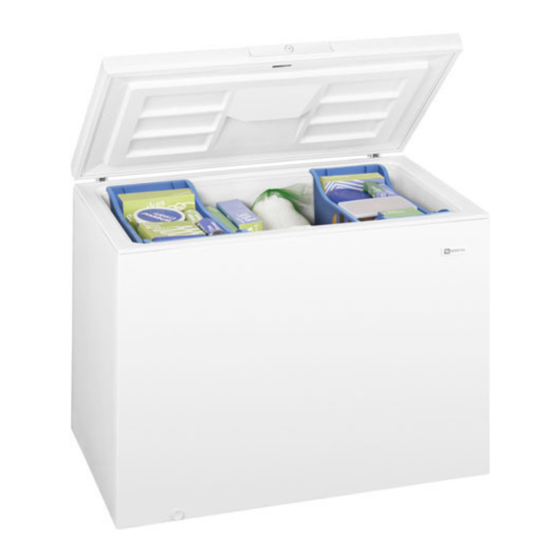

Maytag MQC1557BEW - Chest Freezer Repair Parts List Manual
Parts list
Hide thumbs
Also See for MQC1557BEW - Chest Freezer:
- Use and care manual (20 pages) ,
- Owner's manual (48 pages)
Subscribe to Our Youtube Channel
Related Manuals for Maytag MQC1557BEW - Chest Freezer
Summary of Contents for Maytag MQC1557BEW - Chest Freezer
- Page 1 FREEZER Repair Parts List MODEL NUMBER MQC1557BEW When requesting service or ordering parts, always provide the following information: - Product Type - Part Number - Model Number - Part Description ©2005 Maytag Services...
- Page 2 Section: LID Model: MQC1557BEW A71-64...
- Page 3 (INCL. ITEM #11) 68001694 LINER KIT, DOOR Note: LINER KIT (INCL. ITEM #11) 68001599 HANDLE KIT Note: (INCL. ITEM #11 & HANDLE CLIP) 68001606 NAMEPLATE (MAYTAG) 09100002 CLIP, HANDLE Note: CLIP, HANDLE 68001449 SWITCH, LIGHT 68001445 LOCK KIT Note: (INCL. ITEM #8,10,11, & HOOK SCREW)
- Page 4 Section: CABINET Model: MQC1557BEW A71-71...
- Page 5 Section: CABINET Part No. Description Series Qty 68001183 BREAKER STRIP (FRT.) 68001185 BREAKER STRIP (BACK) 68001184 BREAKER STRIP (END) 68001458 KIT, COMPRESSOR (R134A) Note: COMPRESSOR 68001166 BASE, COMPRESSOR 68001631 BRACKET, BASE 09100025 GROMMET, COMPRESSOR 09100099 CLIP, COMPRESSOR 13900-1 DRIER 68001368 RELAY, START 68001478 COVER, TERMINAL...
-
Page 6: Supplemental Information
Section: SUPPLEMENTAL INFORMATION Part No. Description Series Qty 12631114 MANUAL, USE & CARE (MAYTAG) 16023584 SVC MAN, CHEST FREEZER 4-35918-001 TAG, ENERGY *Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available... - Page 7 Section: WIRING INFORMATION Model: MQC1557BEW 15003726...
