1. GET CONNECTED
INSTR - Plug in your guitar or other instrument.
AMP - Connect to amp, power amp, mixer or recording interface.
9VDC - Insert 9VDC 2.1mm centre-negative power supply
(minimum 100mA).
2. MATCH THE CONTROLS

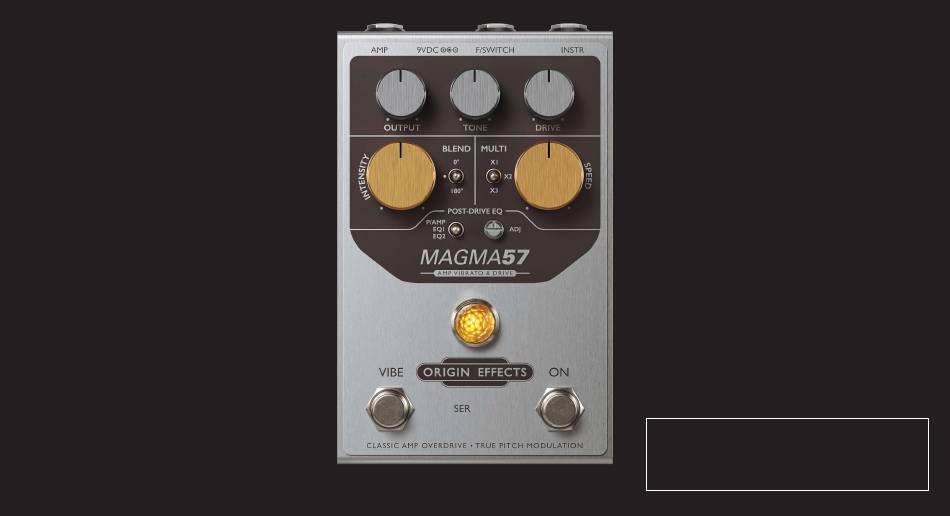

Match the pedal controls to the image here as a starting point for setting
up your tone.
3. SET THE POST-DRIVE EQ
Set the POST-DRIVE EQ to suit your application.
Guitar amp or amp modeller:
Set the POST-DRIVE EQ switch to EQ1 for brighter sounding amps
•
or EQ2 for darker sounding amps.
Turn the ADJ control to fine-tune high-frequency response.
•
Power amp, recording interface or mixer:
Set the POST-DRIVE EQ switch to P/AMP.
•
Remember to use a cabinet simulator if playing through a full-range
•
speaker system such as a PA or studio monitors.
4. SET YOUR LEVEL
OUTPUT - Set the pedal's overall output level without changing the tone
or drive characteristics.
FOR THE FULL OWNER'S MANUAL VISIT
WWW.ORIGINEFFECTS.COM
5. DIAL IN YOUR VIBRATO
Use the VIBE footswitch to switch the vibrato effect on and off.
When VIBE is turned on the jewel light will flash
vibrato speed.
When the VIBE is turned off the jewel light will glow
that only the overdrive controls are engaged.
INTENSITY - Turn the control up to increase the depth of the
vibrato effect.
SPEED - Turn the control up to increase the rate of the vibrato effect.
MULTI - Select the range of the speed control.
BLEND - Switch between three modulation settings:
OFF - In the centre position, the blend switch delivers pure pitch vibrato.
°
0 - Wet and dry signals are combined in phase creating a phase-cancelling
effect, similar to the 'chorus' mode on the classic Uni-Vibe.
180° - Wet and dry signals are combined out of phase, creating a unique
chorus effect.
6. DIAL IN YOUR OVERDRIVE
DRIVE - Turn up and go from clean to cranked, much like turning up a
classic non-master volume amp.
TONE - Turn up for a brighter sound or turn down to tame high
frequencies.
TAP TEMPO & FURTHER CONNECTIVITY
Connect a momentary tap tempo footswitch to control the vibrato
speed remotely. Please refer to the owner's manual for further
connectivity instructions.
