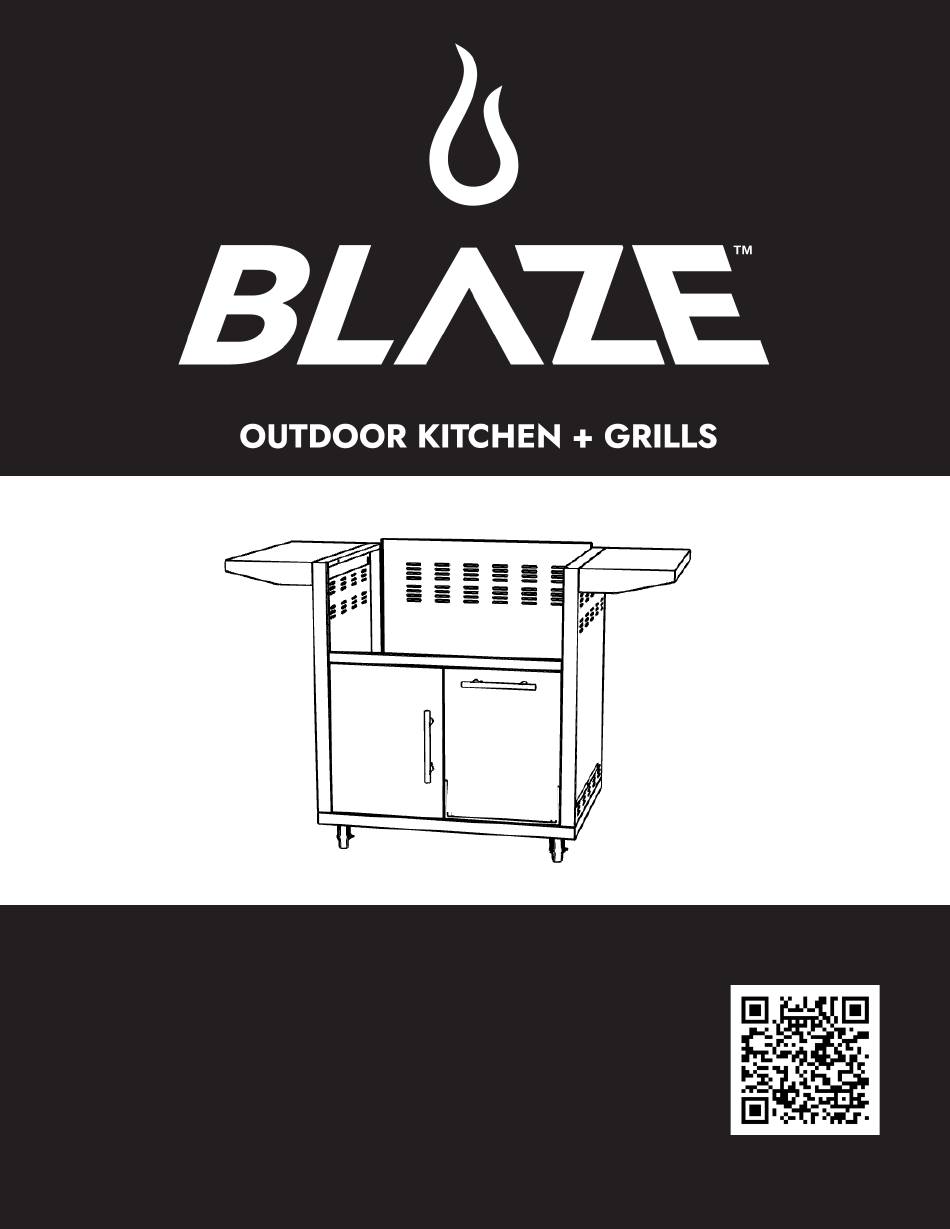

- Page 1 PREMIUM LTE SERIES PRODUCT MANUAL Blaze Appliance Cart BLZ-4LTE2(NG/LP) BLZ-GRIDDLE-LTE30-LP/NG BLZ-5LTE3(NG/LP) BLZ-4LTE3-(NG/LP) BLZ-4LBM-(NG/LP) BLZ-5LTE2-(NG/LP) SCAN TO REGISTER BlazeGrills.com...
-
Page 2: Before Getting Started
Blaze LTE Cart WAR NIN G CALIFORNIA PROPOSITION 65 WARNING: Do not use power tools to assemble. Only This product can expose you to chemicals use hand tools, as power tools can damage including Chromium (hexavalent or loosen the nutsert. - Page 3 Blaze 32'' LTE Grill cart Blaze 32" LTE+ Grill cart Blaze 32" LBM Grill cart 16. Upper back panel 14. Hardware pack 15. Hinges 13. Left door 1. Propane drawer 2. Back panel 3. Side Shelf 4. Handles 5. Right side panel 12.
- Page 4 12. Left side panel 6. Casters 8. Bottom panel 11. Top side shelf 7. Front strut pannel 9. Right side drawer slide 10. Right side shelf panel Blaze Part Number: Reference Guide BLZ-GRIDDLECART-012 BLZ-GRIDDLECART-015 BLZ-GRIDDLECART-014 BLZ-GRIDDLECART-005 BLZ-GRIDDLECART-011 BLZ-GRIDDLECART-007 BLZ-D/DR-2 BLZ-GRIDDLECART-009...
- Page 5 Blaze 40'' LTE Grill cart Blaze 40" LTE+ Grill cart 16. Upper back panel 14. Hardware pack 15. Hinges 1. Propane drawer 13. Left door 2. Back panel 3. Side Shelf 4. Handles 5. Right side panel 12. Left side panel 6.
- Page 6 Blaze LTE Cart STEP 1: STEP 3: Flip the panel upside down on a protected Attach the right and left side cart panels. The surface, exposing the four locations where the casters right and left side panels can be identified as follows. The attach.
- Page 7 STEP 8: Attach the shelf to the interior of the appliance cart using six screws: three on the interior of the cart and three on the exterior. STEP 5: Attach the upper two screws on the back side panel, but do not fully tighten them until the cart is fully assembled.
- Page 8 Blaze LTE Cart STEP 11: Attach door handles to the doors - The door STEP 13: Then loosen the adjustment screw. handles and hardware are packaged separately from the rest of the hardware. Each handle is attached to the door with two M6x8 screws.
- Page 9 STEP 15: To attach the soft-close hinge, snap one hinge STEP 16: The front strut will be attached next with four at a time onto the hinge mounts, hooking the front screws, two on each side. hook first, then pushing down the back until you hear a click.
- Page 10 Blaze LTE Cart If you are installing a griddle into your cart the griddle will not have attachment screws. once your STEP 19: (For both griddle and grill) appliance is in place push upper back panel into the slot on the back of the grill to lock it in place.
- Page 11 Please leave these instructions with the consumer. Please read and retain these instructions for future reference and before installation or operation. Contact Us: Blaze 6620 Greenwell Springs Rd Baton Rouge, LA 70805 Phone: 866-976-9510 customerservice@blazegrills.com Contact Us: @Blazegrills @Blaze_Grills @BlazeOutdoorProducts...
