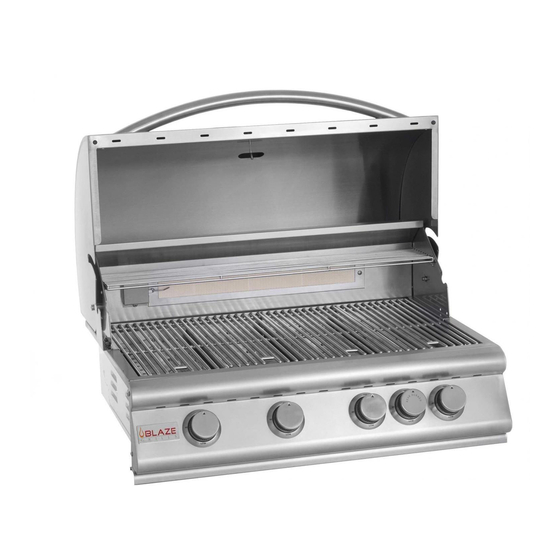

GAS GRILLS BLZ-3(NG/LP), BLZ-4RB(NG/LP), BLZ-5RB(NG/LP),
SIDE BURNERS BLZ-SB1 (NG/LP), BLZ-SB2 (NG/LP)
DANGER
- IF YOU SMELL GAS:
I) Shut off the gas supply to the appliance at its source.
2) Extinguish any open flames.
3) Open grill hood to release any accumulation of gas
vapor.
4) If a gas odor persists, Keep away for your appliance
contact
your
gas
supplier
immediately.
ATTENTION INSTALLER:
PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER.
ATTENTION CONSUMER:
PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND BEFORE INSTALLING
OR OPERATING.
Blaze Outdoor Product: 10612 Cherry Hill Ave, Baton Rouge, LA 70816 USA
Phone: 225-910-6796 email: CustomerService@BlazeGrills.com
USE & CARE GUIDE
or
fire
department
- CONTACT INFORMATION -
Blaze Grills by Blaze Outdoor Products Instructional Book
WARNING
I) Do not store or use gasoline or other flammable
liquids or vapor in the vicinity of this or any other
appliance
2) An LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliances.
1
