Kohler 28016ME Installation Instructions

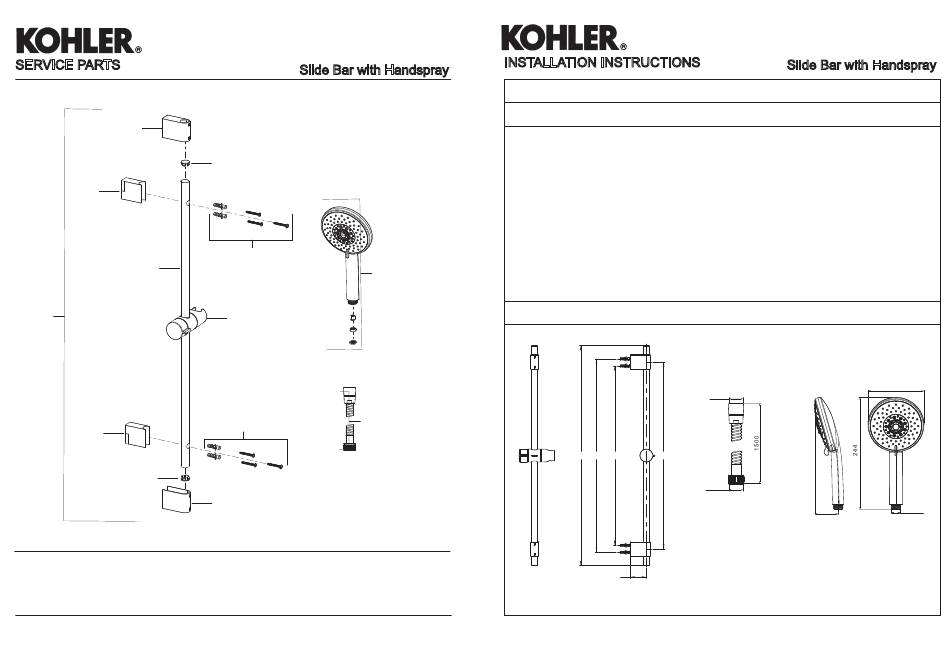

SERVICE PARTS
28016ME Slide bar, with Handspray
1190001**
Bracket Cover
1190000**
Bracket
1187786**
Slid Bar
1187785
Slide Bar
1190000**
Bracket
1190006**
Cover
**Color code must be specified when ordering
ADDRESS:
Kohler Middle East Trading FZE
CONTACT.MIDDLEEAST@KOHLER.COM
WWW.ME.KOHLER.COM
+97143642650
1433179-2A-A
Slide Bar with Handspray
1190006**
Cover
1061576
Screw Kit
1065970
Handshower Asssembly
1385142**
Handspray Holder
831727
1061576
Spray Hose
Screw Kit
1190001**
Bracket Cover
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co.
reserves the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Observe all local plumbing and building codes.
3. Shut off the main water supply.
4. The product must be installed in conjunction with a faucet (purchased separately).
5. The highest working pressure for showerhead & handspray is 0.5 Mpa (5 bar). If it exceeds 0.5Mpa (5 bar),
a pressure reducer is needed. The highest water and environment temperature is 60°C. Please keep showerhead
& handspray away from heater, or maybe damage it and hurt user.
ROUGH-IN DIMENSIONS
685 602
50.4
4
1433179-2A-A
Slide Bar with Handspray
28016ME Slide bar, with Handspray
G1/2˝
558 580
G1/2˝
Ø122
G1/2˝
50.7
1
