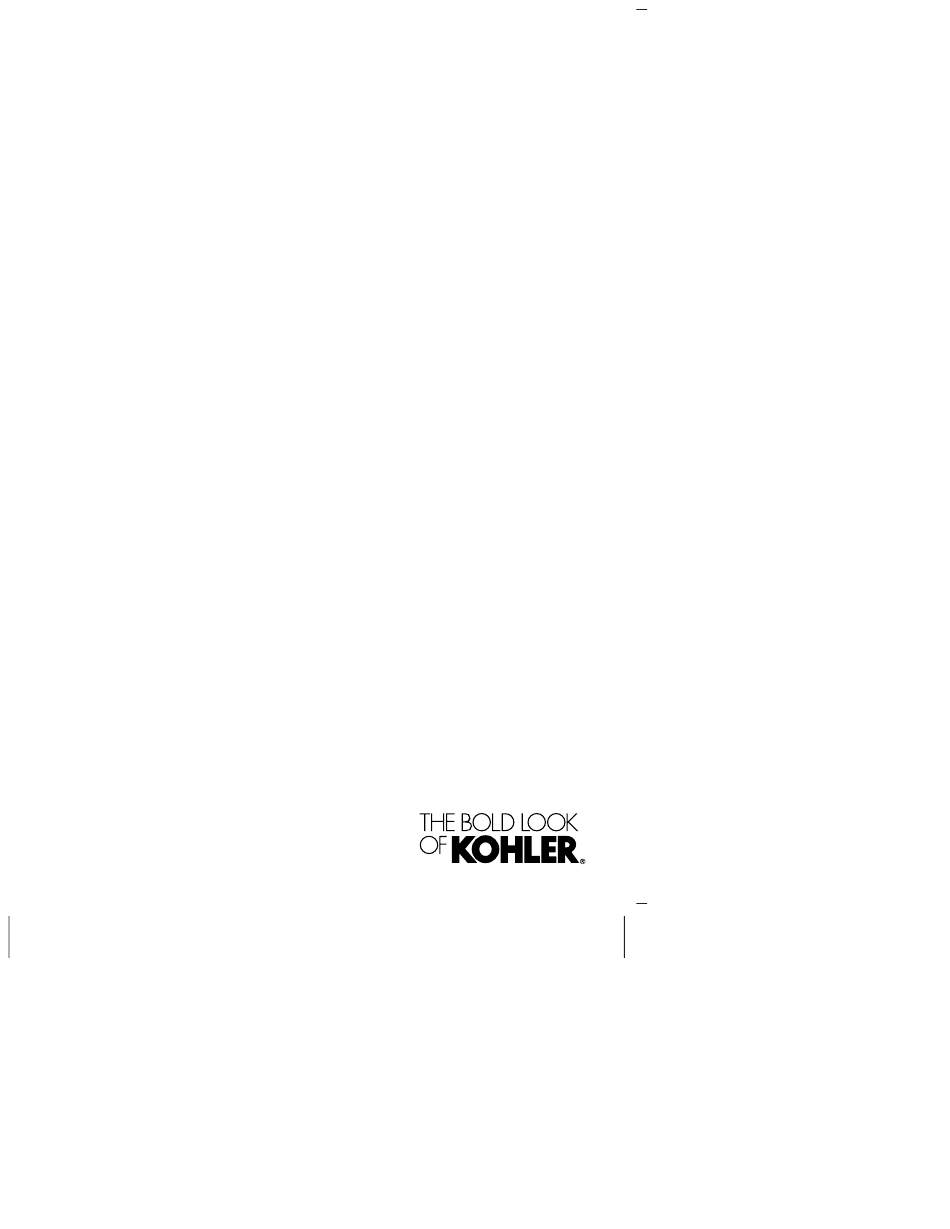

- Page 1 Installation Instructions Electronic Kitchen Faucet Français, page ″Français-1″ Español, página ″Español-1″ 1433562-2-A...
-
Page 2: Tools And Materials
Do not allow items susceptible to electromagnetic damage to come into close proximity to the spout. Follow all plumbing, electrical, and building codes. *Outside North America, this device may be known as a Residual Current Device (RCD). 1433562-2-A Kohler Co. - Page 3 Turn off the water supply. For new installations, assemble the faucet to the sink before installing the sink. For uneven mounting surfaces (such as tile grout lines), apply a suitable sealant under the faucet. Do not use petroleum-based sealant. 1433562-2-A Kohler Co.
-
Page 4: Prepare For Installation
NOTE: Handle orientation is designed to be on the right. Thread the screws into the ring 1/4″ (6 mm) past the surface. Use the escutcheon included with your faucet. Insert the faucet through the mounting surface with the handle on the right. 1433562-2-A Kohler Co. -
Page 5: Install The Faucet
Thread the ring onto the shank until the washer contacts the underside of the sink. Adjust the ring to align the screws with the front and back of the faucet. Use a Phillips screwdriver to securely tighten the screws. 1433562-2-A Kohler Co. - Page 6 Place a bucket under the outlet hose. Turn on the supplies. Flush the hot and cold water for 1 minute to remove any debris. Connect the outlet hose to the solenoid inlet. Connect the Spray Hose Remove the protective cap. 1433562-2-A Kohler Co.
- Page 7 Connect the Supplies (cont.) NOTE: The weight must be installed onto the spray hose to act as a pull stop and to prevent kinking damage. Slide the weight onto the spray hose. Connect the spray hose to the solenoid outlet. 1433562-2-A Kohler Co.
-
Page 8: Connect The Wires
Connect the solenoid wire to the circuit board. Plug the power cord into an unswitched 120 VAC outlet. The power LED on the circuit board will illuminate. Test activation of the sensor. Refer to the ″Faucet Operation″ section. 1433562-2-A Kohler Co. - Page 9 Fasten the mounting bracket vertically to the cabinet or wall. Mount the Solenoid and Cover NOTE: The solenoid may be positioned to the right or left. Remove the appropriate tab on the cover. 1433562-2-A Kohler Co.
- Page 10 Install the Solenoid (cont.) Position the solenoid and cover on the mounting bracket. Secure the solenoid and cover to the mounting bracket with the two screws provided. 1433562-2-A Kohler Co.
-
Page 11: Complete The Installation
Extend and retract the spray hose to check for smooth operation. Check for Leaks Ensure that all connections are tight. Turn on the water supplies, and check all connections for leaks. Test the faucet for proper operation. Refer to the ″Faucet Operation″ section. 1433562-2-A Kohler Co. -
Page 12: Faucet Operation
flow is not available. LED Indicators Handle LED: Illuminates when the sensor is active. Power LED: Indicates that there is power to the circuit board. Features Automatic shut-off: After 4 minutes of inactivity, the water will automatically shut OFF. 1433562-2-A Kohler Co. - Page 13 Faucet Operation (cont.) Sensor override: In the event of power loss, bypass the sensor function by turning in the override feature on the solenoid valve. The faucet can then be operated manually. 1433562-2-A Kohler Co.
- Page 14 Water does not fully shut off: Loosen the valve setscrew until the handle rotates to the full upright (closed) position and the LED turns ON. Then tighten the setscrew until the LED turns OFF, plus an additional 1/4 turn. 1433562-2-A Kohler Co.
-
Page 15: Cleaning The Screens
Reinsert the screen and reconnect the sprayhead. Solenoid Inlet Screen Turn the handle to the closed position. Disconnect the outlet hose from the solenoid. Remove and clean the inlet screen inside the solenoid. Reinstall the inlet screen and reconnect the outlet hose. 1433562-2-A Kohler Co. -
Page 16: Troubleshooting
E. Handle LED is not lit. Switch Troubleshooting Table.″ Refer to the ″Sensor Power LED on circuit Troubleshooting Table.″ board is not lit. G. Refer to the ″Cleaning G. One or more screens are the Screens″ section. clogged. 1433562-2-A Kohler Co. - Page 17 LED illuminates. A. Manual A. Turn the manual Water drips or trickles when override is override clockwise until faucet is not in partially it stops; then turn it use. engaged. counterclockwise until the water drip stops. 1433562-2-A Kohler Co.
- Page 18 A. Loose handle A. Check handle switch Handle LED does not illuminate switch wire wire connection to the when the handle connection. circuit board. is rotated open. B. Circuit board B. Replace the cover is not assembly. functioning correctly. 1433562-2-A Kohler Co.
- Page 19 B. Debris on the B. At the circuit board, sensor wire gently disconnect, connector. clean, and reconnect the sensor wire connector. C. Circuit board C. Replace the cover is not assembly. functioning. 1433562-2-A Kohler Co.
- Page 20 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. 1433562-2-A Kohler Co.
-
Page 21: Warranty
For service parts information, visit kohler.com/serviceparts. For care and cleaning information, visit kohler.com/clean. This product is covered under the KOHLER® Electronic Faucets, Valves, and Controls Five-Year Limited Warranty, found at kohler.com/ warranty. For a hardcopy of warranty terms, contact the Customer Care Center.
