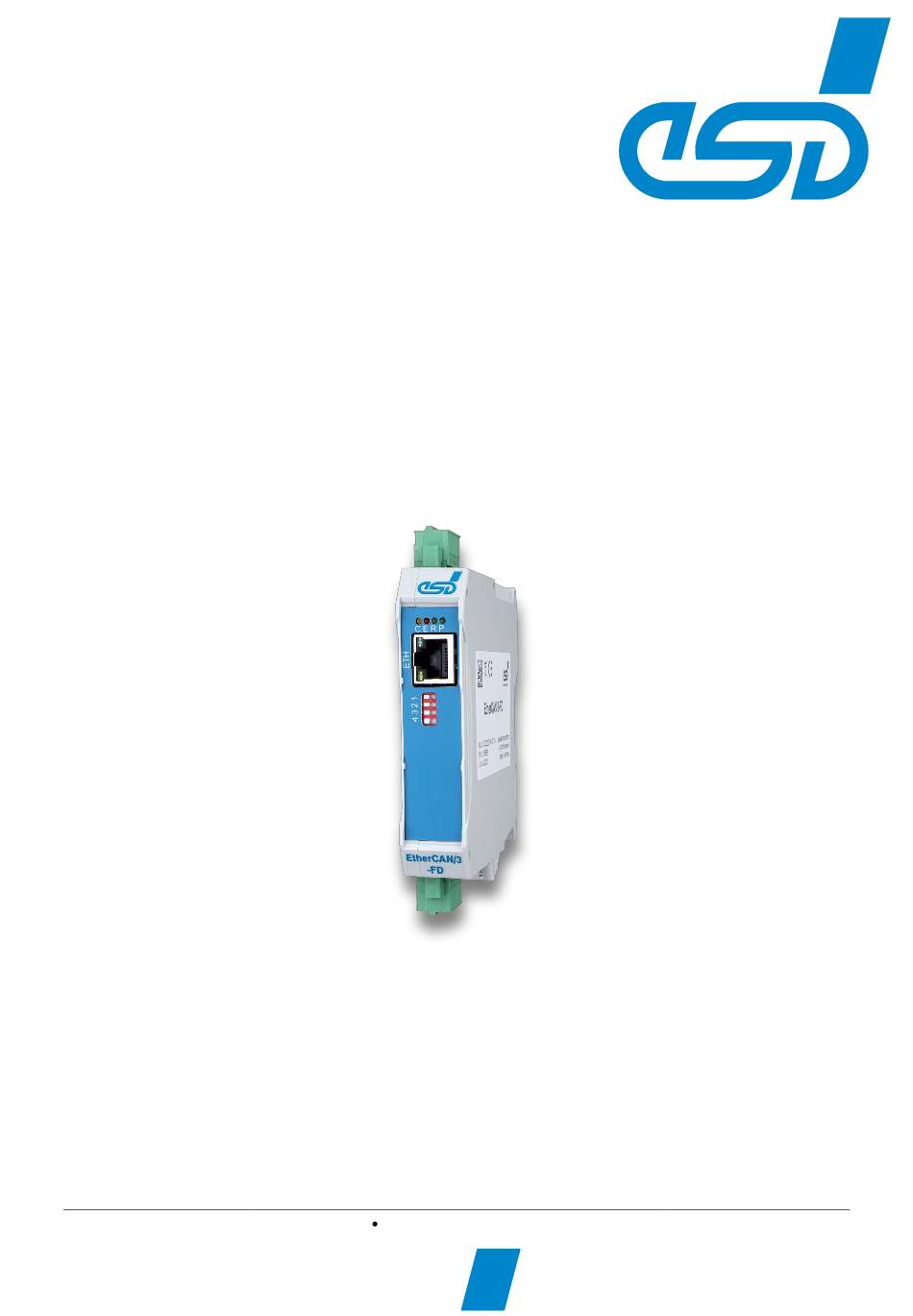

- Page 1 For Product C.2055.62 EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 1 of 96 esd electronics gmbh Vahrenwalder Str. 207 • 30165 Hannover • Germany http://www.esd.eu Phone: +49 (0) 511 3 72 98-0 • Fax: +49 (0) 511 3 72 98-68...
- Page 2 Links esd electronics gmbh assumes no liability or guarantee for the content of Internet pages to which this document refers directly or indirectly. Visitors follow links to websites at their own risk and use them in accordance with the applicable terms of use of the respective websites.
-
Page 3: Document Information
CAN port number at InRail bus corrected to CAN 0 (fig. 2) 2025-02-20 Chapter “Encryption” added 2025-02-20 5.2.3.4 Change CAN interface to CAN port and update figures 2025-02-20 Technical details are subject to change without further notice. EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 3 of 96... - Page 4 This NOTICE statement contains the general mandatory sign and gives information that must be heeded and complied with for a safe use. INFORMATION INFORMATION Notes to point out something important or useful. Manual Doc. No.: C.2055.21 / Rev 1.1 EtherCAN/3-FD Page 4 of 96...
-
Page 5: Safety Instructions
● The galvanic isolation of the EtherCAN/3-FD has only functional tasks and is not a protection against hazardous electrical voltage. ● The EtherCAN/3-FD is a device of protection class III according to DIN EN 61140 and may only be operated on supply circuits that offer sufficient protection against dangerous voltages. -
Page 6: Data Safety
It is the responsibility of the user of the device to ensure that the necessary safety precautions are taken for the network ports of the device. -
Page 7: Table Of Contents
Table of Contents Safety Instructions .......................... 5 Overview ..........................11 About this Manual ......................11 Description of EtherCAN/3-FD ..................11 Glossary ......................... 13 Hardware ..........................14 Connecting Diagram ....................... 14 Starting Up ..........................15 Installing and Uninstalling Hardware ................15 Installing the Hardware .................... - Page 8 5.3.1 PKI Configuration on the EtherCAN/3-FD ..............59 5.3.2 Host System ......................60 5.3.3 Certificate Generation ....................60 Software Licenses........................61 License Texts ......................... 61 Open-Source Software Copy ..................61 Host Software ........................62 EtherCAN SDK ....................... 62 7.1.1 CAN Control Panel ....................62 CAN SDK ........................
- Page 9 Table 7: Data of the Ethernet port ....................71 Table 8: Connectors, accessible from outside ................71 Table 9: Recommended cable lengths at typical bit rates (with esd-CAN interfaces) ....82 Table 10: Order information hardware ................... 95 Table 11: Order information software .................... 95 Table 12: Available Manuals ......................
- Page 10 Figure 43: Connection via 24V Connector ..................91 Figure 44: Connection via terminal plug ..................91 Figure 45: Connecting the CAN signals to the CAN-CBX station ..........92 Manual Doc. No.: C.2055.21 / Rev 1.1 EtherCAN/3-FD Page 10 of 96...
-
Page 11: Overview
This manual describes the hardware and the software of the EtherCAN/3-FD module. 1.2 Description of EtherCAN/3-FD The EtherCAN/3-FD is equipped with an ARM Cortex M4 processor, an Ethernet port and two CAN FD ports. The Ethernet port is suitable for 10 Mbit/s and 100 Mbit/s networks and can be connected via an RJ45-socket. -
Page 12: Figure 1: Schematic Examples Of Application
CAN TCP Client TCP IP Platform independent Client Mode Device Client Mode CAN Bridge TCP/IP Device Bridge Mode CAN ridge TCP IP CAN ridge TCP IP Figure 1: Schematic examples of application EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 12 of 96... -
Page 13: Glossary
CAN in Automation ELLSI EtherCAN Low Level Socket Interface Least Significant Bit Most Significant Bit n.a. not applicable Operating System Remote Transmission Request Public Key Infrastructure Simple Network Time Protocol SNTP EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 13 of 96... -
Page 14: Hardware
Read chapter “3. Starting Up” from page 15, before you start with the installation of the hardware! Please refer to chapter “13. Connector Assignments” from page 72 for signal assignment of the connectors. EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 14 of 96... -
Page 15: Starting Up
EtherCAN/3-FD is to be integrated. → The EtherCAN/3-FD is a device of protection class III according to DIN EN 61140 and may only be operated on supply circuits that offer sufficient protection against dangerous voltages. -
Page 16: Uninstalling The Hardware
'NTCAN-API Part 2 Installation Guide' for the EtherCAN/3-FD module. INFORMATION Access via esd's NTCAN API is supported. The software installation via esd's NTCAN API is described in the manual ‘NTCAN-API, Installation Guide’ EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1... -
Page 17: Compatibility With The Ethercan/2
Compatibility with the EtherCAN/2 4 Compatibility with the EtherCAN/2 The EtherCAN/3-FD is the successor of the EtherCAN/2. It retains most of the features and is and is inter-compatible with the EtherCAN/2. The following overview shows the individual functions and notes on functionality. -
Page 18: Software Configuration
5.1 Configuration of the IP Address First a valid IP address has to be assigned to the EtherCAN/3-FD. An IP address is a unique address for a device within its network. Therefore, it is necessary to configure a unique IP address that is not already assigned to another device in the network. -
Page 19: Using A Hostname Instead Of An Ip Address
DNS servers which only allows up to 15 characters per label or only solves the hostname correctly, if it contains the domain-suffix independent of the domain name. Each time the EtherCAN/3-FD receives a new IP address from the DHCP server, all network connections of the EtherCAN/3-FD are terminated. -
Page 20: Configuration Via The Esdcp Protocol
Software Configuration 5.1.2 Configuration via the ESDCP Protocol QESDCP is a tool to find and configure esd devices with Ethernet port in a LAN. For this a stateless protocol – using UDP - is used. Figure 3: QESDCP - Device Configuration Tool To discover devices with Ethernet port, your computer must be in the same local network. -
Page 21: Figure 4: Modify The Ip Address Via Qesdcp
Enter the IP address in the input field in the column Configured Value. Enter the Netmask in the same way. Activate the checkbox Reset Device for a reboot of the EtherCAN/3-FD after confirming the entry, because the changes are not applied until the device is rebooted. -
Page 22: Web Based Configuration
Software Configuration 5.2 Web Based Configuration The EtherCAN/3-FD offers an integrated HTTP server, which allows further configuration with a web browser. It follows the description of the pages as they are displayed in the browser. 5.2.1 Overview The menu item Overview shows the module specific details of the EtherCAN/3-FD. Under Gateway details you will find firmware revision, hardware revision, order number and serial number. -
Page 23: Status
CAN Status This page displays settings as well as statistics for both CAN ports. It also allows the user to reset the CAN statistic. Figure 6: Web Page ‘CAN Status’ EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 23 of 96... -
Page 24: Can Bridge Status
5.2.2.2 CAN Bridge Status This page displays the status for the CAN bridge. It also allows the user to download the current protocol file. Figure 7: Web Page ‘CAN Bridge Status’ EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 24 of 96... -
Page 25: Ethernet Status
5.2.2.3 Ethernet Status This page displays the Ethernet status. This includes the current transmission speed (10/100 Mbit/s), the communication mode (half/full duplex) and the MAC-Adress of the EtherCAN/3-FD module as well as several statistical parameters of the Ethernet link. Figure 8: Web Page ‘Ethernet Statistics’... -
Page 26: Clients Status
As the total number of connected clients is fixed, the number of table lines is fixed, too. Lines which contain clients that are not connected (or no longer connected) are displayed in a grey font. For further information about ELLSI see ELLSI software-manual: ELLSI_Software_Manual.pdf (6). EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 26 of 96... -
Page 27: Event Log
Software Configuration 5.2.2.5 Event Log This page displays the event log from the power up of the EtherCAN/3-FD. The events are classified depending on the severity into the categories Error, Warning and Info. The list will be deleted at every reboot. During the runtime of the module the logged events can be downloaded. -
Page 28: Configuration
This will ensure that only a client with a specific client certificate can establish a connection. Without providing a trusted certificate, every certificate will be accepted. For more information see chapter 5.3. Figure 11: Web Page ‘Security Configuration’ EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 28 of 96... -
Page 29: Network Configuration
Software Configuration 5.2.3.2 Network Configuration The page Network Configuration contains an overview of the configured values of the TCP/IP and the Time Server configuration. Figure 12: Web Page ‘Network Configuration’ EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 29 of 96... -
Page 30: Figure 13: Web Page 'Network Configuration
The MTU (Maximum Transmission Unit) can be set according to the conditions of your network and is not affected by the DHCP setting. TCP/IP Default Parameters At the first start of the EtherCAN/3-FD the check box ❑ Use DHCP is enabled. Thus, the IP address is assigned by default via the DHCP Server. EtherCAN/3-FD Manual Doc. -
Page 31: Figure 14: Web Page 'Network Configuration
To be able to use the Remote Logging-Support these parameters have to be configured. Without an entry in this field, the calculation of times will restart from 1970-01-01 at 00:00 a.m. with every reboot (power up) of the EtherCAN/3-FD module. EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. -
Page 32: Event Log Configuration
The events are logged in the volatile memory of the device and are therefore cleared when the device is restarted. Figure 15: Web Page ‘Event Log Configuration’ EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 32 of 96... -
Page 33: Can Baud Rate Configuration
Enable this checkbox to perform CAN FD. Only when this option is enabled the ‘Data baud rate’ is set. Arbitration / Data baud rate Select arbitration and data baud rate for the CAN port from the drop-down menu. EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 33 of 96... -
Page 34: Advanced View
CAN CC. For details check the NTCAN API manual (4). Enable CAN FD Enable this checkbox to perform CAN FD. Only when this option is EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 34 of 96... - Page 35 For more information, please read the NTCAN API manual (4). BTR Mode (Canonical) Choose the CAN bit-timings for the arbitration and data phase. The CAN port runs with a frequency of 40 MHz. EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 35 of 96...
-
Page 36: Can Bridge Configuration
On this page the ‘CAN Bridge’ functionality of the EtherCAN/3-FD is configured. This functionality allows connecting two CAN CC / FD networks via Ethernet. This configuration page is used to set up two EtherCAN/3-FD modules so that they can connect to each other to exchange the CAN messages. -
Page 37: Quick Start Guide
Select “Clear and enable all IDs” under ‘CAN 29 bit filter’ and ‘Clear and enable all IDs’ under ‘CAN 11 bit filter’ 6. Reboot the device on the page Reboot EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 37 of 96... -
Page 38: Figure 17: Web Page Can Bridge Configuration
Software Configuration Figure 17: Web Page CAN Bridge Configuration EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 38 of 96... -
Page 39: Important Notes
CAN frame. NOTICE If the EtherCAN/3-FD is used e.g. as CAN interface for a PC or in bridge mode at the same time, it has to be ensured that no conflicts arise. Especially, when the PC changes the baud rate of the module, it might differ from the startup baud rate. -
Page 40: Configuration Via Web Browser
Used to edit the configuration directly within the browser. If a configuration file was uploaded before its settings are already included here. All changes will be transferred to the EtherCAN/3-FD with each submit. When leaving the page or triggering any other action, such as a bridge restart or configuration file upload, all inputs made here will be lost. -
Page 41: Figure 20: Web Page 'Can Bridge Configuration' - Can 11Bit Filter
Clear and enable all IDs all 11 bit CAN frames are received/forwarded. Deletes all mapping entries and sets “Enable/disable IDs” so that Clear and disable all IDs no 11 bit CAN frames are received/forwarded. EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 41 of 96... -
Page 42: Figure 21: Web Page 'Can Bridge Configuration' - Can 29Bit Filter
Clear and enable all IDs receive/forward all 29 bit CAN frames. Deletes all mapping entries and resets “Acceptance code/mask” to Clear and disable all IDs receive/forward no 29 bit CAN frames. EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 42 of 96... -
Page 43: Configuration Via File
5.2.3.5.4 Configuration via File Figure 15: CAN Bridge – ‘Configuration file’ Upload new configuration Used to upload a bridge configuration file to the EtherCAN/3-FD. A new configuration file will overwrite all current settings. Download current CAN Used to download the bridge configuration. The file is always bridge configuration recreated, i.e. - Page 44 The receive ID is always interpreted as 11 bit ID, the send ID has to use bit 29 as marker. (So, this sample line sends the 11 Bit ID 0x100 as 29 Bit ID 0x00000101) EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 44 of 96...
-
Page 45: Figure 22: Can Bridge - Sample Configuration File
Software Configuration Sample file Line # esd EtherCAN/3-FD CAN Bridge configuration file. remote_ip 10.0.1.2 can_29bit_acceptmask 0x000000ff can_29bit_acceptcode 0x00000100 can_29bit_map 0x00000120 0x00000100 can_29bit_map 0x00000121 0x20000101 can_11bit_enable 2047 can_11bit_map 0x00000100 0x20000100 Figure 22: CAN Bridge – Sample configuration file • Line 6: (remote_ip) o The remote IP address is “10.0.1.2”... -
Page 46: Can Tcp Client Configuration
The communication protocol is declared in the next chapter. NOTICE If the EtherCAN/3-FD is used e.g. as CAN interface for a PC or in bridge mode at the same time, it has to be ensured that no conflicts arise. Especially different CAN baud rates must not be set at the same time. - Page 47 5.2.3.2. Port The TCP port number on which the server is waiting for the connection of the EtherCAN/3-FD. CAN Interface This option defines which CAN port should be monitored. It is also possible to monitor both CAN ports.
-
Page 48: Protocol
All values within the data are, unless otherwise stated, transmitted in ‘network byte order’, i.e. ‘Big- endian’. When the connection is established the EtherCAN/3-FD starts with sending its version information, unasked – the server has to do that, too, else the EtherCAN/3-FD won't accept commands from the server. Command (ASCII) - Page 49 CAN ID Length of CAN data msg_lost Lost CAN frames 6..7 reserved Reserved/unused 8..71 data CAN FD data 72..79 timestamp Timestamp Some bits with special meaning, please check chapter 5.2.3.6.3 EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 49 of 96...
- Page 50 For example, when the unknown command 'X' is received at first two bytes have to be read. These bytes specify the payload length, the length that has to read additionally. Thereafter follows the next command, and so on EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 50 of 96...
-
Page 51: Version Information Struct
EtherCAN/3-FD CAN TCP Client/Server reserved 3..6 Reserved for future use version 7..10 Protocol version number 11..14 Serial No. of the EtherCAN/3-FD. The format is described in the serial NTCAN API manual reserved 15..18 Reserved for future use reserved 19..22 Reserved for future use Frequency of the timestamps used in “Ping”... - Page 52 255 frames were lost this value is still set to 255) msg_lost Lost frames usually occur when the EtherCAN/3-FD failed to send them to the TCP connection in time, i.e. when the connection is too slow, or the server does not read them fast enough from its client socket.
- Page 53 Software Configuration Member name data[0]..[64] 0..511 CAN data bytes EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 53 of 96...
-
Page 54: Ellsi
UDP or TCP. ELLSI can be used by all platforms not supported by the esd NTCAN driver and its EtherCAN client. For all platforms with an existing NTCAN driver, it is highly recommended to use NTCAN instead of ELLSI for communication with the EtherCAN/3-FD. -
Page 55: System
When the update file is invalid or something has gone wrong, a message will be displayed. NOTICE Do NOT switch off the power during the update, because the module could get into an inoperable state! EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 55 of 96... -
Page 56: Reboot
NOTICE The Events Log will be cleared after reboot. Furthermore, the web server will be shut down and all links of the gateway clients/CAN Bridge will be disconnected. EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 56 of 96... -
Page 57: Information
5.2.5 Information 5.2.5.1 Contact The page Contact provides contact information. Figure 27: Web Page ‘Contact’ 5.2.5.2 License The page Licence contains all license texts of external software components (see chapter 6). EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 57 of 96... -
Page 58: Encryption
PKI Structure and Certificate Requirements The PKI structure is identical on all participating devices/systems: • Each EtherCAN/3-FD device or host system must have its own certificate and private key. • To establish a secure connection, both communication partners must store the trusted certificate of the other device. -
Page 59: Pki Configuration On The Ethercan/3-Fd
Steps to Establish a Secure Connection: 1. Install a valid PKI on the host system (see next subsection). 2. If neither the EtherCAN/3-FD nor the host system has trusted certificates configured, a connection can still be established. 3. However, without trusted certificates, an unauthorized third party could establish its own connection and access the same information. -
Page 60: Host System
– The self-signed certificate privkey.pem – The corresponding private key Certificate Validity: The generated certificate is valid for 365 days. To specify a different validity period, modify the -days argument accordingly. EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 60 of 96... -
Page 61: Software Licenses
6 Software Licenses NOTIC The software from esd and from third parties used in the EtherCAN/3-FD is subject to the license terms of the respective authors or rights holders. EtherCAN/3-FD may only be used in accordance with these license terms! By using the EtherCAN/3-FD you agree to the terms of these software licenses. -
Page 62: Host Software
The esd EtherCAN SDK is available for Windows and Linux and is included in delivery of the EtherCAN/3-FD. The SDK can also be downloaded from EtherCAN/3-FD product page on our website: https://esd.eu/en/products/ethercan-3-fd The EtherCAN SDK provides the host driver as well as examples and development tools. - Page 63 The folder /trusted/certs contains all certificates of EtherCAN/3-FD gateways that should be able to connect to the EtherCAN client. In contrast to the EtherCAN/3-FD, the EtherCAN client is able to hold multiple trusted certificates. For more information see chapter 5.3.
-
Page 64: Can Sdk
Host Software 7.2 CAN SDK The esd CAN SDK is included in the delivery of the EtherCAN/3-FD. The SDK can also be downloaded from our website: https://esd.eu/en/products/can-sdk Note: ® The CAN SDK is currently only available on Windows Other operating systems are available on request. For detailed information about the driver availability for your operating system, please contact our sales team: sales@esd.eu... -
Page 65: Leds
Flashing LS (long - short) Alternating: 500 ms on - 100 ms off Flashing SL (short - long) Alternating: 100 ms on - 500 ms off Table 1: Status LED flashing code EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 65 of 96... -
Page 66: Ethernet Led Indication
100 Mbit/s No Ethernet link Activity Flashing Ethernet link is established, data is transferred Ethernet link is established but no data is transferred Table 3: Ethernet LED description EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 66 of 96... -
Page 67: Coding Switch
The status of the switches is only detected when the module is switched on. Notes Switching during operation has no effect. Only exception is the Recovery Mode (see chapter 10). Table 4: Coding Switch setting EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 67 of 96... -
Page 68: Factory Reset
Factory Reset 10 Factory Reset The EtherCAN/3-FD gateway includes a Recovery Mode that allows resetting specific settings to factory defaults. Follow these steps to enter and use Recovery Mode: 1. Entering Recovery Mode 1. Set all DIP switches to ‘ON’ before turning on the gateway. -
Page 69: Labels
Labels 11 Labels Figure 31: View with name plate (example) The name plate (Figure 31) shows among others the name, MAC-ID, esd order No. (PN) and the serial number (SN). Name plate Content Name: EtherCAN/3-FD MAC-ID: Individual MAC-ID of the module e.g.: 00:02:27:80:56:2A... -
Page 70: Technical Data
According to ISO 11898-1 Physical CAN Layer High-speed CAN interface according to ISO 11898-2, 10 kbit/s … 8 Mbit/s EtherCAN/3-FD: Electrical isolation Separation by means of optocouplers and DC/DC-converters Voltage over CAN isolation: CAN to EARTH; CAN to Host/System Ground: 1kV DC @ 1s (I <... -
Page 71: Ethernet Port
KMGY with push-in spring connection CAN 0 and 24V 5-pos. TBUS connector InRailBus power supply via (for connection plugs see accessories in order information in InRailBus chapter 19.1) Table 8: Connectors, accessible from outside EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 71 of 96... -
Page 72: Connector Assignments
CiA 106 part 1. INFORMATION esd offers assembled CAN cables according to recommendations of CiA 303 part1 and CiA 106 as accessories, see chapter 19. EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 72 of 96... -
Page 73: And Can0 Via Inrailbus
Use the mounting-rail bus connector (CAN-CBX-TBus) for the connection via the InRailBus, see Order Information InRailBus Accessories (page 87). Read and follow the instructions for connecting power supply and CAN0 signals via InRailBus (see from page 88)! EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 73 of 96... -
Page 74: Ethernet
Shield... RJ45 Case shield is not connected NOTICE esd grants the EU conformity of the product in networks with 100 Mbit/s, if the wiring is carried out with S/FTP (screened shielded twisted pair) cables of category CAT5 or higher. EtherCAN/3-FD Manual Doc. -
Page 75: Power Supply Voltage
Connector Assignments 13.2 24V Power Supply Voltage DANGER The EtherCAN/3-FD is a device of protection class III according to DIN EN 61140 and may only be operated on supply circuits that offer sufficient protection against dangerous voltages. Device socket: Phoenix Contact PCB header MSTBO 2,5/4-G1L-KMGY Cable plug: Phoenix Contact connector FKCT 2,5/4-ST, 5.0 mm pitch,... -
Page 76: Conductor Connection / Conductor Cross Section
2 conductors with same cross section, stranded, 0.5 mm² … 1.5 mm² not allowed TWIN ferrules with plastic sleeve, min./max. Technical Data from Phoenix Contact website, printed circuit board connector, plug component EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 76 of 96... -
Page 77: Correct Wiring Of Electrically Isolated Can Networks
Therefore, the maximum achievable number of nodes, bus lengths and stub lengths may differ from the theoretically possible number! esd has limited its recommendations for CAN wiring to the specifications of ISO 11898-2. A description of the special features of the derived specifications CANopen, ARINC825, DeviceNet, and NMEA2000 is omitted here. -
Page 78: Light Industrial Environment (Single Twisted Pair Cable)
14.2.1 General Rules NOTICE esd grants the EU Conformity of the product if the CAN wiring is carried out with at least single shielded single twisted pair cables that match the requirements of ISO 11898-2. Single shielded double twisted pair cable wiring as described in chapter 14.3 ensures the EU Conformity as well. -
Page 79: Cabling
In principle the CAN bus must be realized in a line. The nodes are connected to the main CAN bus line via short cable stubs. This is normally realised by so called T-connectors. esd offers the CAN-T-Connector (Order No.: C.1311.03) ●... -
Page 80: Heavy Industrial Environment (Double Twisted Pair Cable)
6 Select a working combination of bit rate and cable length. 7 Keep away CAN cables from disturbing sources. If this cannot be avoided, double shielded cables are recommended. Figure 34: CAN wiring for heavy industrial environment EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 80 of 96... -
Page 81: Device Cabling
CAN bus line via short cable stubs. This is usually realised via so called T-connectors. When using esd's CAN-T-Connector order no.: C.1311.03 in heavy industrial environment and with four-wire twisted cables, it must be noted that the shield potential of the conductive DSUB housing is not looped through this type of T-connector. -
Page 82: Electrical Grounding
Table 9: Recommended cable lengths at typical bit rates (with esd-CAN interfaces) Optical couplers are delaying the CAN signals. esd modules typically achieve a wire length of 37 m at 1 Mbit/s within a proper terminated CAN network without impedance disturbances, such as those caused by cable stubs >... -
Page 83: Examples For Can Cables
CiA 106: “Connector pin-assignment recommendations ”. 14.6 Examples for CAN Cables esd recommends the following two-wire and four-wire cable types for CAN network design. These cable types are used by esd for ready-made CAN cables, too. -
Page 84: Can Troubleshooting Guide
If the determined value is higher than 70 Ω, please make sure that: • All CAN_H and CAN_L lines are correctly connected. • Two terminating resistors of 120 Ω each are connected to your CAN network one at each end). EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 84 of 96... -
Page 85: Electrical Grounding
Measure the DC voltage between CAN_L and CAN_GND, measuring point See “Simplified diagram of a CAN network” on previous page . Expected result: The measured voltage should be between 2.0 V and 3.0 V. EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 85 of 96... -
Page 86: Can Transceiver Resistance Test
Another indication of a defective CAN transceiver is a very high deviation of the two measured input resistances (>> 200 %). 15.5 Support by esd If you have followed the troubleshooting steps in this troubleshooting guide and still cannot find a solution to your problem, our support team can help. -
Page 87: Optional Inrailbus
2 conductors with same cross section, stranded, TWIN ferrules with 0.5 mm² ... 0.5 mm² 0.5 mm² ... 0.5 mm² plastic sleeve, min./max. Technical Data from Phoenix Contact website, printed circuit board connector, plug component EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 87 of 96... -
Page 88: Connector Assignment 24V And Can Via Inrailbus (Option)
16.3 Connector Assignment 24V and CAN via InRailBus (Option) DANGER The EtherCAN/3-FD is a device of protection class III according to DIN EN 61140 and may only be operated on supply circuits that offer sufficient protection against dangerous voltages. Connector type:... -
Page 89: Using Inrailbus (Option)
2. Hold the CAN-CBX module tilted backwards at a slight angle and place it on the bus connector so that the DIN rail guideway is placed on the top edge of the mounting rail. Figure 40: Mounting CAN-CBX modules EtherCAN/3-FD Manual Doc.-Nr.: C.2055.21/ Rev. 1.1 Page 89 of 96... -
Page 90: Connecting Via The Inrailbus
Insert the terminal plug from the right into the socket side of the outer mounting rail bus connector of the InRailBus, as shown in Figure 42. Then connect the CAN port and the supply voltage via the terminal plug. EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 90 of 96... -
Page 91: Connection Of The Supply Voltage
Switch off the power supply, before you connect it to the system. DANGER The EtherCAN/3-FD is a device of protection class III according to DIN EN IEC 61140 and may only be operated on supply circuits that offer sufficient protection against dangerous voltages. -
Page 92: Earthing Of The Mounting Rail
Notice INFORMATION It is possible to remove individual devices from the CBX station without interrupting the InRailBus connection, because the contact chain will not be disrupted. EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 92 of 96... -
Page 93: References
(3) CiA 303-3 CANopen LEDs, CANopen Additional Specification V1.4.0 (04.2012), CAN in Automation (CiA) e. V. (4) esd electronics, “NTCAN Part 1: C/C++ Software Design Guide”, Hannover, esd electronics gmbh (download at https://esd.eu/en/products/can-sdk) (5) esd electronics, “NTCAN-API Part 2: Installation, Configuration and Firmware Update”, Hannover, esd electronics gmbh (download at https://esd.eu/en/products/can-sdk) -
Page 94: Declaration Of Conformity
Declaration of Conformity 18 Declaration of Conformity EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1 Page 94 of 96... -
Page 95: Order Information
Table 10: Order information hardware 19.2 Software Type Order No. n.a. CAN software drivers for Windows and Linux on CD-ROM to EtherCAN/3-FD and EtherCAN/3-FD are included in delivery. Higher-Layer Protocols including CD-ROM for CAN CC Applications: CANopen-LCD Windows/Linux C.1101.06 These drivers are available for J1939 Stack for Windows (Object) C.1130.10... -
Page 96: Manuals
C.2002.21 Table 12: Available Manuals Printed Manuals If you need a printout of the manual additionally, please contact our sales team (sales@esd.eu) for a quotation. Printed manuals may be ordered for a fee. EtherCAN/3-FD Manual Doc. No.: C.2055.21 / Rev 1.1...
