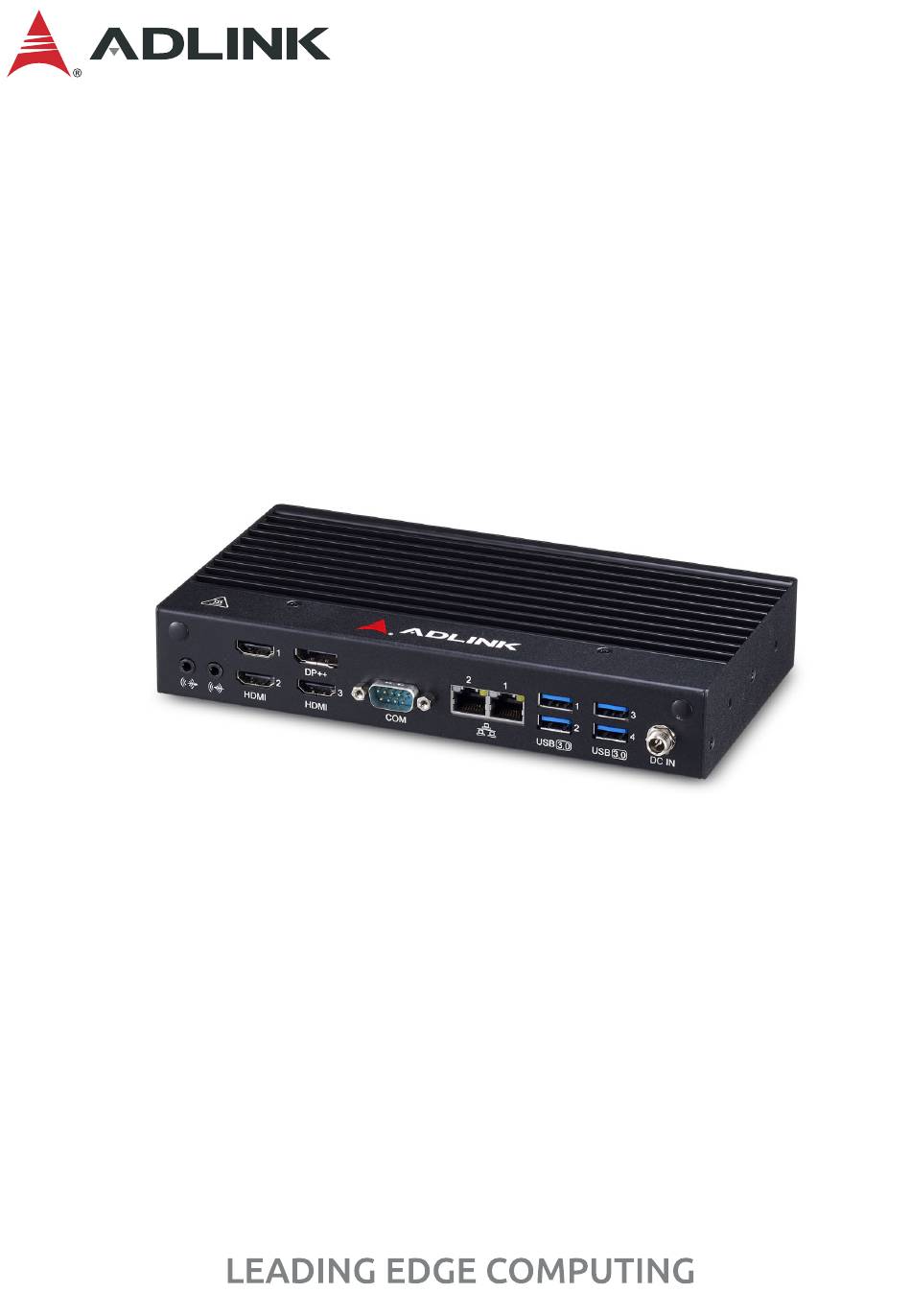

- Page 1 EMP-510 Series Fanless Embedded Computer User’s Manual Manual Rev.: Revision Date: Feb. 20, 2023 Part No: 50M-00097-1000...
-
Page 2: Revision History
Revision History Revision Release Date Description of Change(s) 2023-02-20 Initial release... -
Page 3: Environmental Responsibility
EMP-510 Series Preface Copyright © 2023 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. -
Page 4: California Proposition 65 Warning
California Proposition 65 Warning WARNING: This product can expose you to chemicals including acrylamide, arsenic, benzene, cadmium, Tris(1,3-dichloro-2-propyl) phosphate (TDCPP), 1,4- Dioxane, formaldehyde, lead, DEHP, styrene, DINP, BBP, PVC, and vinyl materials, which are known to the State of California to cause cancer, and acrylamide, benzene, cadmium, lead, mercury, phthalates, toluene, DEHP, DIDP, DnHP, DBP, BBP, PVC, and vinyl materials, which are known to the State of California to cause... -
Page 5: Table Of Contents
EMP-510 Series Table of Contents Preface ..................iii List of Tables................. vii List of Figures ................ ix 1 Introduction ................ 1 Features................1 Optional Accessories ............1 Specifications............... 2 Power Consumption ............4 Block Diagram ..............5 Mechanical Dimensions............6 Front Panel I/O Connectors .......... - Page 6 Important Safety Instructions..........39 Consignes de Sécurité Importante ........41 EMC Compliance ..............44 Getting Service ..............45...
-
Page 7: List Of Tables
EMP-510 Series List of Tables Table 1-1: EMP-510 Series Specifications ........2 Table 1-2: Power Consumption ........... 4 Table 1-3: Front Panel I/O Connector Legend......7 Table 1-4: Maximum Number of Independent Displays....8 Table 1-5: Maximum Display Resolution ........9 Table 1-6: DisplayPort Pin Definition ......... - Page 8 This page intentionally left blank. viii List of Tables...
-
Page 9: List Of Figures
EMP-510 Series List of Figures Figure 1-1: EMP-510 Series Block Diagram ........5 Figure 1-2: Top View................6 Figure 1-3: Front View................ 6 Figure 1-4: Front Panel I/O Connectors ..........7 Figure 1-5: DisplayPort Connector Pin Definition......10 Figure 1-6: HDMI Connector Pin Definition........11 Figure 1-7: COM Port Pin Definition.......... - Page 10 This page intentionally left blank. List of Figures...
-
Page 11: Introduction
EMP-510 Series Introduction The EMP-510 Series multi-screen media player/embedded com- puters feature a powerful and energy-efficient 11th Gen. Intel® processor, optional Microsoft® Windows® or Linux® Ubuntu oper- ating system, and 4 video-out connectors in a compact, durable and fanless package, ideal for high-quality and optimal display experiences in advertising, digital menu board, and digital bill- board applications. -
Page 12: Specifications
3x HDMI 2.0b, max. resolution up to 3840x2160@60Hz Ethernet 2x GbE RJ45 Serial Ports 1x DB9 COM (RS-232) USB Ports 4x USB 3.0 Audio Line-out, Line-in Security fTPM DC input 12V DC Antennas 2x Antenna holes for SMA-type antennas (WiFi/BT/LTE) Table 1-1: EMP-510 Series Specifications... - Page 13 95% @ 40°C (104°F) (non-condensing) Vibration Operating: 3 Grms, 5-500 Hz, 3 axes (w/ SSD) Shock Operating: 50 Grms, half sine 11ms duration (w/ SSD) Contact ±4KV, Air ±8KV EN55032/ 55035, CE, FCC Class B Safety UL/cUL, CB Table 1-1: EMP-510 Series Specifications...
-
Page 14: Power Consumption
1.4 Power Consumption Power consumption is based on lab data in which 12V DC is applied and current is measured by the DC power supply. The power consumption (W) is calculated as the product of applied voltage (V) and the current (A). Platforms tested for this data have available external I/O interfaces and are attached to supported devices such as keyboard/mouse, USB dummy load, COM loop- back, LAN port, and with an internal SSD driver installed. -
Page 15: Block Diagram
USB3.0 x4 USB2.0 TCP3 DP++1.4 eSPI to LPC BIOS eSPI eSPI ECE1200 MX25L25673GM DB40 Port 80 Audio codec Conn Debug connecter 92HD68E Line-In Intel® Core™ i5/i3 NCT5104 Conn Intel® Celeron® LPC to UART Line-Out Figure 1-1: EMP-510 Series Block Diagram... -
Page 16: Mechanical Dimensions
1.6 Mechanical Dimensions All dimensions shown in millimeters (mm). NOTE: NOTE: 5.20 Figure 1-2: Top View Figure 1-3: Front View... -
Page 17: Front Panel I/O Connectors
EMP-510 Series 1.7 Front Panel I/O Connectors The EMP-510 Series provides the following external I/O connec- tors. Figure 1-4: Front Panel I/O Connectors A Wireless antenna holes B 3x HDMI 2.0b C DP 1.4 D COM RS-232 2x LAN 4x USB 3.0 Gen1 G 12V DC input jack H Line-out 3.5mm audio jack... -
Page 18: Display Connections
1.7.2 Line-in/Line-out Audio Connectors The EMP-510 Series implements Intel® High Definition Audio with a Tempo Semiconductor 92HD68E Series Audio CODEC, with support up to 24-bit, 192 KHz sample rate high quality headphone output and microphone input. 1.7.3 Display Connections The EMP-510 Series supports 4 independent display output ports under Windows 10 and Ubuntu Linux, and 2 independent display output ports in the UEFI shell, as shown in the following table. -
Page 19: Table 1-5: Maximum Display Resolution
EMP-510 Series The maximum display resolution depends on the total number and type of display connections, as shown in the following table. Number of Connected Maximum Connector Port Displays Resolution 7680 x 4320 (DP or 1 HDMI) HDMI port 1 or 2 or 3 3840 x 2160... -
Page 20: Table 1-6: Displayport Pin Definition
DisplayPort Connector One DisplayPort connector, supporting the DP 1.4 standard speci- fication, supports resolutions up to 7680 x 4320 at 60Hz. Figure 1-5: DisplayPort Connector Pin Definition Signal Signal CON_DDI1_TX0_P CON_DDI1_TX3_N CON_DDI1_TX0_N CON_DDI1_DDC_AUX_SEL CON_DDI1_TX1_P CON_DDI1_CONFIG_2 CON_DDI1_I2CCLK_AUX_P CON_DDI1_TX1_N CON_DDI1_TX2_P CON_DDI1_I2CCLK_AUX_N CON_DDI1_HPD CON_DDI1_TX2_N CON_DDI1_TX3_P P_+3V3_DP1... -
Page 21: Table 1-7: Hdmi Connector Pin Definition
EMP-510 Series HDMI Connector The HDMI connector supports HDMI 2.0b. Figure 1-6: HDMI Connector Pin Definition Pin # Signal Pin # Signal TMDS Data2+ TMDS Data2 Shield TMDS Data2– TMDS Data1+ TMDS Data1 Shield TMDS Data1– TMDS Data0+ TMDS Data0 Shield TMDS Data0–... -
Page 22: Com Port Connector
1.7.4 COM Port Connector The COM port is a D-sub 9-pin connector supporting RS-232 mode. Figure 1-7: COM Port Pin Definition Signal RS-232 COM1_DCD-L_CN DCD# COM1_RXD_CN COM1_TXD_CN COM1_DTR-L_CN DTR# COM1_DSR-L_CN DSR# COM1_RTS-L_CN RTS# COM1_CTS-L_CN CTS# COM1_RI-L_CN Table 1-8: COM Port Pin Definition... -
Page 23: Gigabit Ethernet Port
EMP-510 Series 1.7.5 Gigabit Ethernet Port Two Gigabit Intel® Ethernet Controller I210 Series RJ45 connec- tors support up to 1000/100/10 Mbit/s connections. Speed Activity Figure 1-8: Ethernet Port and LEDs 10BASE-T/100BASE-TX 1000BASE-T TX0+ TX0- TX1+ TX1- TX2+ TX2- TX3+ TX3-... -
Page 24: Usb 3.0 Connector
1.7.6 USB 3.0 Connector Four USB 3.0 Gen1 (5 Gbps with 1600 mA power and OCP pro- tection) Type-A connectors are provided compatible with Super- Speed, Hi-Speed, Full-speed, and Low-speed USB devices suitable for USB peripherals. Figure 1-9: USB 3.0 Type-A Connector Pin Definition Pin No. -
Page 25: Table 1-12: Dc-In Power Connector Pin Definitions
EMP-510 Series 1.7.7 DC-in Power Connector DC IN Figure 1-10: DC-in Power Connector Pin Function Description Power Power input Ground Reference ground Table 1-12: DC-in Power Connector Pin Definitions 1.7.8 Line-in/Line-out 3.5mm Audio Jack Connector Double-stacked ø3.5mm stereo audio jacks provide Line-in and Line-out adio connections. -
Page 26: Rear Panel
1.8 Rear Panel The EMP-510 Series provides the following buttons and LED on the rear panel. J K L Figure 1-12: Rear Panel Item Function Description Power Button Press to turn system on/off. Power off: off Power LED Power on: on... -
Page 27: Getting Started
EMP-510 Series Getting Started 2.1 Packing List Before unpacking, check the shipping carton for any damage. If the shipping carton and/or contents are damaged, inform your dealer immediately. Retain the shipping carton and packing mate- rials for inspection. Obtain authorization from your dealer before returning any product to ADLINK. -
Page 28: Mounting
2.2 Mounting 2.2.1 Install the Wall-Mount Brackets Use the 4 footpad screws included in the package contents to attach the 2 wall-mount brackets to the chassis with 6kgf/cm of torque. -
Page 29: Mounting The Device
EMP-510 Series 2.2.2 Mounting the Device Mount the device to a wall using the 4 keyhole openings indicated with M4 8mm screws torqued to 6kgf/cm according to the spacing dimensions of the holes in the bracket as shown in Figure 1-2. -
Page 30: Thermal Considerations
2.3 Thermal Considerations System placement recommendation The recommended system space is 500x456x120mm , with an airflow speed of 0.6m/s for better thermal dissipation performance. Refer to the figures below for the recommended minimum system clearances. -
Page 31: Bios Setup
EMP-510 Series BIOS Setup The Basic Input/Output System (BIOS) is a program that provides a basic level of communication between the processor and peripherals. In addition, the BIOS also contains codes for various advanced features applied to the EMP-510. The BIOS setup program includes menus for configuring settings and enabling features of the EMP-510. -
Page 32: Menu Structure
3.2 Menu Structure This section presents the six primary menus of the BIOS Setup Utility. Use the following tables as a quick reference for the contents of the BIOS Setup Utility. The remainder of this chapter describe the submenus and options for each menu item. The default settings are presented in bold, and the function of each setting is described in the right hand column of the table. -
Page 33: Main Menu
EMP-510 Series 3.3 Main Menu This menu provides read-only information about your system and also allows you to set the System Date and Time. Refer to the tables below for details of the submenus and settings. 3.3.1 Main > BIOS Information... -
Page 34: Advanced Menu
3.4 Advanced Menu This menu contains the settings for most of the user interfaces in the system. 3.4.1 Advanced > CPU Configuration Feature Options Description Type Info only Displays the Processor Type Info only Displays the Processor ID Speed Info only Displays the Processor Speed. - Page 35 EMP-510 Series 3.4.2 Advanced > Power & Performance > CPU - Power Management Control Feature Options Description Intel(R) Disabled Allows more than two frequency ranges to be SpeedStep(tm) Enabled supported. Turbo Mode Disabled Enables/Disables processor Turbo Mode Enabled (requires EMTTM enabled). AUTO means enabled.
- Page 36 3.4.3 Advanced > Thermal Configuration Feature Options Description Enable All Thermal Disabled Enables: Functions Enabled - Memory Thermal Management - Active Trip Points - Critical Trip Points Set to disabled for manual configuration. 3.4.4 Advanced > OverClocking Performance Menu Feature Options Description WDT Enable...
-
Page 37: Console Redirection Settings
EMP-510 Series 3.4.6 Advanced > Serial Port Console Redirection Feature Options Description Console Redirection Disabled Enables/Disables Console Redirection Enabled Console Sub-Menu Redirection Settings ► Terminal Type VT100 ANSI: Extended ASCII char set. VT100+ - VT100: ASCII char set. VT-UTF8 - VT100+: Extends VT100 to support ANSI color, function keys, etc. - Page 38 Feature Options Description Flow Control* None Flow control can prevent data loss from Hardware buffer overflow. When sending data, if the RTS/CTS receiving buffers are full, a 'stop' signal can be sent to stop the data flow. Once the buffers are empty, a 'start' signal can be sent to re-start the flow.
- Page 39 EMP-510 Series Feature Options Description USB transfer time-out 1 sec The time-out value for Control, Bulk, and 5 sec Interrupt transfers. 10 sec 20 sec Device reset time-out 10 sec USB mass storage device Start Unit 20 sec command time-out.
- Page 40 Feature Options Description PXE boot wait time [Max- Wait time in seconds to press ESC key to Value, Min- abort PXE boot. Use either +/- or numeric Value, keys to set the value. Step- Value] = [0x05, 0x00, 0x01] Media detect count [Max- Number of times the presence of media will Value, Min-...
- Page 41 EMP-510 Series Feature Options Description Create from file ► Sub-Menu Created RAM disk list: Remove selected RAM disk(s). 3.4.11 Advanced > Intel(R) I210 Gigabit Network Connec- tion – 00:30:64:31:CF:1B Feature Options Description NIC Configuration ► Sub-Menu Blink LEDs Blink LEDs for a duration up to 15 seconds.
- Page 42 Feature Options Description Chip Type Intel I210 PCI Device ID 1539 PCI Address 02:00:00 Link Status [Disconnected] MAC address 00:30:64:34:CF:1C...
-
Page 43: Chipset
EMP-510 Series 3.5 Chipset 3.5.1 Chipset > System Agent (SA) Configuration Feature Options Description VT-d Supported Memory Configuration ► Sub-Menu Memory RC Version Info only Memory Speed Info only Memory Timings Info only (tCL-tRCD-tRP-tRAS) Controller 0 Channel 0 Slot 0 Info only... -
Page 44: Security
3.6 Security Password Description If ONLY the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User's password is set, then this is a power on password and must be entered to boot or enter Setup. -
Page 45: Boot
EMP-510 Series 3.7 Boot 3.7.1 Boot > Boot Configuration Feature Options Description Setup Prompt Timeout [Max-Value, Number of seconds to wait for setup Min-Value, activation key. 65535 (0xFFFF) Step-Value] = means indefinite waiting. [0xFFFF, 0x0001, 0x0001] Bootup NumLock State On Selects the keyboard NumLock state. -
Page 46: Save & Exit
3.8 Save & Exit Feature Options Description Save Options Info only Save Changes and Exit Exits system setup after saving the changes. Discard Changes and Exit Exits system setup without saving any changes. Save Changes and Reset Resets the system after saving the changes. -
Page 47: Driver & Application Installation
EMP-510 Series Driver & Application Installation After installing the operating system, all related drivers must be installed for the system to function properly. This section describes the drivers needed for Windows operating systems and the proce- dures to install them. For other OS support, contact ADLINK for further information. - Page 48 This page intentionally left blank.
-
Page 49: Important Safety Instructions
EMP-510 Series Important Safety Instructions For user safety, please read and follow all instructions, Warnings, Cautions, and Notes marked in this manual and on the associated device before handling/operating the device, to avoid injury or damage. Read these safety instructions carefully. - Page 50 A Lithium-type battery may be provided for uninterrupted backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type; please dispose of used batteries appropriately. CAUTION: The device must be serviced by authorized technicians when: ...
-
Page 51: Consignes De Sécurité Importante
EMP-510 Series Consignes de Sécurité Importante Pour la sécurité de l'utilisateur, veuillez lire et suivre toutes les instructions, avertissements, mises en garde et notes marqués dans ce manuel et sur l'appareil associé avant de manipuler/ d'utiliser l'appareil, afin d'éviter toute blessure ou tout dommage. - Page 52 Installez/fixez et utilisez l'appareil uniquement sur des surfaces stables et/ou sur les fixations recommandées. L'ordinateur Smart Touch est alimenté par un adapta- teur ou une source CC. Veuillez vous assurer que l'adaptateur ou la source CC doit conserver la connexion à...
- Page 53 EMP-510 Series Il est recommandé d'installer l'appareil uniquement dans une salle de serveurs ou une salle informatique où l'accès est: Réservé au personnel de service qualifié ou aux utilisa- teurs familiarisés avec les restrictions appliquées à l'emplacement, aux raisons de ces restrictions et toutes les précautions requises...
-
Page 54: Fcc Warning
EMC Compliance CE Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. FCC Warning This equipment has been tested and found to comply with the lim- its for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 55: Getting Service
San Jose, CA 95119-1208, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-600-1189 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com ADLINK Technology GmbH Hans-Thoma-Straße 11...
