1SS 4, SECTION
502-600-100
(1} Remote
faceplate,
mat,
and bezel
assembly
(paragraph
2.04).
(2)
Remove
housing
(paragraph
2.10).
(3)
Install
lower
bezel 814455069
(P-44 E506).
(4)
Secure
\vith
997126610
bezel
clip (Fig.
4).
(5)
Place
upper
bezel
814455051
(P-44 E505)
on
housing.
(6)
Turn
housing
over
and
place
814455077
(P-44 E507) retainer
on tab of bezel (Fig.
4).
(7)
Place
840993778
bezel
spring
over
retainer
(Fig.
4).
2.09
To place
key designation
strips
or remove
the telephone
set housing
for component
or
wiring
changes,
the faceplate
and mat
(early
sets)
must
be removed.
C.
Housings
2.10
Remove
the telephone
set housing
as follows.
(1)
Remove
faceplate
and mat (paragraphs
2.02,
2.04 or 2.06).
(2)
Loosen two screws at rear of housing
( Fig. 6).
(3)
Raise
rear
of
housing,
move
forward
to
disengage
front
mounting
hooks.
and
lift
off.
(4)
When
replacing
housing
reverse
procedure.
D.
Keys
2.11
Double,
tripIe,
and
four
letter
coded
~ALL
DIRECTOR
telephone
sets
can be equipped
with 635-type
and 658A keys also 76A lamp
socket
and/or
679A (MD)
transmitter.
Single
and
early
production
double
letter
coded
sets
~~ere equipped
with
590- or 650-series
keys,
and
61'i'A ( MDJ key
or 667B (MD) transmitter.
Installation
and electrical
connection
of key
modules
for current
and
early
production
sets
differ.
2.12
Remove
the 590- and 650-series
key module
from
telephone
set as follo~vs.
(1)
Remove
set housing
(paragraph
2.10}
REAR

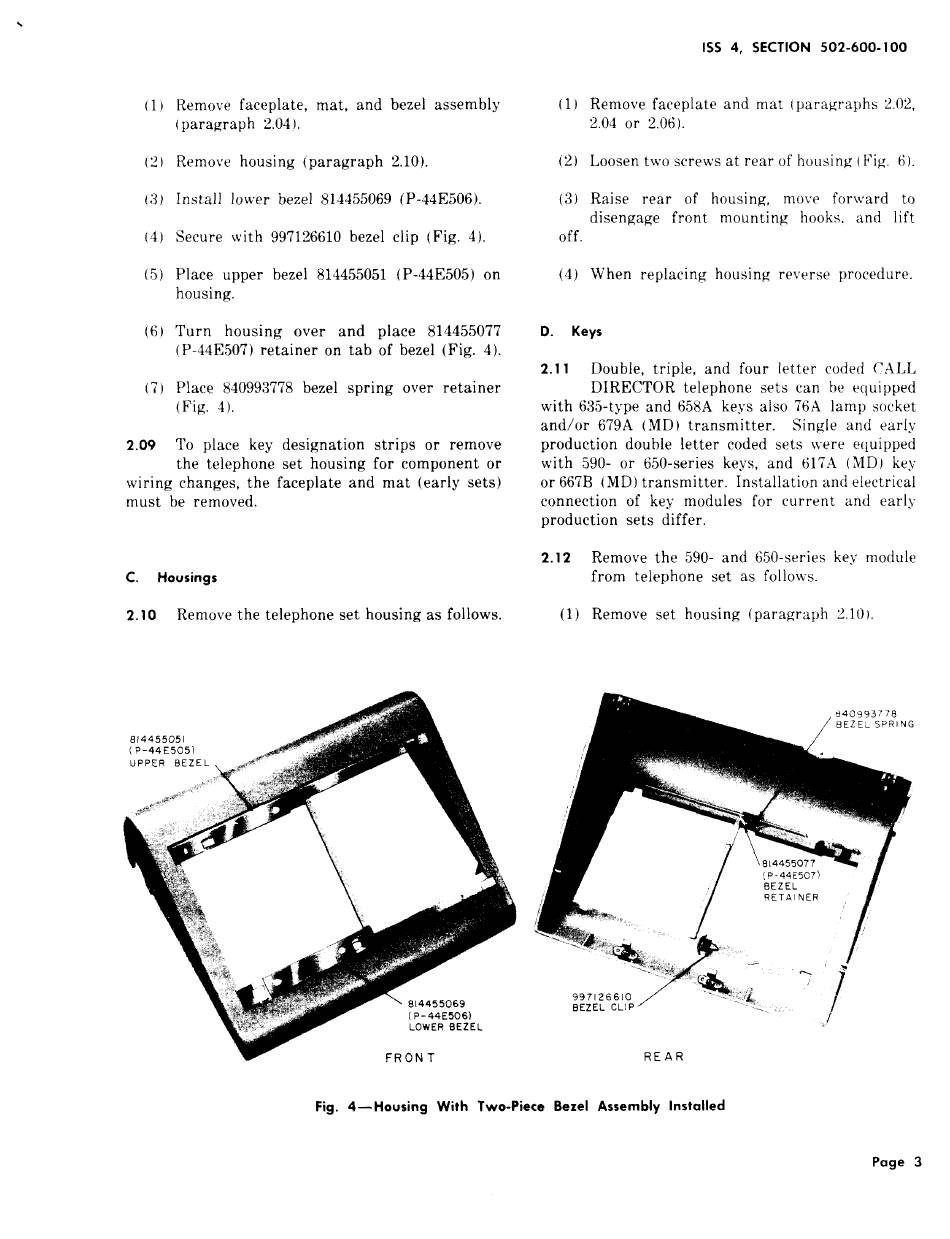

Fig. 4—Housing
With
Two-Piece
Bezel Assembly
Installed
Page
3
