SECTION
502-600-100

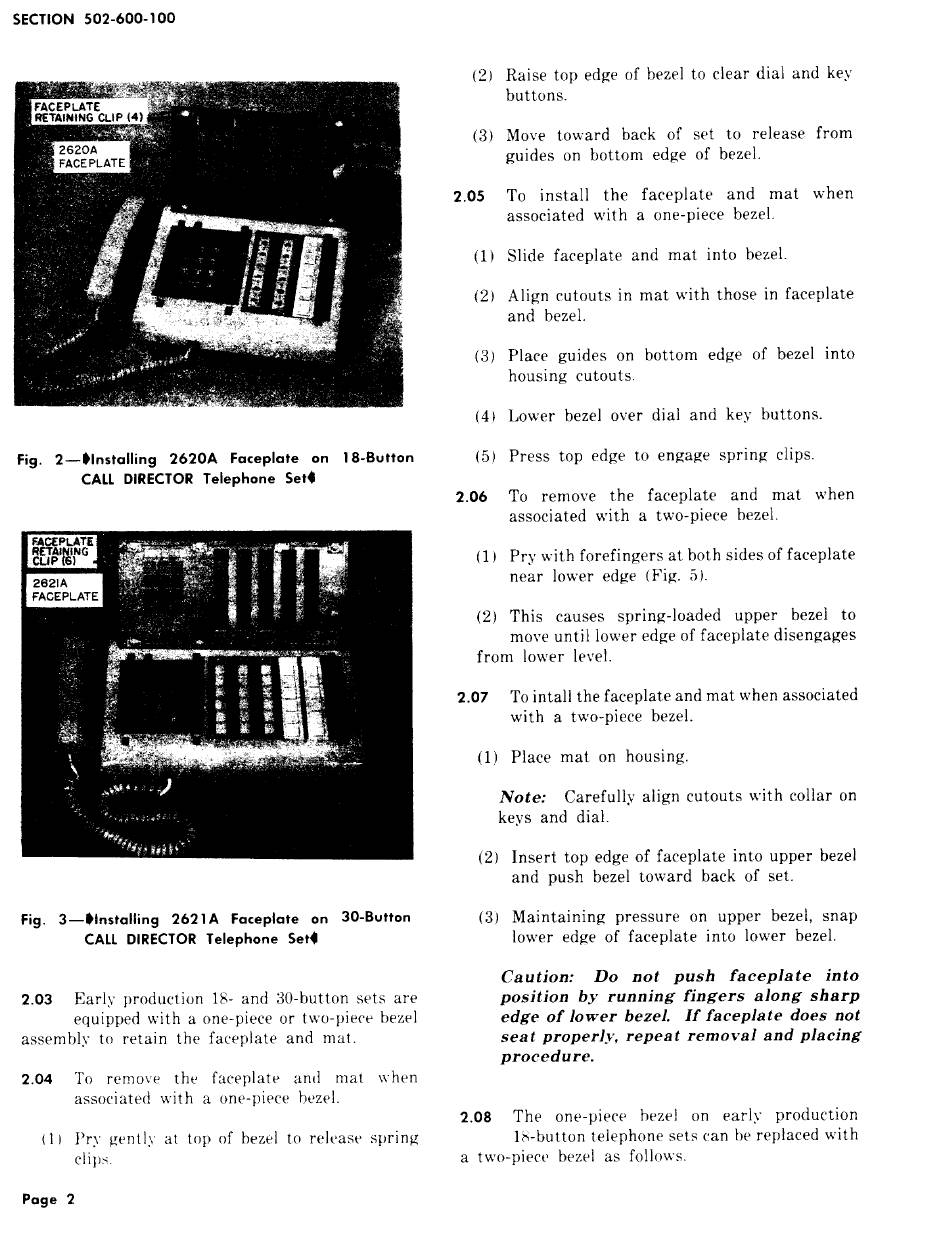

Fig.
3—$lnstalling
2621A
Faceplate
on
30-Button
CALL DIRECTOR Telephone
Set~
2.03
Early
production
18- and 30-button
sets are
equipped
with a one-piece
or tlvo-piece
bezel
assembly
to retain
the faceplate
and
mat.
2.04
To
remo~e
the
faceplate
anti
ma!
\vhen
associated
with
a one-piece
bezel.
( 1 ) I'r)
~entlj" at top of bezel to relc'ase
spring
Cli]ls.
(~)
Raise
top edge of bezel to clear
dial and key
buttons.
(3)
Mo\'e
toward
back
of set
to
release
from
guides
on bottom
edge
of bezel.
2.05
To
install
the
faceplate
and
mat
w-hen
associated
with
a one-piece
bezel.
(1)
Slide
faceplate
and
mat
into
bezel.
(2)
Align
cutouts
in mat with those
in facedate
and
bezel.
(3)
Place
guides
on bottom
edge
of bezel
into
housing
cutouts.
(4)
Lower
bezel
over
dial
and
key buttons.
(5)
Press
top edge
to engage
spring
clips.
2.06
To
remove
the
faceplate
and
mat
when
associated
with
a two-piece
bezel.
(1)
Pry with forefingers
at both sides of faceplate
near
lower
edge
(Fig.
5).
(2)
This
causes
spring-loaded
upper
bezel
to
move until lower edge of faceplate
disengages
from
lower
lel'el.
2.07
To intall the faceplate
and mat when associated
with
a two-piece
bezel.
(1)
Place
mat
on housing.
Note:
Carefully
align cutouts
with collar
on
keys
and
dial.
(2)
Insert
top edge of faceplate
into upper
bezel
and
push
bezel
toward
back
of set.
(3)
Maintaining
pressure
on upper
bezel,
snap
lower
edge of faceplate
into
lower
bezel.
Caution:
Do
not
push
faceplate
into
position
by running fingers
along sharp
edge of 10wer bezel.
Zf facepla te does not
sea t properly,
repeat removal
and placing
procedure.
2.08
The
on+piece
beze!
on
ear]y
production
It+-button
telephone
sets can be replaced
with
a two-piect'
bezel
as follows.
Page
2
