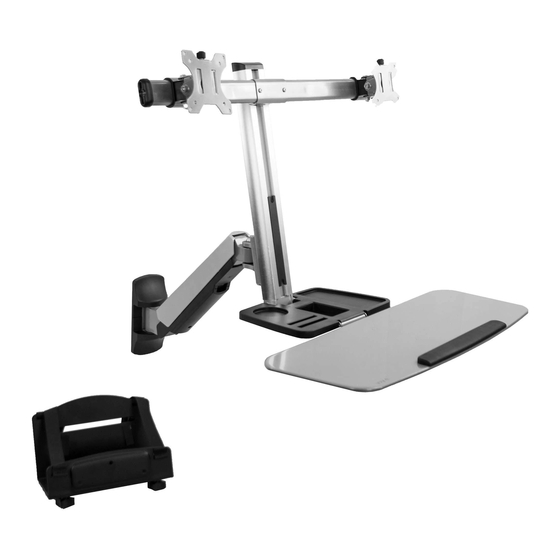

Sit to Stand Dual Monitor Wall Mount Workstation -
Silver
Instruction Manual
SKU: STAND-SIT2W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-sit2w
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-SIT2W
Summary of Contents for Vivo STAND-SIT2W
- Page 1 Sit to Stand Dual Monitor Wall Mount Workstation - Silver Instruction Manual SKU: STAND-SIT2W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-sit2w GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 2.2-13.2lbs Failure to do so may result in serious injury. (1-6kg) PER SCREEN Phillips Drill Screwdriver Pencil ASSEMBLY STEPS STEP 1 OPTION A: Wood Stud Installation Hold arm (A) to wall where stud is located and mark top hole location with a pencil. - Page 4 STEP 2 Slide decorative covers (E) on arm (A). STEP 3 Remove knobs and slide VESA plates off from brackets. Set parts aside for later use. STEP 4 Remove two lower screws from back of pole (B) and set aside. Attach tray (C) to pole using M8x24 bolts (F), and tighten with 6mm Allen wrench (H).
- Page 5 STEP 5 Remove front bracket from arm mount at top of pole (B) using 4mm Allen wrench (G) as shown. Set parts aside. STEP 6 Attach monitor arm (D) using previously removed bracket and screws, making sure adjustment screws on monitor brackets are facing up. Tighten with 4mm Allen wrench (G).
- Page 6 STEP 8 OPTION A: Flat Back Monitor For flat back monitors, attach VESA plates using 12mm screws (M-A or M-B) with washers (M-E). OPTION B: Curved Back Monitor For curved or recessed back monitors, use 16mm screws (M-C or M-D) with washers (M-E) and spacers (M-F).
- Page 7 STEP 11 Adjust height of monitors using knob on back of pole (B). Correct individual monitor height by turning the knob on each monitor bracket as shown. Use 6mm Allen wrench (H) if knobs are too stiff to turn by hand.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! AVG. RESOLUTION TIME : 5M 4S 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
