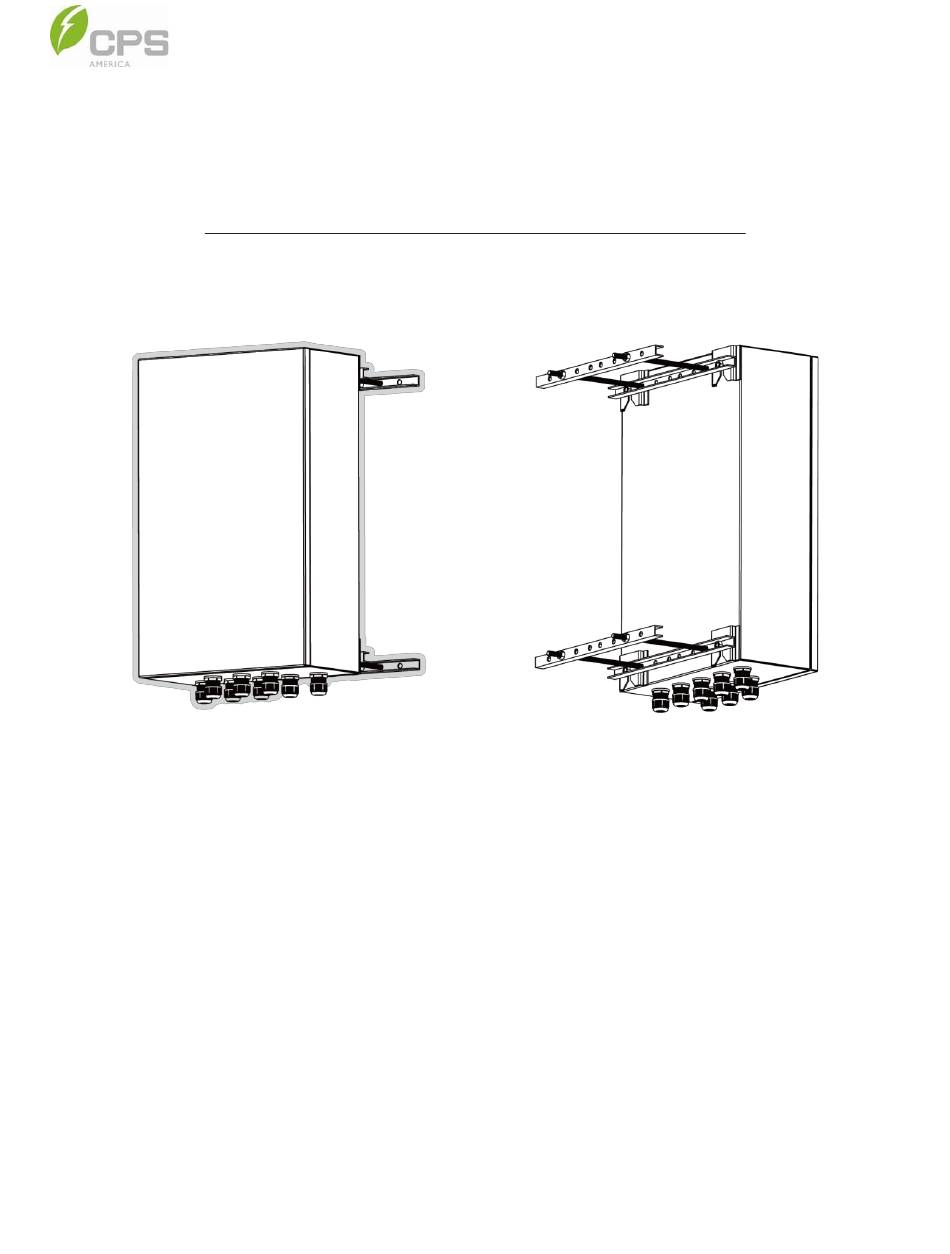

- Page 1 FlexOM Meter Installation and Operation Manual CHINT POWER SYSTEMS AMERICA CO. Revision 1.5 – March 2025...
-
Page 2: Table Of Contents
3.4.2 Installation Instructions ............................19 Electrical Installation ................................20 CT Selection ..................................21 Using the CPS Connect Pro App............................22 Activate the FlexOM Gateway ..........................22 Scan Modbus Devices .............................. 26 Complete Activation ..............................29 Recovery / Reboot ..............................30 Troubleshooting ................................ -
Page 3: Before You Start
Audience The information in Sections 2 Overview, 6 Using the CPS Connect Pro App, and 7 CPS Warranty Policy is intended for the owner and operator of the inverter and does not require any special training or qualifications. The information in Sections 3 Hardware Installation, 4 Electrical Installation, and 5 CT Selection is intended for qualified personnel only. -
Page 4: Safety Precautions
Before performing operations, read through this manual and follow all precautions included to prevent accidents. The safety precautions provided in this document do NOT cover all possible safety precautions. CPS is not liable for any consequence caused by the violation of the safety operation regulations and design, production, and usage standards. -
Page 5: Overview
2 Overview Product Specifications RS485 Interface Number of ports 1 (A: 6-pin connector or B: 5-pole terminal block) Protocol Modbus RTU Modbus RTU mode Client Terminator for RS485 120 ohms Isolation 2.5 kV AUX Interface Number of ports 1 (3-pole terminal block) Protocol Modbus RTU Modbus RTU mode... - Page 6 CAN Interface Isolation 2 kV (built-in) Number of ports 1 (one) 3-pole terminal block Signals CAN_L, CAN_H, CAN Signal GND Terminator 120 ohms (configurable) Analog Inputs Number of channels Connector Screw-fastened Euroblock terminal I/O type Differential I/O mode Current Resolution 16 bits Input range 4-20 mA...
- Page 7 WLAN Interface WLAN standard 802.11 a/b/g/n Frequency band 2.4 GHz Wireless security WEP, WPA/WPA2 Antenna External, 2/2 dBi Antenna connector 1, SMA female Bluetooth Interface Standard BLE 4.2 Antenna Bult-in with Wi-Fi antenna Power Parameters Input voltage 208-600 V AC-DC power 12 V output, 40 W Environmental Limits Operating temperature...
-
Page 8: Dimensions And Interfaces
Dimensions and Interfaces... -
Page 9: Flexom Meter Diagram
FlexOM Meter Diagram... -
Page 10: Typical System Design
RS485 cable to the AUX port to enable the equivalent of a direct transmission with the daisy chain. The gateway within the FlexOM Meter can be used as a Modbus / TCP server to connect to an optional third-party SCADA system (supplied by others) and to forward various commands to the daisy chain. -
Page 11: Internet Interfaces
AT&T, T-Mobile, and Verizon networks. The standard 4G cellular data plan period is five (5) years. After five years, the customer will be locked out of their account and must contact CPS to purchase an additional five years of portal access. -
Page 12: Hardware Installation
AC current-sending cables, and communication cables. DANGER: High voltage can cause electric shock and serious injuries during FlexOM Meter operation. Do NOT touch components such as AC cables, circuit breakers, and connectors while the meter is energized. Required Tools and Materials Ensure that the FlexOM Meter accessory kit includes the following items: •... -
Page 13: Installation Methods
Installation Methods NOTICE: The two diagrams shown below demonstrate the recommended installation method; the materials shown in these figures must be prepared by the installer. NOTE: Tighten M8 hardware to 24 in-lb (2.71 N⋅m) when installing. - Page 14 NOTE: Tighten M8 hardware to 24 in-lb (2.71 N⋅m) when installing; wall anchors and the screw that fastens the chassis to the bracket need only be tightened until snug, not to a specific torque value.
-
Page 15: Wall-Mounting
3.3.1 Wall-Mounting NOTE: Tighten M8 hardware to 24 in-lb (2.71 N⋅m) when installing; wall anchors and the screw that fastens the chassis to the bracket need only be tightened until snug, not to a specific torque value. -
Page 16: Wall-Mounting On Solid Concrete Walls
3.3.2 Wall-Mounting on Solid Concrete Walls NOTE: Tighten M8 hardware to 24 in-lb (2.71 N⋅m) when installing; wall anchors and the screw that fastens the chassis to the bracket need only be tightened until snug, not to a specific torque value. -
Page 17: Pole-Mounting
3.3.3 Pole-Mounting NOTE: Tighten M8 hardware to 24 in-lb (2.71 N⋅m) when installing; the screw that fastens the chassis to the bracket needs only to be tightened until snug, not to a specific torque value. -
Page 18: Cellular Antenna Installation (Flexom-4G Only)
4G Cellular Antenna Installation (FlexOM-4G Only) 3.4.1 FlexOM-4G Accessory Kit In addition to the standard accessories, the FlexOM-4G Meter accessory kit includes: • One (1) IP65 4G cellular antenna • One (1) antenna coaxial cable (3 m) • One (1) cable gland •... -
Page 19: Installation Instructions
3.4.2 Installation Instructions Screw one end of the antenna cable into the cable connector of the gateway (applicable to FlexOM-4G model only). Pass the SMA end of the coaxial antenna cable through the disassembled cable gland parts in sequence (see numbering in diagram), then tighten the cable glands again. -
Page 20: Electrical Installation
4 Electrical Installation Using the diagram below as a guide: Connect the AC cable to the corresponding position of the circuit breaker. Connect the RS485 cable of the inverter (daisy chain) to the 4/5/6 terminal block. NOTE: The FlexOM Gateway uses a two-wire Modbus RS485 multipoint serial line system. -
Page 21: Ct Selection
5 CT Selection The FlexOM Meter and FlexOM-4G Meter include a WattNode WND-WR-MB meter. To ensure the correct CTs are selected for the specific project application, the following guidelines are recommended: • The current transducer / transformers can be purchased from Continental Control Systems, LLC or from any other third- party CT vendor. -
Page 22: Using The Cps Connect Pro App
No Wi-Fi dongle is required to interface or activate the FlexOM Gateway. The gateway will connect to the Internet via Ethernet or 4G, and the gateway will connect to the CPS Connect Pro app via Bluetooth. Open the CPS Connect Pro app. - Page 23 Select the gateway device matching the gateway SN.
- Page 24 Check that the gateway status is Online. During the activation process, the gateway will attempt to connect to the Internet via Ethernet or 4G, depending on the model, after it turns on. If the status is displayed as Online, the gateway is connected to the target server and FlexOM portal.
- Page 25 To manually adjust the connection settings: Tap Internet Settings. The Ethernet default setting is DHCP; this can be disabled to manually enter the Ethernet IP information if necessary. To do so, tap Ethernet in the Internet Settings Interface to access the Ethernet settings. Tap Save to save any changes made.
-
Page 26: Scan Modbus Devices
Scan Modbus Devices To scan devices in the connected daisy chain, tap Device Settings. The gateway is configured with a default Modbus ID range of 1-32. To manually edit the Modbus ID range: Tap More to go to Settings. - Page 27 Tap Comm-ID Discovery Range. The existing Modbus ID must be deleted by tapping the minus sign button ( - ) before a new ID can be assigned.
- Page 28 A unique Modbus ID must be assigned to each inverter. After all Modbus devices have been found and identified, tap Save in the upper right corner. After scanning, a device list will appear with the default ID. The user can either rescan the target IDs individually in the list, or scan the daisy chain in full.
-
Page 29: Complete Activation
Complete Activation After configuring the Modbus settings, users can enter the site name, gateway name, country, and time zone. Tap Save to save this site information and complete the installation process. -
Page 30: Recovery / Reboot
Ensure that the RS485 cable is wired correctly. If the RS485 length is longer than 3281 ft (1000 m), ensure the dip switch in the last inverter is turned ON. Scan again, and if still no devices appear, contact CPS Customer Service. -
Page 31: Cps Warranty Policy
The warranty policy of this product is specified in the contract; otherwise, the standard warranty is two (2) years. For warranty terms, refer to the CPS America accessories warranty policy in place at time of purchase. If your product requires further troubleshooting or warranty service, contact your installer or dealer. If you are unable to contact your installer or dealer, or they are unable to provide service, contact CPS Customer Service.
